Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1100mm*800mm
-
Brand Name:
-
Jinko
-
Application:
-
Solar Power System
-

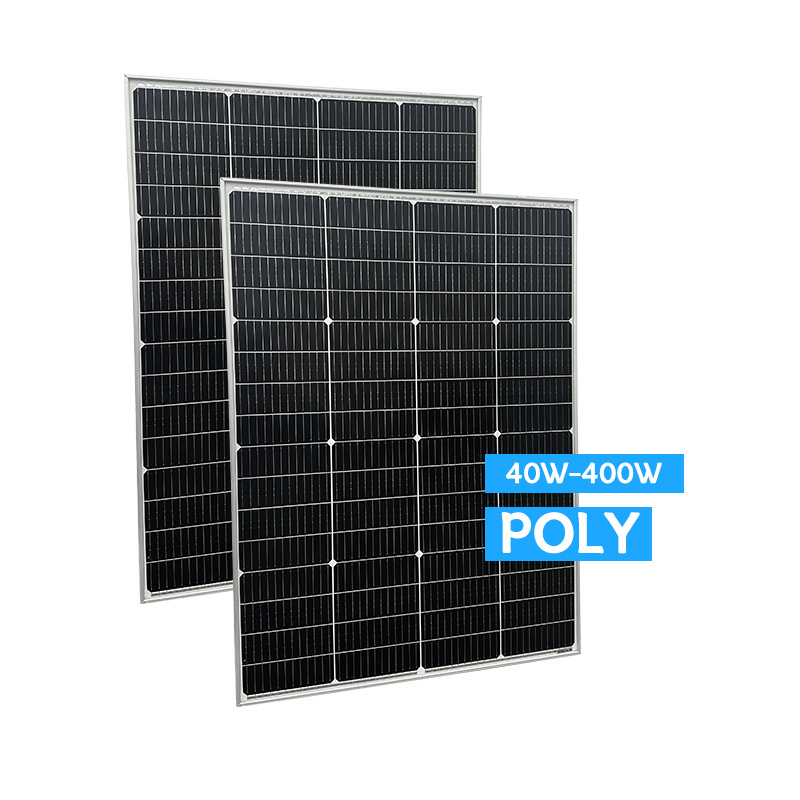

Product name:
-
Sola Panel
-
Certificate:
-
ISO
-
Keyword:
-
Monocrystalin Solar Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Rated
-
Weight:
-
28kg
-
Cell Type:
-
N-type 182*91mm
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, N-TYPE, TOPCON, BIPV, Flexible, Overlapping, Foldable
-
Warranty:
-
3 months
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1100mm*800mm
-
Brand Name:
-
Jinko
-
Application:
-
Solar Power System
-
Product name:
-
Sola Panel
-
Certificate:
-
ISO
-
Keyword:
-
Monocrystalin Solar Panel
-
Solar cell:
-
Monocrystalline Silicon Cells
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP67 Rated
-
Weight:
-
28kg
-
Cell Type:
-
N-type 182*91mm
|
Electrical Parameters
|
|
|
|
|
|
|
||||||
|
TYPE
|
525M
|
530M
|
535M
|
540M
|
545M
|
550M
|
||||||
|
Rated Maximum Power(Pmax) [W]
|
525
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Open Circuit Voltage(Voc) [V]
|
49.15
|
49.3
|
49.45
|
49.6
|
49.75
|
49.9
|
||||||
|
Maximum Power Voltage(Vmp) [V]
|
41.15
|
41.31
|
41.47
|
41.64
|
41.8
|
41.96
|
||||||
|
Short Circuit Current(lsc) (A]
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14
|
||||||
|
Maximum Power Current(lmp) [A]
|
12.76
|
12.83
|
12.9
|
12.97
|
13.04
|
13.11
|
||||||
|
Module Efficiency [%]
|
20.3
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
||||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
||||||
|
STC
|
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G
|
|
|
|
|
|
||||||
|
Remark
|
Electrical data in this catalog do not refer to a single module and they are not part of the offer.
They only serve for comparison among different module types. |
|
|
|
|
|
||||||
|
More Details Please Send Inquiry To Us
|
|
|
|
|
|
|
||||||
