Quick Details
-
name:
-
Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
-
Dimensions:
-
cylinder diameter 18mm (mm)
-
Detection method:
-
Capacitive
-
Detection distance:
-
10mm (mm) adjustable
-
Voltage:
-
DC 6-36V
-
Form] Output:
-
PNP normally open three-wire
-
Warranty:
-
12 month
-
Theory:
-
Inductance Sensor
-
Protection degree:
-
IP67
-
Connection:
-
2m PVC cable or M12 connector
Quick Details
-
Model Number:
-
LJ series
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
name:
-
Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
-
Dimensions:
-
cylinder diameter 18mm (mm)
-
Detection method:
-
Capacitive
-
Detection distance:
-
10mm (mm) adjustable
-
Voltage:
-
DC 6-36V
-
Form] Output:
-
PNP normally open three-wire
-
Warranty:
-
12 month
-
Theory:
-
Inductance Sensor
-
Protection degree:
-
IP67
-
Connection:
-
2m PVC cable or M12 connector
Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
Description 12v dc proximity sensor
12v dc proximity sensor, mainly used for the detection of the target and the location of the object, is divided into inductive, capacitive, reed sensor, photoelectric, ultrasonic and other forms, can detect metal, nonmetal, liquid and other materials.

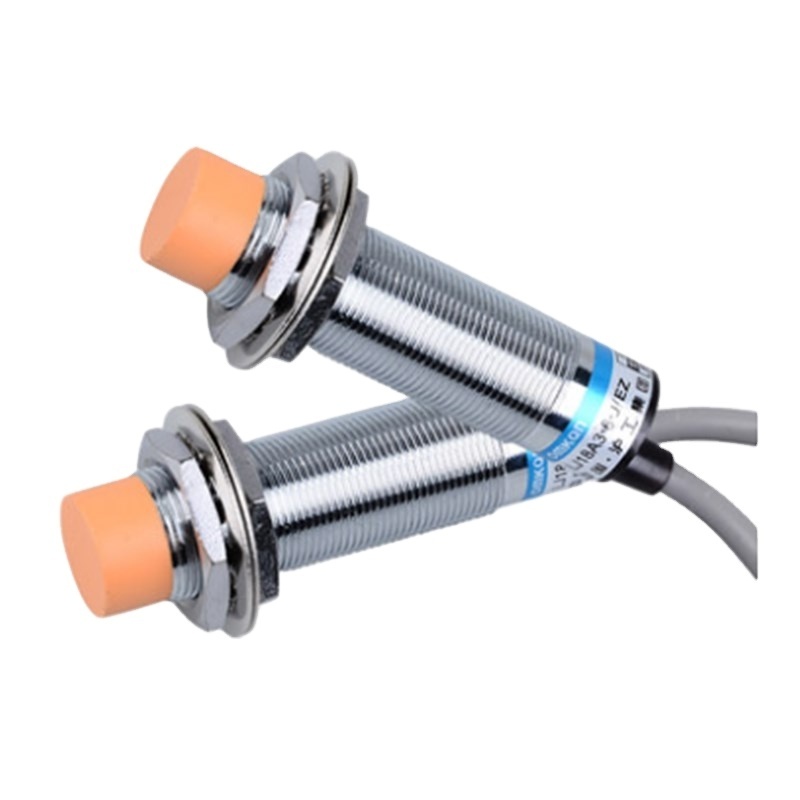

Detailed Images Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
Features Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
Basic parameters
Installation type: Unshielded type
Detect range: 15mm ±10%
Distance setting: 0-13mm
Detect object: magnetic metal
Standard detect object: Iron 30*30*1mm, 50*50*1mm
Response frequency: DC:0.5khz, AC: 25HZ
Material: shell: Nickel plated brass, detect surface: ABS
Protection grade: IP67
Applications Capacitive inductive PNP, NPN 8mm switch 12v dc proximity sensor
* Various location detection of machinery process center
* Bottle lid detection
* Stopper detection of grinding machine
* Arm location detection of robot
* Spacing detection
* Inspection of the exiating of milk inside the paper package
Selection Guide 12v dc proximity sensor
|
Detected object |
magnetic metal |
inductive proximity sensor |
|
conventional object |
capacitive proximity sensor |
|
|
photoelectric sensor |
||
|
Detecting range |
less than 50mm |
proximity sensor |
|
greater than 50mm |
photoelectric sensor |
|
|
Detection mode |
magnetic |
hall effect sensor |
|
reed sensor |
||
|
infrared |
photoelectric sensor |
|
|
Installation dimension |
cylindrical |
cylindrical type |
|
square |
square type |
|
|
groove |
groove type |
|
|
Connection |
cable |
cable type |
|
connector |
connector type |
