Quick Details
-
structure:
-
Heavy duty Aluminum alloy
-
controller:
-
6" color LCD touch screen control panel
-
Back speed:
-
1~30mm/min
-
Diamond wire moving speed:
-
0 - 5 meter/second
-
Z and Y Axis Max. Traveling Distance:
-
300mm (±0.01mm accuracy)
-
Sample stage rotation:
-
360 degree
-
Cooling system:
-
One Coolant tank and two small immersion pumps
-
Certificate:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CYKY
-
Weight (KG):
-
67
-
structure:
-
Heavy duty Aluminum alloy
-
controller:
-
6" color LCD touch screen control panel
-
Back speed:
-
1~30mm/min
-
Diamond wire moving speed:
-
0 - 5 meter/second
-
Z and Y Axis Max. Traveling Distance:
-
300mm (±0.01mm accuracy)
-
Sample stage rotation:
-
360 degree
-
Cooling system:
-
One Coolant tank and two small immersion pumps
-
Certificate:
-
CE

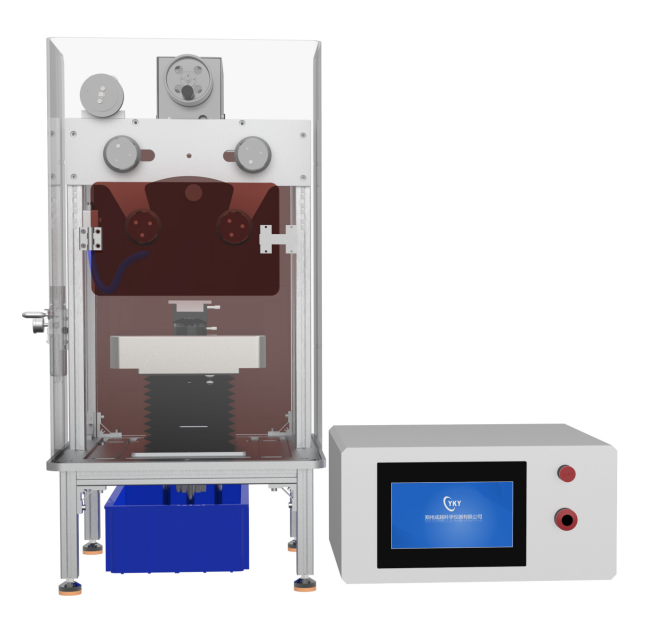

Small Precision Diamond Wire Saw With Digital Control Panel for Slicing Sample < 2 Diameter
precision diamond wire saw
is a CE certified precision diamond wire saw is designed to provide smooth cutting or slicing for all kinds of materials, especially for larger size crystals, such as Si, Ge and GaAs, etc., up to 6" (155 mm) diameter. It cuts the crystal by a
diamond impregnated wire (0.28 mm diameter) which moves repeatedly backwards and forwards with the help of a
digital controller. STX-603 is equipped with an adjustable sample holder with three angles.
precision diamond wire saw
Technical parameters of precision diamond wire saw
|
Power Input |
AC 220V, 50/60Hz |
|
Structure |
Heavy duty Aluminum alloy |
|
Cutting Speed |
Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 40 mm/min adjustable |
|
Wire Moving Speed |
0 ~2m/S |
|
Controller |
Digital 6" color touch screen |
|
Diamond wire |
Ø 0.30mm x 65m Length |
|
Z and Y Axis Max. Traveling distance |
160mm (±0.01mm accuracy) |
|
Sample Stage |
Moves in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation. |
|
Sample size |
Max. 160mm x 160mm |
|
Wire Tension System |
Built in pneumatic valves can easily adjust the tension of cutting wire. (air pump is not included) |
|
Dimensions |
Saw: 700mm x 620mm x 1500mm (L x W x H) Controller: 490mm x 400mm x 170mm (L x W x H) |
|
Shipping weight |
200Kg |
|
Warranty |
Two years limited, not including diamond wire and rusted parts |
|
Certification |
CE Certified |
Structure of precision diamond wire saw
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
