- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
STAGE R12
-
Dimension:
-
W270 * D264 * H420mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
200w
-
Format:
-
---
-
Max power:
-
800W
-
Crossover modes:
-
Passive
-
Weight(each):
-
19.85kg
-
Packing size:
-
460*440*680mm
-
Nominal impedance:
-
8 Ω
-
Nominal sensitivity(1W@1m):
-
97dB
-
Rated power:
-
400W
-
Enclosure:
-
15MM(0.6")MDF
-
applications:
-
Multi functional hall, lecture hall, conference room, KTV, bar
-
Color:
-
black
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
STAGE R12
-
Dimension:
-
W270 * D264 * H420mm
-
Storage:
-
---
-
SNR:
-
---
-
Output Power:
-
200w
-
Format:
-
---
-
Max power:
-
800W
-
Crossover modes:
-
Passive
-
Weight(each):
-
19.85kg
-
Packing size:
-
460*440*680mm
-
Nominal impedance:
-
8 Ω
-
Nominal sensitivity(1W@1m):
-
97dB
-
Rated power:
-
400W
-
Enclosure:
-
15MM(0.6")MDF
-
applications:
-
Multi functional hall, lecture hall, conference room, KTV, bar
-
Color:
-
black

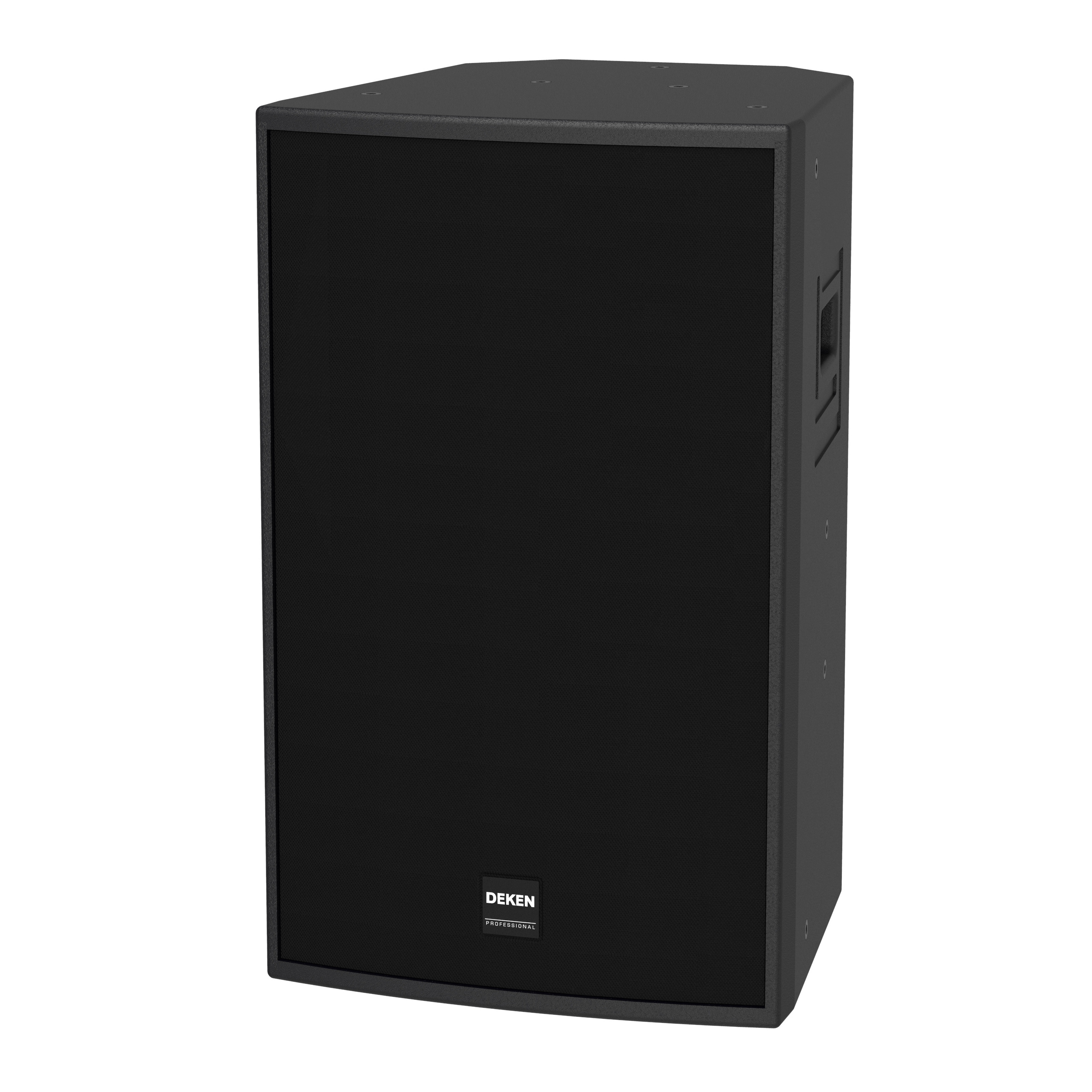

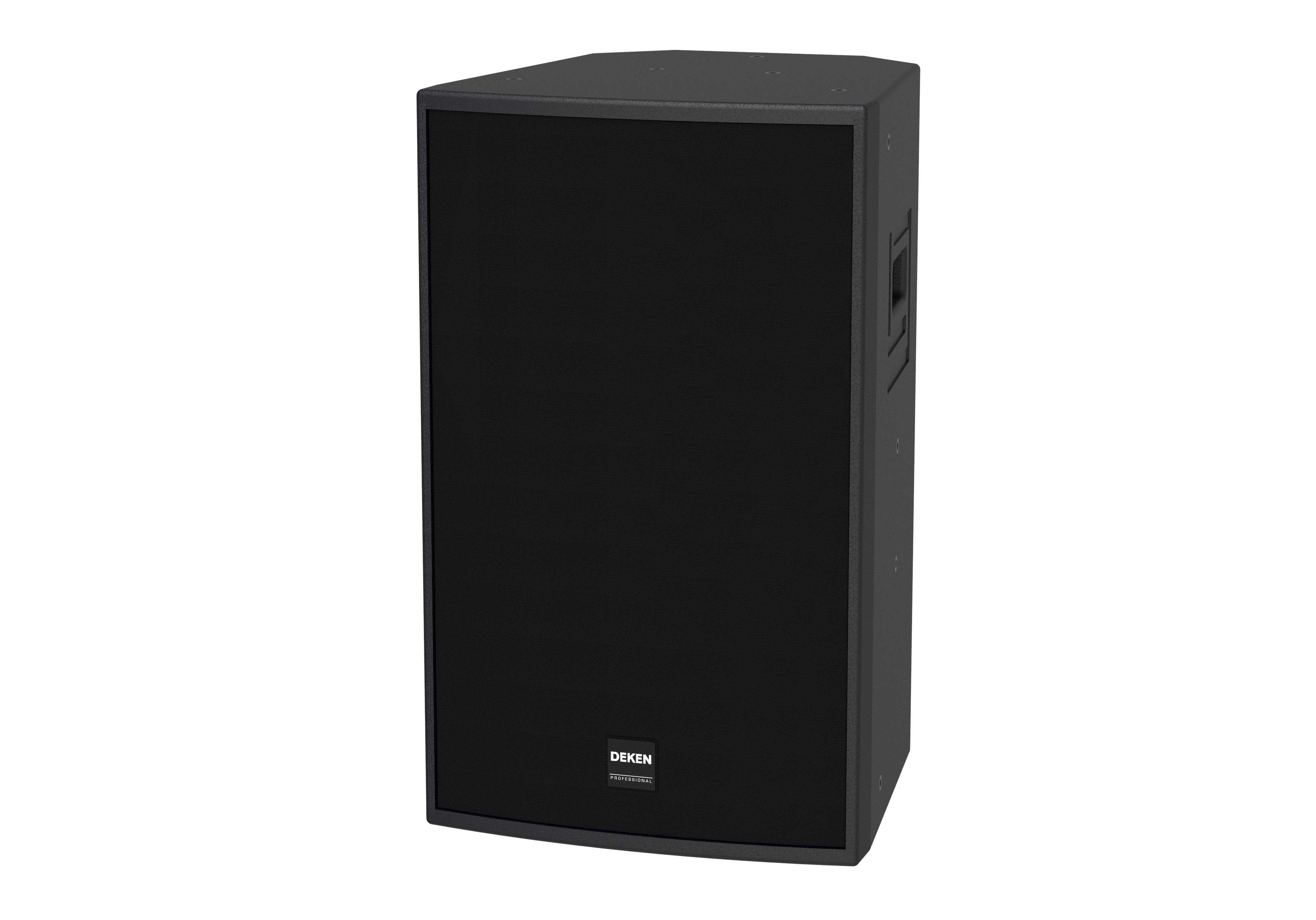

DEKEN STAGE R12
12 inch speakers professional audio music studio equipment home audio party dj karaoke speaker box
Products Description
Descriptions
System type：2 unit 2-way full range frequency loudspeaker
Rated power：200W
Max power：400W
Peak power：800W
Nominal impedance：8 Ω
Recommended power amplifier output rating：300W—400W@8 Ω
Nominal sensitivity（1W@1m）：95dB
Max SPL（Pmax@1m）：118dB@200W(121dB@400W)
Frequency response（-10dB）：58Hz—20KHz
Nominal coverage pattern（-6dB）：90°Hor.×90°Ver.
Speaker component：Ferrite LF driver 8″（200mm diameter 38mm voice coil）×1
Ferrite HF driver 1″（25mm voice coil）×1
Crossover modes：Passive
Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：12MM(0.5”)MDF
Color：Default is black, other colors can be customized
Dimensions：W270 x D264 x H420mm
Weight(each) ：8.5kg
Shipping weight：9.9kg
Reference applications: Multifunctional hall, auditorium, lecture hall, conference room
Rated power：200W
Max power：400W
Peak power：800W
Nominal impedance：8 Ω
Recommended power amplifier output rating：300W—400W@8 Ω
Nominal sensitivity（1W@1m）：95dB
Max SPL（Pmax@1m）：118dB@200W(121dB@400W)
Frequency response（-10dB）：58Hz—20KHz
Nominal coverage pattern（-6dB）：90°Hor.×90°Ver.
Speaker component：Ferrite LF driver 8″（200mm diameter 38mm voice coil）×1
Ferrite HF driver 1″（25mm voice coil）×1
Crossover modes：Passive
Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：12MM(0.5”)MDF
Color：Default is black, other colors can be customized
Dimensions：W270 x D264 x H420mm
Weight(each) ：8.5kg
Shipping weight：9.9kg
Reference applications: Multifunctional hall, auditorium, lecture hall, conference room
|
Model:
|
DEKEN STAGE R12
|
|
System type：
|
2 unit 2-way full range frequency loudspeaker
|
|
Rated power：
|
400W
|
|
Max power：
|
800W
|
|
Peak power：
|
1600W
|
|
Nominal impedance：
|
8 Ω
|
|
Recommended power amplifier output rating：
|
500W—800W@8 Ω
|
|
Nominal sensitivity（1W@1m）：
|
97dB
|
|
Max SPL（Pmax@1m）：
|
123dB@400W(126dB@800W)
|
|
Frequency response （-10dB）：
|
56Hz—20KHz
|
|
Nominal coverage pattern （-6dB）：
|
90°Hor.×40°Ver
|
|
speaker component：
|
Ferrite LF driver 12″（300mm diameter 65mm voice coil）×1
|
|
|
Ferrite HF driver 1.7″（44mm voice coil）×1
|
|
Crossover modes：
|
Passive
|
|
Connector：
|
Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
|
|
Enclosure：
|
15MM(0.6”)MDF
|
|
Dimensions：
|
W367.5mm x D390mm x H605mm
|
|
Color：
|
Default is black, other colors can be customized
|
|
Weight（each）：
|
19.85kg
|
|
Shipping Weight：
|
23.35kg
|
|
Reference applications:
|
Multifunctional hall, auditorium, lecture hall, conference room, KTV, bar.
|
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
Recommend Products
The main products：
Speaker：
Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：
Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：
IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
About us
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 12 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have theCCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced eigineers to design the expected items as you want, we have much experience at ODM. Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12months after shipment
Q: Do you have any qualification certificate?
A:Yes, we have theCCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced eigineers to design the expected items as you want, we have much experience at ODM. Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12months after shipment
