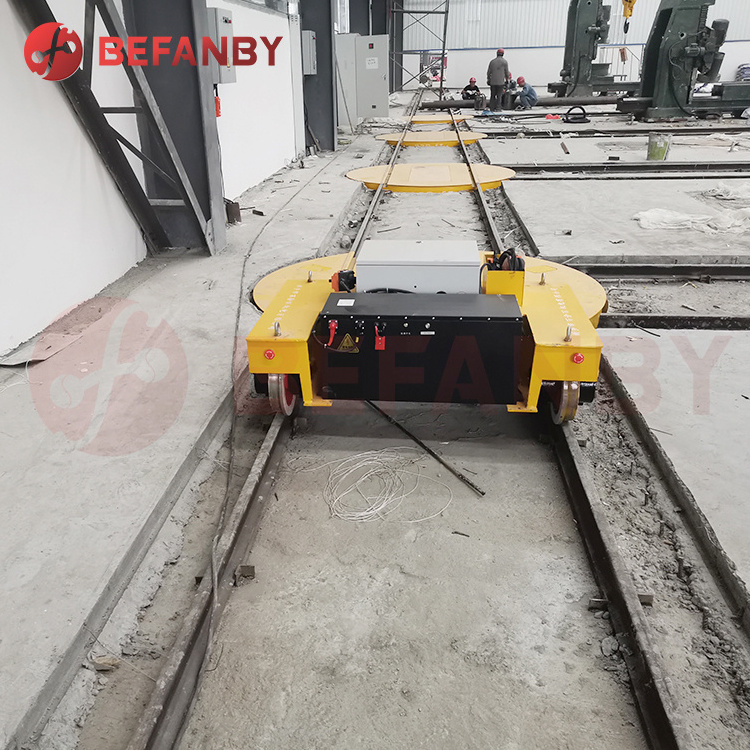

KPX Series flat trolley are battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the carts,for example, start, stop, go forward and backward, adjust the speed and so on. KPX flat carts can be used both on the 'S' and arc-shaped railways.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BEFANBY
-
Product name:
-
Heavy duty mold industry remote control battery drive rail trolley
-
Power supply:
-
Battery operate
-
Structure:
-
steel box beam structure
-
Application:
-
shipyard, steel mill,paper plant,etc
-
Capacity:
-
1-500 Ton
-
Running speed:
-
0-20m/min
-
Certification:
-
CE ISO SASO
-
Purpose:
-
Moving Heavy Objects
-
Control Method:
-
handle and remote control
-
protect device:
-
anti-heat are equipped as per the true need
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BEFANBY
-
Product name:
-
Heavy duty mold industry remote control battery drive rail trolley
-
Power supply:
-
Battery operate
-
Structure:
-
steel box beam structure
-
Application:
-
shipyard, steel mill,paper plant,etc
-
Capacity:
-
1-500 Ton
-
Running speed:
-
0-20m/min
-
Certification:
-
CE ISO SASO
-
Purpose:
-
Moving Heavy Objects
-
Control Method:
-
handle and remote control
-
protect device:
-
anti-heat are equipped as per the true need
Products Description
Heavy duty mold industry remote control battery drive rail trolley
Features for transfer cart:
1.High level automation(self propelled/steerable).
2. The largest capacity can reach to 500t.
3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame.
5. AC/DC electric engine , diesel engine or pneumatic engine.
2. The largest capacity can reach to 500t.
3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame.
5. AC/DC electric engine , diesel engine or pneumatic engine.
Parts
Product Parameter
|
Modle
|
KPX-10T
|
KPX-30T
|
KPX-50T
|
KPX-80T
|
KPX-100T
|
KPX-150T
|
|||||
|
Table Size (m)
|
3.6*2.0*0.5
|
4.5*2.2*0.6
|
5.5*2.5*0.65
|
6.0*2.6*0.8
|
6.5*2.8*0.9
|
10*3.0*1.2
|
|||||
|
Power
|
Maintenance Free Battery
|
|
|
|
|
|
|||||
|
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
|||||
|
Wheel Dia.
|
350mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
|||||
|
Running Speed
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
0-20m/min
|
|||||
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
8kw
|
10kw
|
15kw
|
|||||
|
Battery Capacity
|
180Ah
|
250Ah
|
330Ah
|
400Ah
|
440Ah
|
600Ah
|
|||||
|
Battery Volatge
|
48v
|
48v
|
48v
|
72v
|
72v
|
72v
|
|||||
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
|||||
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
|||||
|
Recommend Rail
|
P24
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
|||||
Remark:
the technical parameter of the transfer car only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.
Application
Function
Our Advantages
Shipping
Shopping Notes
Hi my friend.
It's my honor to learn that you are interested in our products.
Because different customers have different product specifications and functional requirements, all our products are customized on demand.
The product
prices on this page are
for reference only.
Please consult us for specific prices
.
Thank you for your understanding.
We will quote you in time, and provide you with free technical support, product drawings, etc.
Our Company
Related Products
FAQ
Q
How can I install the rail?
A
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
Q
How can I operate the transfer cart ?
A
Please don’t worry, dear friend. The English user manual, parts manual will be delivered with your items together.
Q
Whether you can offer customized transfer car?
A
Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need
.
Q
Whether there is professional technician assist our installation?
A
Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
