Quick Details
-
Power:
-
2.2KW
-
Weight:
-
86 kg
-
Dimension(L*W*H):
-
79x44x115cm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

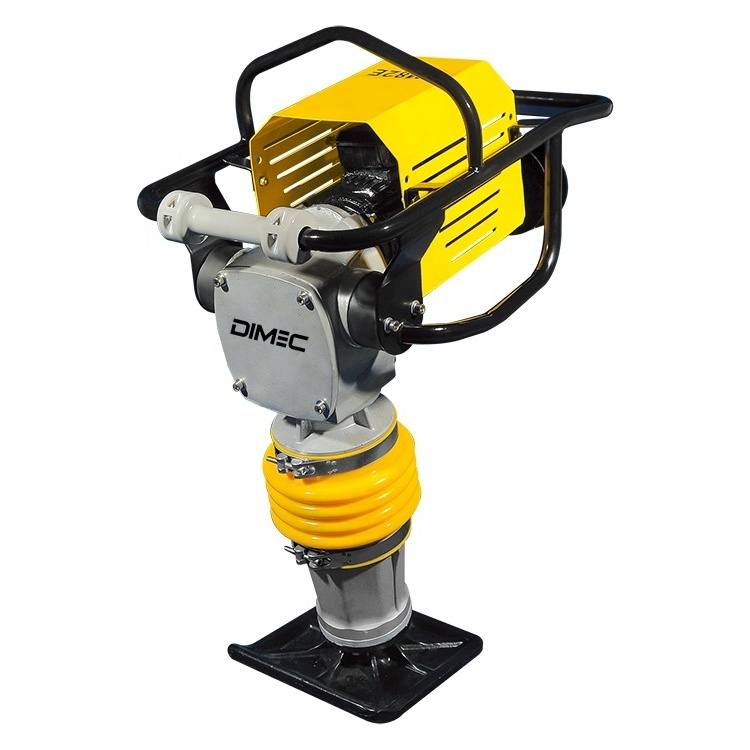

Electric Tamping Rammer
-
Product Name:
-
PME-RM82 Electric Tamping Rammer
-
Engine:
-
Electrical Motor
-
Engine type:
-
sigle or three phase
-
Impact Force:
-
10KN
-
Type:
-
Electric
-
Keyword:
-
Electric Compactor vibrator Electric Motor Tamping Rammer
-
Color:
-
Clients Requirment
-
Usage:
-
compact
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIMEC
-
Voltage:
-
Customized
-
Power:
-
2.2KW
-
Weight:
-
86 kg
-
Dimension(L*W*H):
-
79x44x115cm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Electric Tamping Rammer
-
Product Name:
-
PME-RM82 Electric Tamping Rammer
-
Engine:
-
Electrical Motor
-
Engine type:
-
sigle or three phase
-
Impact Force:
-
10KN
-
Type:
-
Electric
-
Keyword:
-
Electric Compactor vibrator Electric Motor Tamping Rammer
-
Color:
-
Clients Requirment
-
Usage:
-
compact
Description
The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force though it is small and light.
Tamping rammer is specifically designed for tough rammer applications in confined area, trench work, backfill and repairing work on asphalt.
Tamping rammer is suitable especially for compacting the roadbed with low water content that heavy compactor could not work.
Tamping rammer is suitable for compact the Cohesive soils--clay is cohesive; its particles stick together. Therefore, a machine with a high impact force is required to ram the soil and force the air out, arranging the particles. A rammer is the best choice.
|
Model
|
PME-RM82E
|
|
Engine
|
Electric motor,sigle or three phase
|
|
Rated power [KW]
|
2.2
|
|
Speed [RPM]
|
2800
|
|
Leap height [mm]
|
40-60
|
|
Frequency [VPM]
|
450-660
|
|
Tamping force [KN]
|
10
|
|
Plate size [mm]
|
310x280
|
|
Max. compaction depth [cm]
|
45
|
|
Travel speed [m/min]
|
9-12
|
|
Efficiency [m2/h]
|
180
|
|
N.W./G.W. [kg]
|
86/101
|
|
Package (L x W x H) [cm]
|
79x44x115
|
Main Features
Economical type
Economical type tamping rammer at low price and high quality.
New design throttle lever
Throttle lever using new design and material to extend usage life with smooth operation
Effective shock absorber
Heavy duty shock buffering system effectively reduced shock to arms therefore improve operation comfort
Safety device
Dust-proof cover and side panel of the engine provided needed protection of the power system.
Our strengths：
1.Strictly material suppliers control
Casual inspection for material and spare parts.
>500pcs, Inspection rate 10%
100-500pcs,Inspection rate 20%, ;
< 100pcs,Inspection rate 100%
If found substandard material or spare parts, inspection rate doubles.
2.Completely production lines
We have complete production and assembly lines for diesel engine, generator, plate compactor, tamping rammer...
Production capacity is 5000pcs/month for each kind of machine.
3.Strong technical team of chief engineers, senior technicians,QC.
One QC for each production line,monitor production status in real time.
15mins running before packing for each machine.
2% casual inspection after packing for 2days performance test.
4. Rich production and sales experience
5+ years workers;
10+ years sales experience;
Export to 68+ countries;
5. Equipped with completely inspection&testing equipment.
From finish machining of spare parts, steel plate cutting and welding, spraying paint, all the way to product assembly, end production inspection, we can control every step of production. This results in effective product quality control.
Add: No.19#6032, Zhihui Road, Huishan Economic Development Zone, Wuxi City, Jiangsu Province,China.
Tel:+86-510-83591868
Fax:+86-510-83591868
Website: www.pinnaclemachines.com
1、What is the delivery time?
25-30days after deposit.
2、What is the warranty?
One year, during the warranty, we supply spare parts for free if the machines are broken. Excluding wearing parts.
3、What engines can you supply?
Honda engine, Robin engine, Loncin engine, Lifan engine, Kipor diesel engine and so on. We can use engine against clients’ request.
4、What certificates do you have?
CE, GS, Noise certificate, EPA...
5、Can you supply OEM，ODM?
Yes, our company can produce against to clients’ request.
