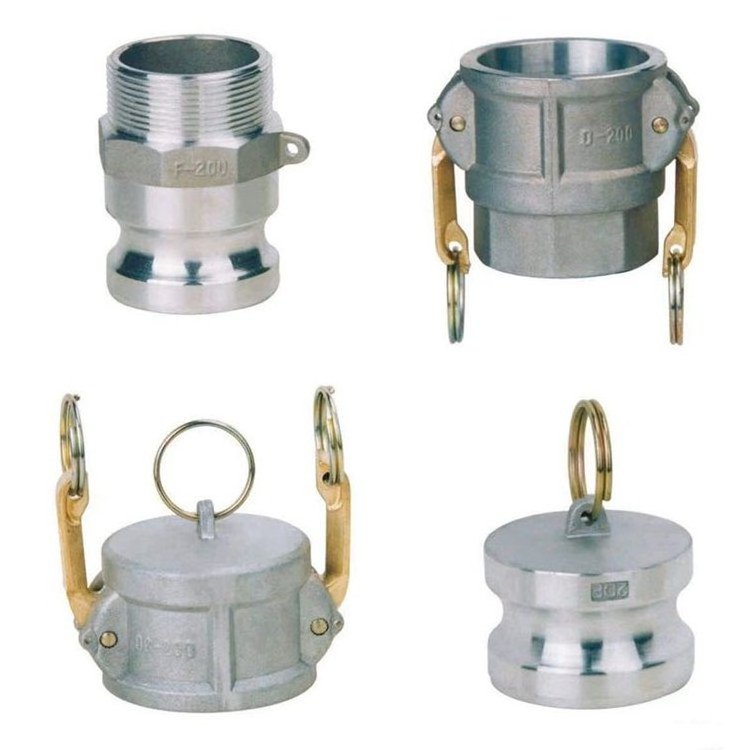

Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size.
Type "B", has a female camlock end and a male pipe thread of the same size.
Type "C", has a female camlock on one end and a male hose tail on the other.
Type "D", has a female camlock end and a female pipe thread of the same size.
Type "E", has a male camlock on one end and a male hose tail on the other.
Type "F", has a male grooved adaptor and a male pipe thread of the same size.
Type "B", has a female camlock end and a male pipe thread of the same size.
Type "C", has a female camlock on one end and a male hose tail on the other.
Type "D", has a female camlock end and a female pipe thread of the same size.
Type "E", has a male camlock on one end and a male hose tail on the other.
Type "F", has a male grooved adaptor and a male pipe thread of the same size.
Quick coupling connectors are common hose fitting connectors.Quick coupling connectors conserve energy and are easy to connect/disconnect without the use of hand tools, for thousands of purposes where products are transferred by pipe or hoses, like Brewing, Chemical, Mining, Fertilizers, Petroleum, Steel Plants, Power Plant and Pneumatic tools. These are widely used in engineering and automobile industry.
Couplings are designed with arms on the female fittings and adapters and an internal gasket for sealing. A male and female coupling are put together and a seal is created when the arms are pushed to the side and locked in place. This forces the male coupling against the gasket in the female and a tight seal is formed.
Various coupling adapters are designed to connect camlocks with other types of connections. A type A camlock adapters, type B,type D, and type F are all designed with one cam and groove end, and one pipe thread end. This allows the common coupling to be attached to the more common pipe thread fitting, whether it is two hoses that are being connected or a hose to a machine or fluid discharge area.
Various coupling adapters are designed to connect camlocks with other types of connections. A type A camlock adapters, type B,type D, and type F are all designed with one cam and groove end, and one pipe thread end. This allows the common coupling to be attached to the more common pipe thread fitting, whether it is two hoses that are being connected or a hose to a machine or fluid discharge area.
Couplings are manufactured in various materials including stainless steel, polypropylene, aluminium, brass etc. The type of application the fitting or hose is going to be used for will determine the material type required. The most common coupling material type is stainless steel. The same applies to the gasket material on a female coupling. Gasket may be teflon, buna, silica etc.
