Quick Details
-
controller:
-
AC,48V/60V/72V
-
Battery:
-
100Ah\120Ah\150Ah Lead acid /Lithium Battery
-
Motor:
-
AC 3.0KW/3.5KW/4.0KW/5.0KW
-
Max speed:
-
20-30km/h
-
Battery type:
-
Li-ion Battery
-
Light:
-
Front LED Headlight
-
Wheelbase:
-
1700mm
-
Warranty:
-
1 Year
-
Curb weight:
-
450 kg
Quick Details
-
Tire Size:
-
10 inch aluminum alloy wheels
-
Dimension:
-
2500*1250*1850
-
Product name:
-

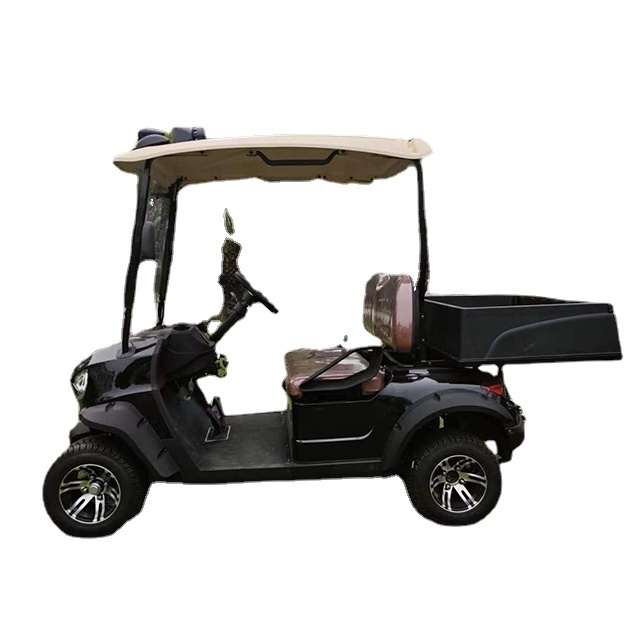

2 Seater Electric Golf Cart
-
controller:
-
AC,48V/60V/72V
-
Battery:
-
100Ah\120Ah\150Ah Lead acid /Lithium Battery
-
Motor:
-
AC 3.0KW/3.5KW/4.0KW/5.0KW
-
Max speed:
-
20-30km/h
-
Battery type:
-
Li-ion Battery
-
Light:
-
Front LED Headlight
-
Wheelbase:
-
1700mm
-
Warranty:
-
1 Year
-
Curb weight:
-
450 kg
Recommend Products
Product Paramenters
|
types of
|
golf cart
|
|
|
Brand
|
Lake horse
|
|
|
model
|
HMT-2Tseries
|
|
|
Controller
|
AC，48V/60V/72V
|
|
|
Motor
|
AC 3.0KW/3.5KW/4.0KW/5.0KW
|
|
|
Battery
|
100Ah\120Ah\150Ah Lead acid /Lithium Battery
|
|
|
Charger
|
on-board，input 110-240V Fully intelligent charger
|
|
|
Charging Time
|
4-8 hours
|
|
|
Overall Dimension
|
2500*1250*1850mm
|
|
|
Passenger Capacity
|
2 passengers
|
|
|
Max.Speed
|
35KM/H
|
|
|
Max.Travelling Range
|
80-90KM
|
|
|
Climbing Capacity
|
≤35°
|
|
|
Curb weight
|
450 kg
|
|
|
Vehicle load
|
900kg
|
|
|
Front\Rear Wheel Track
|
990mm
|
|
|
Wheelbase
|
1740mm
|
|
|
Ground Clearance
|
≥180mm
|
|
|
Brake Distance
|
≤4m
|
|
|
Seat
|
Leather fabric+high rebound PU cold foam sponge+seat belt
|
|
|
Display
|
Vehicle LCD combination instrument, odometer, power meter, steering indicator
|
|
|
windscreen
|
Acrylic material transparent glass
|
|
|
Body material
|
Steel frame+ABS engineering plastic molded parts
|
|
|
rearview mirror
|
Manual exterior rearview mirror
|
|
|
Electrical switch
|
Main power switch, start switch, light switch, forward/backward gear switch, electric horn switch
|
|
|
Steering wheel
|
Polyurethane steering wheel
|
|
|
Braking System
|
Front disc and rear drum , dual circuit hydraulic brake, parking brake device
|
|
|
Front Axle and Suspension
|
Independent suspension+spiral spring+cylindrical hydraulic shock absorber
|
|
|
Rear Axle and Suspension
|
Integrated rear axle
|
|
|
Steering
|
Rack and pinion directional machine
|
|
|
drive system
|
Rear drive and continuously variable transmission system
|
|
|
Tires
|
Vacuum off-road tires, 12 inch aluminum alloy wheels
|
|
Golf Course Transportation
Golf sightseeing vehicles have the characteristics of easy up and down, high handling stability, small turning radius, excellent shock absorption performance, comfortable activity, and beautiful appearance
Sightseeing, tourism, and vacation
In addition to the golf course, our golf cart is also used as a means of transportation in resorts, villa areas, garden style hotels, tourist attractions, and other places
Vacation short distance travel
The entire vehicle design adopts three-dimensional simulation, designed according to ergonomics, ensuring comfortable driving and riding without fatigue, relaxed and happy.
FAQ
Product advantages.
Product advantages
1. Designed and produced according to American golf cart standards: lightweight, energy-saving, mature and stable, reliable and safe;
2.Dual swing arm independent suspension system: The left and right wheels move independently without affecting each other.
Goodground adhesion can also be achieved on undulating roads, ensuring smooth driving; Comfortable and natural ride,
3.Adopting a new energy electric drive system: high efficiency, strong climbing ability, smooth and precise handling, vehicle safety and controllability, and low maintenance costs;
4.Adopting new energy AC control, it has seven protection functions: battery polarity reverse protection, connection error
protection, overheating protection, external protection, loss of control protection, over discharge protection, and false start
protection;
5. Adopting large capacity, long cycle, maintenance free, deep cycle power batteries: characterized by high energy, long
lifespan,and high current discharge;
6. High frequency intelligent charger, 6-stage charging: automatically power-off when fully charged, short circuit protection
during charging, effectively protecting the battery, extending its service life, stable and durable, and resistant to harsh usage environments;
7.The whole vehicle inspection line for new energy vehicles has undergone multiple rigorous tests, ensuring stable and reliable vehicle quality.
8.After sales service: 7 * 18 hours of after-sales service, handle any problems as soon as possible.. Make sure you have no worries.
9."Lake horse" is a well-known brand, and its electric golf carts, electric vintage cars, and electric sightseeing vehicles are
sold to more than 60 countries around the world.
1. Designed and produced according to American golf cart standards: lightweight, energy-saving, mature and stable, reliable and safe;
2.Dual swing arm independent suspension system: The left and right wheels move independently without affecting each other.
Goodground adhesion can also be achieved on undulating roads, ensuring smooth driving; Comfortable and natural ride,
3.Adopting a new energy electric drive system: high efficiency, strong climbing ability, smooth and precise handling, vehicle safety and controllability, and low maintenance costs;
4.Adopting new energy AC control, it has seven protection functions: battery polarity reverse protection, connection error
protection, overheating protection, external protection, loss of control protection, over discharge protection, and false start
protection;
5. Adopting large capacity, long cycle, maintenance free, deep cycle power batteries: characterized by high energy, long
lifespan,and high current discharge;
6. High frequency intelligent charger, 6-stage charging: automatically power-off when fully charged, short circuit protection
during charging, effectively protecting the battery, extending its service life, stable and durable, and resistant to harsh usage environments;
7.The whole vehicle inspection line for new energy vehicles has undergone multiple rigorous tests, ensuring stable and reliable vehicle quality.
8.After sales service: 7 * 18 hours of after-sales service, handle any problems as soon as possible.. Make sure you have no worries.
9."Lake horse" is a well-known brand, and its electric golf carts, electric vintage cars, and electric sightseeing vehicles are
sold to more than 60 countries around the world.
