Quick Details
-
Brand Name:
-
SAIPWELL
-
Model Number:
-
LW26-20
-
Max. Current:
-
100A
-
Mechanical Life:
-
100,000
-
Name:
-
Universal Changeover Switch
-
Function:
-
Changeover Switch
-
No. of Poles:
-
2P, 3P, 4P (optional)
-
Operative Frequency:
-
120times/Hour
-
Installing Panel thickness:
-
1 to 5mm
-
Certificate:
-
CE, RoHS
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAIPWELL
-
Model Number:
-
LW26-20
-
Max. Current:
-
100A
-
Mechanical Life:
-
100,000
-
Name:
-
Universal Changeover Switch
-
Function:
-
Changeover Switch
-
No. of Poles:
-
2P, 3P, 4P (optional)
-
Operative Frequency:
-
120times/Hour
-
Installing Panel thickness:
-
1 to 5mm
-
Certificate:
-
CE, RoHS
-
Certification:
-
CE

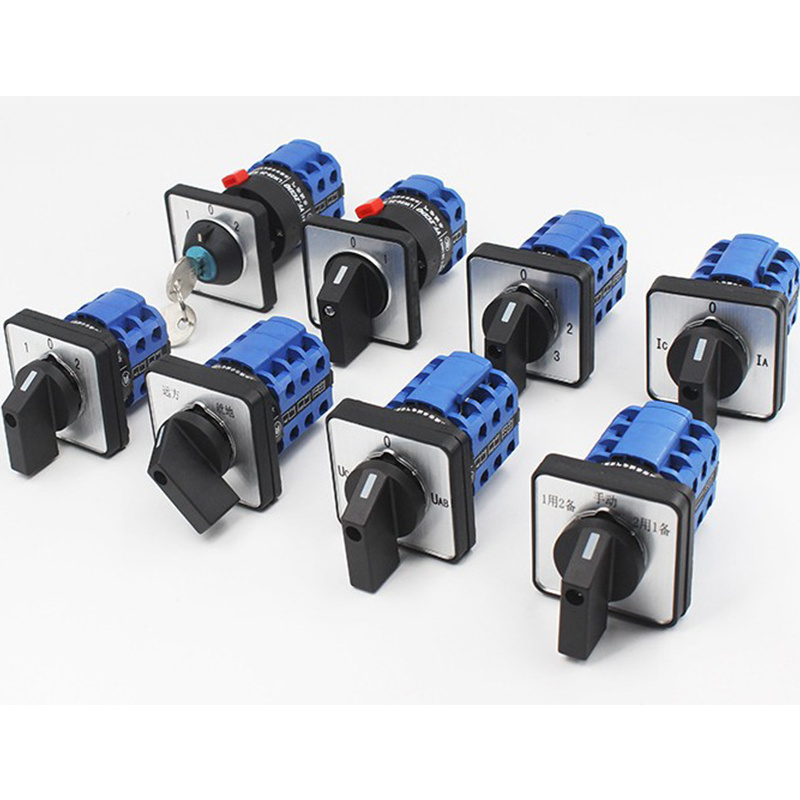

Saipwell high quality 20A 25A 32A 63A 80A 100A On Off Universal Changeover Switch
| Saipwell high quality 20A 25A 32A 63A 80A 100A On Off Universal Changeover Switch |
| 20A 25A 32A 63A 80A 100A On Off Universal Changeover Switch |
| On Off Universal Changeover Switch |
P roduct Characteristics :
Introduction LW26 series Universal Changeover Switch applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
LW26 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power..
LW26 series Universal Changeover Switch have six current ratings:20A,25A,32A,40A,63A,80A and 100A.
LW26series has the finger protection terminals,which offers an extra advantage.
LW26 series Universal Changeover Switch has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 26 has additional contact which enable us to install the contact separetely.
LW26 series Universal Changeover Switch comply with:GB/T 14048.3,and IEC 60947-3.
Parameters
Technical parameters:
|
No. |
Tech Parameters |
Universal Changeover Switch |
|
1. |
rated voltage |
below 440V |
|
2. |
rated current |
20A,25A,32A,63A,80A,100A |
|
3. |
frequency |
AC50HZ |
|
4. |
No.of poles |
2P,3P,4P |
|
5. |
No.of layers |
make as required with circuit diagram |
|
6. |
panel size |
30*30mm,48*48mm,64*64mm,88*88mm |
|
7. |
colour of handle |
black,white,red,grey |
|
8. |
Working temperature |
-25°C~+40°C REMARKS:the average temperature mustn’t be pass 35°C |
|
9. |
Working height |
≤2,000m |
|
10. |
Relative humidity |
≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C (eg.:humidity 90%----teperature20°C) |
|
11. |
Instalation conditions |
polution class III |
|
12. |
Mechanical life |
0.1*106times |
|
13. |
Electrical life |
0.03*106times |
|
14. |
Operative frequency |
120times/hour |
|
15. |
transform angle |
30°/45°/60°/90°/120°/135°/150° |
Other Type:
| Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | LW30-100 | ||||||||
| Rated thermal current | ITH | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
| Rated working voltage | LE | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Ie/Pe | Ie/Pe | |||||||||||||
| AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
| AC-23A | A/KW | 41379 | 15/7.5 | 22/5.5 | 41600 | 30/7.5 | 30/15 | 16011 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 | |
| AC-3 | A/KW | 11.7/3 | 11.7/5.5 | 41379 | 15/7.5 | 22/7.5 | 41600 | 13455 | 36/18.5 | 43/15 | 57/30 | 57/18.5 |
57/30
|
|
