The doors are designed advanced, cost-effective.The door panels are made of high quality painted steel or aluminum alloy plate and insulated by environment friendly polyurethane foam.
We have white, silver, gray, dark gray, red, blue and many other colors to choose from.
The thickness of the door panel is 40mm, 50mm, 40/70mm optional.
The door is equipped industrial motor, with soft start and close function, and quiet operation.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
Bolang
-
Model Number:
-
BF-50-I
-
Product name:
-
Sectional Industrial Door
-
Material:
-
Steel with PU foam insulation
-
Color:
-
White and customized
-
Panel thickness:
-
40mm/50mm/40+70mm
-
Lifting Methods:
-
Standard/High/Vertical Lifting
-
Advantage:
-
Thermal Insulation
-
Position:
-
Warehouse Door
-
Size:
-
Customized Size
-
Packing:
-
Carton
-
Delivery time:
-
Shipped in 25 days after payment
Quick Details
-
Door Material:
-
Steel
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Steel
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
Bolang
-
Model Number:
-
BF-50-I
-
Product name:
-
Sectional Industrial Door
-
Material:
-
Steel with PU foam insulation
-
Color:
-
White and customized
-
Panel thickness:
-
40mm/50mm/40+70mm
-
Lifting Methods:
-
Standard/High/Vertical Lifting
-
Advantage:
-
Thermal Insulation
-
Position:
-
Warehouse Door
-
Size:
-
Customized Size
-
Packing:
-
Carton
-
Delivery time:
-
Shipped in 25 days after payment
Product Description
Industrial Sectional Vertical Factory Lifting Automatic Sliding Warehouse Overhead Industrial Door
|
Product Name
|
Sectional industrial door
|
|
Color
|
White or customized
|
|
Material
|
Aluminum plate and PU foam insulation
|
|
Rail track
|
Double or single track
|
|
Application
|
Industrial buildings, warehouses and so on
|
|
Package
|
Plastic foam,Paper box and Strong carton and Wood box or depending on clients' special requirements
|
Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.
Product Display
|
Slat Option
|
40mm,50mm,40/70mm
|
|
Lift Methods
|
Vertical lift/Standard lift/High position lift/Special lift
|
|
Door Designs
|

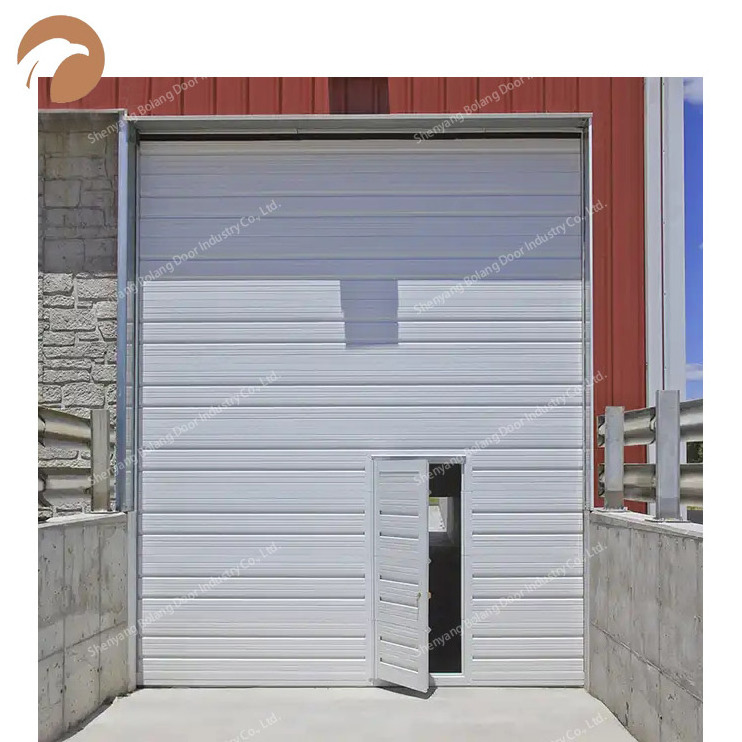

Visible window/Door in door
|
Door Panel
40/50/40+70 series door panels, filled with polyurethane foam , anti-pinch , sturdy and durable, thermal insulation and sound insulation.
40/50/40+70 series door panels, filled with polyurethane foam , anti-pinch , sturdy and durable, thermal insulation and sound insulation.
Door Panel Structure
The top and both side guide rails are equipped with EPDM sealing tapes and bottom seals, which are completely sealed after the door is closed. The door panel interface is equipped with sealing rubber to cut off the heat transfer and reduce energy loss.
The top and both side guide rails are equipped with EPDM sealing tapes and bottom seals, which are completely sealed after the door is closed. The door panel interface is equipped with sealing rubber to cut off the heat transfer and reduce energy loss.
Balance Device
The torsion spring is made of high-quality spring steel, and the surface is treated with anti-corrosion and anti-rust treatment to achieve 30,000 cycles, and the order can reach 5/100,000 times. Pulley slides and hinges are an integral part of the balance system for light and smooth operation.
The torsion spring is made of high-quality spring steel, and the surface is treated with anti-corrosion and anti-rust treatment to achieve 30,000 cycles, and the order can reach 5/100,000 times. Pulley slides and hinges are an integral part of the balance system for light and smooth operation.
Control System
Brand control system, frequency conversion intelligent control door opening and closing, slow start and stop, more stable and durable. Multiple expansion ports are reserved to meet various customization needs such as interlock linkage, automatic door opening and remote control communication.
Brand control system, frequency conversion intelligent control door opening and closing, slow start and stop, more stable and durable. Multiple expansion ports are reserved to meet various customization needs such as interlock linkage, automatic door opening and remote control communication.
Other
Rich enhancement system, optional window, door-in-door, innovative non-threshold small door, lifting method, wind-resistant components, remote door opening, remote control, customized color of door panel, infrared safety protection and various induction door opening devices.
Rich enhancement system, optional window, door-in-door, innovative non-threshold small door, lifting method, wind-resistant components, remote door opening, remote control, customized color of door panel, infrared safety protection and various induction door opening devices.
Sectional Door Details
1. Double Track 2. Motor bracket 3.
Pull & push part 4.
Track small link 5.
Motor rail 6.
Side hinge and Roller 7.
Motor 8.
Tubular shaft 9.
Motor rail bracket 10.
Torsion spring 11.
Motor rail curve part 12.
Drum 13.
Bearing bracket 14.
Steel rope 15.
Big track
cover
bracket
16.
Track Cover 17.
Track 18.
Bottom roller bracket 19.
Center hinge 20.
Door panels
All measurements are made indoors and each value must be measured at at least three points:
H - the height of the door opening (the distance from the ground to the top of the door opening)
When measuring H and B, take the maximum value as the final size
When measuring h, b1, b2 and L, take the smallest value as the final size
H - the height of the door opening (the distance from the ground to the top of the door opening)
B - the width of the door opening (the distance from the left edge of the door opening to the right edge)
h - at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling)
b1/b2 - requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room
h - at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling)
b1/b2 - requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room
When measuring H and B, take the maximum value as the final size
When measuring h, b1, b2 and L, take the smallest value as the final size
Why Choose Us
We are quality manufacturer certified by Alibaba!
We have ability to provide you with safe,assured and satisfactory services.
A. professional manufacturer for roller shutter door
B. good quality and competitive price
C. slat,color & door opener are optional
We provide customized service to apply each customer requirements.
This product is a custom product, if you have other custom needs, please contact me！
This product is a custom product, if you have other custom needs, please contact me！
Recommend Products
Product Packaging
We offering different packing for customer's requirements
Plastic Foam,Paper Box,Strong Carton and Wood Box .
Plastic Foam,Paper Box,Strong Carton and Wood Box .
