Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-IPS33064PF
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
5 Years
-
Standard:
-
IEEE 802.3af/at
-
Uplink:
-
2x 1000BaseX SFP slots
-
RJ45 Port:
-
4x10/100/1000Base T
-
Input Voltage:
-
48~57 VDC
-
Shell:
-
Iron shell, IP40 protection level
-
Network Distance:
-
100meters(UTP)
-
Brand:
-
ONV/OEM/ODM
-
Dimensions (W x D x H):
-
119*100*30mm
-
Certification:
-
CE FCC RoHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12Gbps
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-IPS33064PF
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
5 Years
-
Standard:
-
IEEE 802.3af/at
-
Uplink:
-
2x 1000BaseX SFP slots
-
RJ45 Port:
-
4x10/100/1000Base T
-
Input Voltage:
-
48~57 VDC
-
Shell:
-
Iron shell, IP40 protection level
-
Network Distance:
-
100meters(UTP)
-
Brand:
-
ONV/OEM/ODM
-
Dimensions (W x D x H):
-
119*100*30mm
-
Certification:
-
CE FCC RoHS
|

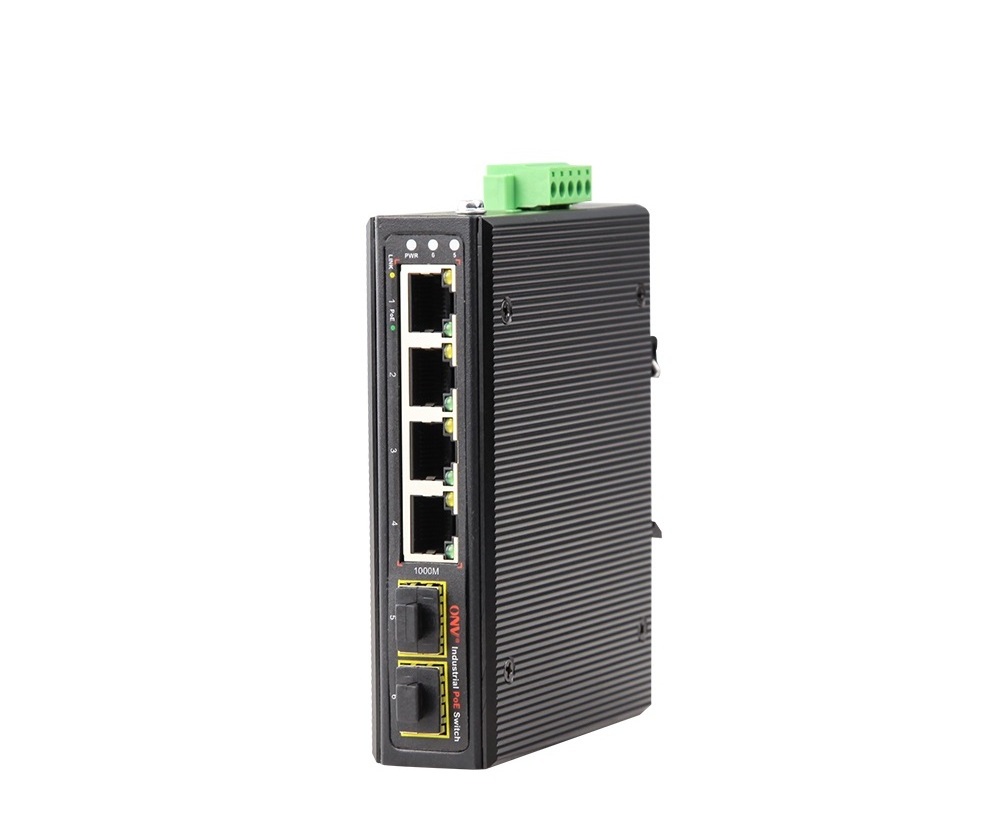

Model |
ONV-IPS33064PF |
|
Interface |
4*10/100/1000M POE ports (Data /Power) 2*1000M uplink SFP ports (Data) 2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
|
POE Port |
1-4 ports support IEEE 802.3af/at PoE standard |
|
Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-LX/SX/CX IEEE802.3x |
|
PoE Standard |
IEEE802.3af/at international standard |
|
Ethernet Port Feature |
10/100/1000BaseTx auto-sensing,full/half duplex MDI/MDI-X self-adaption |
|
Fiber Port Feature |
Gigabit SFP fiber interface, no optical module by default, need to be purchased separately (optional order single-mode / multimode, single fiber / dual fiber module, LC) |
|
Forwarding Mode |
Store and Forward (Full wire speed) |
|
Backplane bandwidth |
12Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
8K |
|
Buffer Memory |
2M |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat6 or later UTP(≤100 meter) |
|
Optical Fiber Cable |
Multi mode: 850nm 0~550M;single mode: 1310nm 0~40KM,1550nm 0-120KM. |
|
Power Supply Pin |
support 1/2 (+), 3/6 (-) 4-core power supply by default, optional 4/5 (+), 7/8 (-) power supply |
|
Operating Voltage |
DC power supply, DC48-57V ultra-wide supply voltage, 5P Phoenix terminal connection, support anti-reverse protection |
|
Max / Average Power Per Port |
30W/15.4W |
|
Total PWR / Input Voltage |
60W/(48VDC)@ af |
|
Power Consumption |
Standby:<3W; Full Load:<60W |
|
LED indicator |
Power indicator: PWR(green);network indicator：Link(yellow);PoE indicator PoE(green); |
|
Power Supply |
No, you can purchase industrial power supply 48V/60W or 48V/120W, see the accessory information table for purchase. |
|
Operation TEMP / Humidity |
-20~+80°C; 5%～90% RH Non-condensing |
|
Storage TEMP / Humidity |
-40~+85°C; 5%～95% RH Non-condensing |
|
Dimension |
128*100*54mm |
|
Net /Gross Weight |
<0.65kg /<1.2kg |
|
Installation Method |
desktop type、35mm DIN Rail type |
|
Port lightning protection / protection level |
Port lightning protection : 4KV 8/20us;Protection level: IP40 IEC61000-4-2（ESD）±8kV Contact Discharge,±15kV Air Discharge IEC61000-4-3（RS）10V/m（80~1000MHz） IEC61000-4-4（EFT）Power Line: ±4kV; Data Line: ±2kV IEC61000-4-5（Surge）Power Line,CM±4kV/DM±2kV；Data Line,±4kV IEC61000-4-6 (Radio Frequency Conduction) 10V（150kHz~80MHz）IEC61000-4-8 (Power Frequency Magnetic Field) 100A/m Continued; 1000A/m,1s to 3s IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s FCC Part 15/CISPR22（EN55022）Class A IEC61000-6-2(General Industry standard) |
|
Mechanical properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark;commercial;CE/LVD EN60950;
RoHS; |
|
Warranty |
5 years for Industrial PoE switch , lifelong maintenance. |
