Quick Details
-
Brand Name:
-
TONGDA
-
Dimension(L*W*H):
-
16250x4310x2620mm
-
Weight:
-
10 KG
-
Power:
-
10.45KW
-
Name:
-

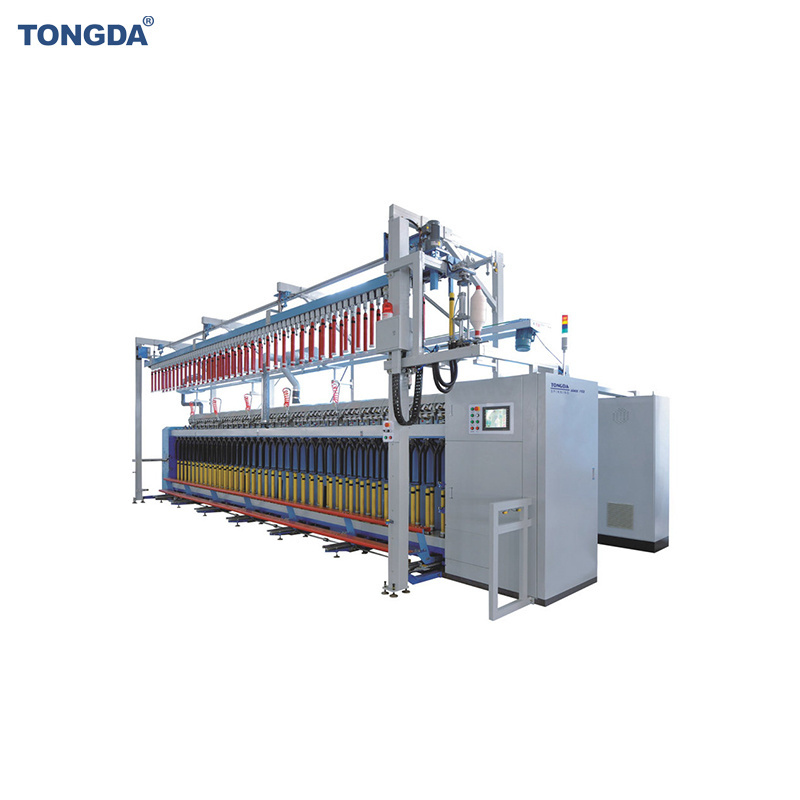

TONGDA FA471 PP PE Polyester Cotton Yarn spinning machine roving frame
-
Spindle gauge:
-
220
-
pitch gauge::
-
440
-
Fiber length::
-
22-65mm
-
spindle number::
-
108,120,132
-
type:
-
roving machine /simplex machine
-
Spinning Equipment:
-
roving Machine
-
tension adjustment:
-
software
-
control type:
-
computerized model
Quick Details
-
Application:
-
Spinning Production Line
-
Production Capacity:
-
99.9%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGDA
-
Dimension(L*W*H):
-
16250x4310x2620mm
-
Weight:
-
10 KG
-
Power:
-
10.45KW
-
Name:
-
TONGDA FA471 PP PE Polyester Cotton Yarn spinning machine roving frame
-
Spindle gauge:
-
220
-
pitch gauge::
-
440
-
Fiber length::
-
22-65mm
-
spindle number::
-
108,120,132
-
type:
-
roving machine /simplex machine
-
Spinning Equipment:
-
roving Machine
-
tension adjustment:
-
software
-
control type:
-
computerized model
Product display and advantages
Main Feature
Roving Frame Simplex Spinning Machine FA471 automatic doffing roving machine employs intelligent automation control. The spinning process, which includes drafting, twisting, winding, and forming, is controlled by a four-motor linkage mode. This machine was designed with a new concept, offering high standards and developing a new generation of smart, automatic doffing roving machines.It includes features such as spinning molding, exchange, automatic generation head spinning, and more, achieving full process automation control. This results in reduced operating noise and improved part service life.
Product details
Product details
FA471 Roving frame simplex spinning machine has three-shaft linkage computerized type high speed suspend flyer roving frames adopt the advanced computer numerical control technique,getting rid of the cone drum structure,
mechanical forming and direction transposition structures of former flyer frames.
Product details
The automaticity is high, simplicity of operator, services conveniently, depth wool spinning customer high praise.
Product details
The optimization design new differential mechanism he change transmission stressful condition, increased the design manufacture precision, the solution vibrates in a big way, elevates, the oil leak to be serious warm, the bearing easy to damage technical difficult problem.
Main Technical Data
|
Suitable for square fiber length
|
60-200mm
|
|
Drawing multiple
|
4-16
|
|
Viscosity range
|
10-40twist/m
|
|
The scope of Article
|
0.3-1g/m
|
|
Feeding range
|
5-15g/m
|
|
Constant speed
|
the maximum mechanical speed 1200RPM Maximum process speed 900RPM
|
|
Drafting system
|
A complete unit Chinese brand drafting sysrem (spring weighting arm).
|
|
Roller diameter(mm)
|
φ28.5,φ28.5
|
|
Top roller diameter(mm)
|
φ25,φ28
|
|
Drafting range
|
4.2-12
|
|
Mechianical spindle speed(r/min)
|
1600
|
|
Twist range(twist/m)
|
18.0-80
|
|
Bobbin dimentions(mm)
|
φ45×445
|
|
Take up package dimentions(mm)
|
φ152×40
|
