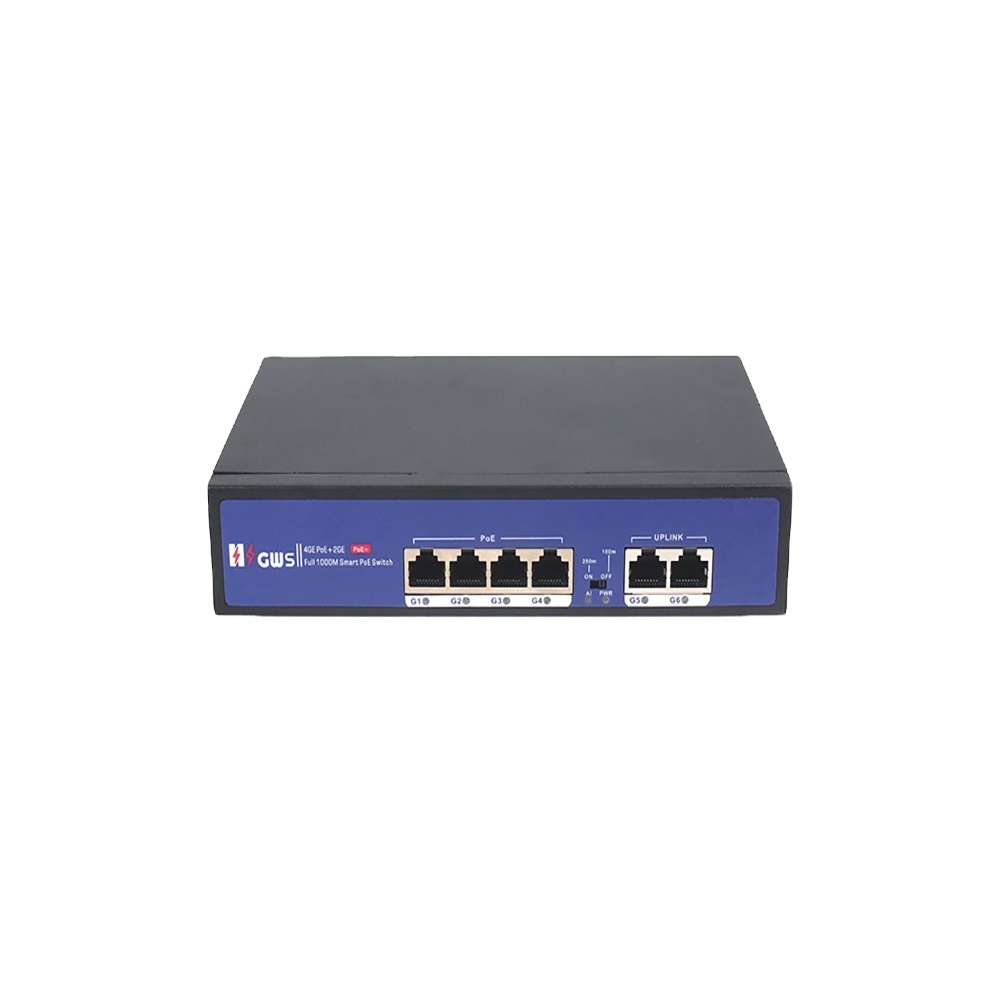

New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch
New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch

New Original Full Gigabit 6 Ports POE Switch with RJ45 Uplink Port Watchdog Extend 250m POE Switch

FOB Reference Price: Get Latest Price
≥2 Pieces
US $18
≥200 Pieces
US $17
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
HZGWS
Model Number:
GWS-3064PSD
Place of Origin:
Guangdong, China
Speed:
1000M
PoE Standard::
IEEE802.3af/at
Certification::
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty:
1 Year
Communication mode::
Full-Duplex & Half-Duplex
Installation:
Desktop installation optional wall mounting
Operation TEMP/ Humidity:
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity:
-40~+75°C, 5%~95% RH Non condensing
MAC:
2K

Quick Details

Transmission Rate:
10/100/1000Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
12 Gbps
Brand Name:
HZGWS
Model Number:
GWS-3064PSD
Place of Origin:
Guangdong, China
Speed:
1000M
PoE Standard::
IEEE802.3af/at
Certification::
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty:
1 Year
Communication mode::
Full-Duplex & Half-Duplex
Installation:
Desktop installation optional wall mounting
Operation TEMP/ Humidity:
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity:
-40~+75°C, 5%~95% RH Non condensing
MAC:
2K
Specification
Model
GWS-3064PSD
Interface Characteristics
Fixed Port
4*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port
Port 1-6/1-10 can support 10/100/1000Base-T automatic detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch
E: long-distance and VLAN isolation function (Default: OFF, Use:ON), After opening, the transmission rate of ports 1-4/1-8 is 10M
to achieve 250 meters transmission.
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Management Type
Unmanaged
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
12Gbps (Non-blocking)
Forwarding
Rate@64byte
8.93Mpps
MAC
2K
Buffer Memory
2M
Jumbo Frame
9.2Kbyte
LED Indicator
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: EXTEND (Green)
PoE & Power Supply
PoE Port
Port 1-4
Power Supply Pin
Default 1/2(+) 3/6(-)
Max Power Per Port
30W, IEEE802.3af/at
Total PWR / Input Voltage
65W/ (AC100-240V)
Power Consumption
Standby <3W, Full load <65W
Power Supply
Built-in power supply, AC100~240V 50-60Hz 1.0A
Physical Parameter
Heat Dissipation
No Fan natural cooling
Operation TEMP/ Humidity
-20~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity
-40~+80°C, 5%~95% RH Non condensing
Dimension (L*W*H)
200*130*40mm
Net /Gross Weight
<0.6kg / <1.0kg
Installation
Desktop, Wall-mounted
Certification & Warranty
Lightning Protection
Lightning protection: 4KV 8/20us, Protection level: IP30
Certification
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty
1 year, lifelong maintenance.
