- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XYX
-
Product Name:
-
Handheld Reader
-
Operating System:
-
Android 12
-
CPU:
-
MTK 6763- Octa-core
-
Style:
-
Handheld Computer
-
Screen Size:
-
5.7 inch
-
Weight:
-
600g
-
Barcode scanner:
-
2D Barcode Scanner and RFID UHF
-
Communication Interface:
-
2G/3G/4G/WIFI/BLUE TOOTH
-
Memory:
-
3 GB RAM + 32GB ROM
-
Display:
-
IPS LTPS 1440 x 720 touch screen
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYX
-
Product Name:
-
Handheld Reader
-
Operating System:
-
Android 12
-
CPU:
-
MTK 6763- Octa-core
-
Style:
-
Handheld Computer
-
Screen Size:
-
5.7 inch
-
Weight:
-
600g
-
Barcode scanner:
-
2D Barcode Scanner and RFID UHF
-
Communication Interface:
-
2G/3G/4G/WIFI/BLUE TOOTH
-
Memory:
-
3 GB RAM + 32GB ROM
-
Display:
-
IPS LTPS 1440 x 720 touch screen

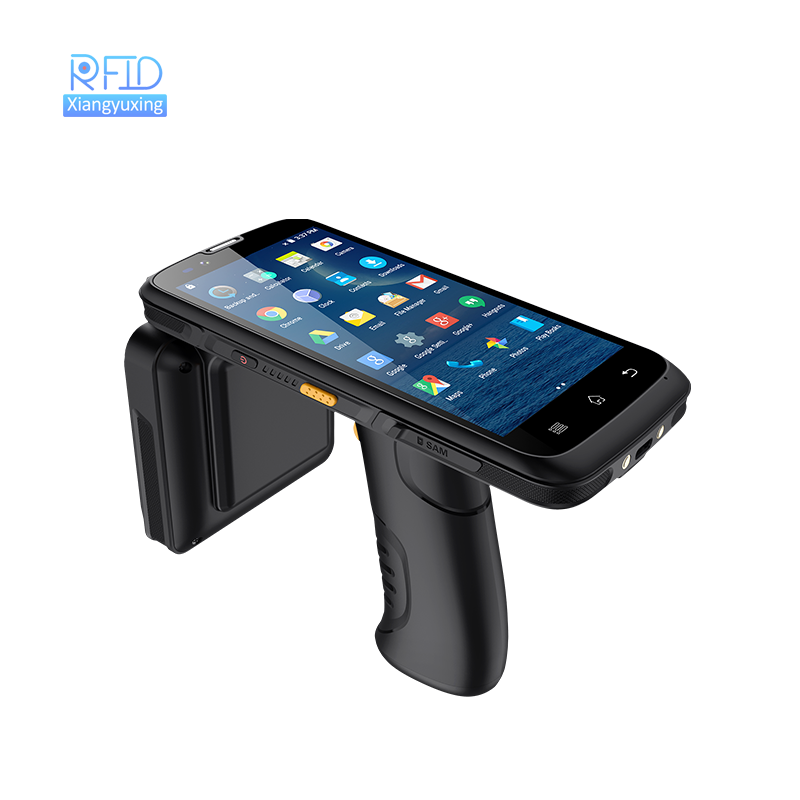

Best price Handheld barcode scanner android long range portable rfid reader gun for UHF pda reader
Product Description
| Type | Detail | Standard configuration | Optional | ||||
| Dimensions | 178*83*17mm | NA | |||||
| Weight | 580g | NA | |||||
| Color | Black (bottom shell black, front shell black) | ||||||
| LCD | Display size | 5.72 full screen | NA | ||||
| Display resolution | 5.7'' IPS LTPS 1440 x 720 | NA | |||||
| TP | Touch Panel | Multi-touch panel, Corning grade 3 glass toughened screen | NA | ||||
| Camera | Front camera | 5.0MP(optional) | NA | ||||
| Rear camera | 13MP Autofocus with flash | NA | |||||
| Speaker | Built-in | Built-in 8Ω/0.8W waterproof horn x 1 | NA | ||||
| Microphone | Built-in | Sensitivity: -42db, Output impedance 2.2kΩ | NA | ||||
| Battery | Type | Removable polymer lithium ion battery | NA | ||||
| Capacity | 3.7V/10000mAh | NA | |||||
| Battery life | About 8 hours (standby time > 300h) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Detail | Description | Optional configuration | ||||
| CPU | Type | MTK 6763- Octa-core | NA | ||||
| Speed | 2.0GHz | NA | |||||
| RAM | Memory | 3GB (2G or 4G optional) | NA | ||||
| ROM | storage | 32GB (16G or 64G optional) | NA | ||||
| Operating System | Operating System Version | Android 12 | |||||
| NFC | Built-in | Support ISO/IEC 14443A protocol, card reading distance: 3-5cm | HF | ||||
| Network connection | |||||||
| Type | Detail | Description | Optional | ||||
| WIFI | WIFI module | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI, | NA | ||||
| Bluetooth | Built-in | BT5.0(BLE) | NA | ||||
| 2G/3G/4G | Built-in |
CMCC 4M:
LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 |
NA | ||||
| GPS | Built-in | Support | NA | ||||
| Data Collection | |||||||
| Type | Detail | Description | Optional | ||||
| Fingerprint | Optional | Fingerprint module: capacitive USB press module | |||||
| Image size:256*360pi xei;FBI PIV FAP10 certification; | |||||||
| Image resolution:508dpi | |||||||
| International standard: | |||||||
| Authoritative certification: | |||||||
| Acquisition speed: single frame image acquisition time ≤0.25s | |||||||
| QR code | Optional | zebra se4710&CM60&NLS-N1 | |||||
| Optical resolution: 5mil | |||||||
| Scanning speed: 50 times/s | |||||||
|
Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
|||||||
| RFID function | Low frequency | Support 125k and 134.2k, effective recognition distance 3-5cm | Optional | ||||
| High frequency | 13.56Mhz,support 14443A/B;15693 agreement,effective recognition distance3-5cm | Optionanl | |||||
| UHF | CHN frequency:920-925Mhz | Optional | |||||
| US frequency:902-928Mhz | |||||||
| EU frequency:865-868Mhz | |||||||
| Protocol standard:EPC C1 GEN2/ISO18000-6C | |||||||
| Antenna parameter:spiral antenna(4dbi) | |||||||
| Card reading distance: according to different labels, the effective distance is 8~25m | |||||||
| Reliability | |||||||
| Type | Detail | Description | |||||
| Product reliability | Drop height | 150cm, Power on status | |||||
| Operating Temp. | ‘-20 °C to 50 °C | ||||||
| Storage Temp. | ’-20 °C to 60 °C | ||||||
|
Tumble
Specification |
Six side rolling test up to 1000 times | ||||||
| Humidity | Humidity: 95% Non-Condensing | ||||||
