Quick Details
-
Application:
-
CATV
-
Product name:
-
ATSC HD MPEG2 encoder modulator QAM modulation Cable TV modulator
-
Input Connector:
-
HD MI 1.4
-
Video encoding:
-
MPEG-2 HD encoding
-
Output:
-
ATSC or QAM RF
-
Output Level:
-
≥ 45 dBmV
-
Output Frequency Range:
-
50 ~ 999.999MHz
-
Management:
-
Control Keys; Web-NMS
-
Modulation:
-
ATSC, DVB-C J.83B
-
Power Supply:
-
DC 12V
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPR1901E
-
Application:
-
CATV
-
Product name:
-
ATSC HD MPEG2 encoder modulator QAM modulation Cable TV modulator
-
Input Connector:
-
HD MI 1.4
-
Video encoding:
-
MPEG-2 HD encoding
-
Output:
-
ATSC or QAM RF
-
Output Level:
-
≥ 45 dBmV
-
Output Frequency Range:
-
50 ~ 999.999MHz
-
Management:
-
Control Keys; Web-NMS
-
Modulation:
-
ATSC, DVB-C J.83B
-
Power Supply:
-
DC 12V
ATSC HD MPEG2 encoder modulator QAM modulation digital Cable TV modulator
Product Description

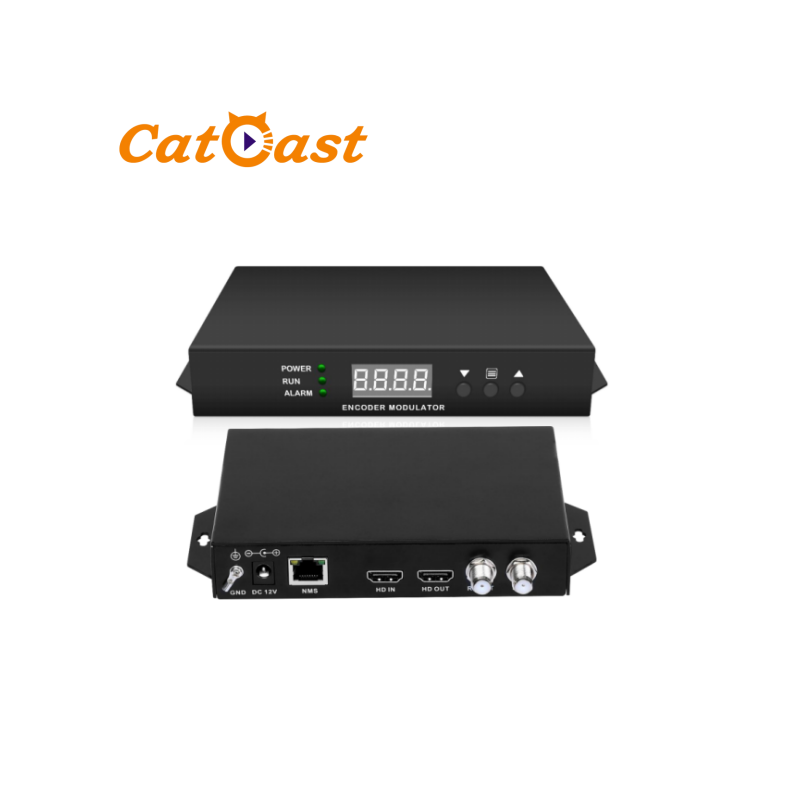

HPR1901E MPEG2 HD ATSC QAM encoder modulator is the most cost-effective and smallest form factor solution in the market. With the second HD output port and a RF loop port, user can easily install the system with different requirements. Extremely compact and wall mountable, It fits into any space virtually.
Key Features
1. 1 channels HD MI input, ATSC QAM RF output
2. Extremely compact with less than 3CM height
3. Support MPEG2 encoding
4. MER greater than 35dB
5. Integrated HD MI output for HD content quick display
6. High output level with 45dBmV MAX
7. Built-in Web GUI allow for easy set-up and control visa the web browser
Specification
|
ENCODING
|
|
|
|
|
||||
|
Input Connector
|
HD MI 1.4
|
|
|
|
||||
|
VIDEO
|
Encoding
|
MPEG2
|
|
|
||||
|
|
Input Resolution
|
1920*1080_60P; 1920*1080_50P; 1920*1080_60i;
1920*1080_50i; 1280*720_60P; 1280*720_50P
|
|
|
||||
|
|
Bitrate
|
2 ~ 18 Mbps
|
|
|
||||
|
AUDIO
|
Encoding
|
MPEG 1 Layer II
|
|
|
||||
|
|
Sample Rate
|
48KHz
|
|
|
||||
|
|
Bitrate
|
384kbps
|
|
|
||||
|
MODULATION
|
|
|
|
|
||||
|
ATSC
|
Standard
|
ATSC A/53 (6M)
|
|
|
||||
|
|
Constellation
|
8VSB
|
|
|
||||
|
|
MER
|
≥ 32 dB
|
|
|
||||
|
DVB-C J.83B
|
Standard
|
Annex B (6M)
|
|
|
||||
|
|
Constellation
|
64QAM, 256QAM
|
|
|
||||
|
|
MER
|
≥ 36 dB
|
|
|
||||
|
OUTPUT
|
|
|
|
|
||||
|
RF
|
Output Level
|
≥ 45 dBmV
|
|
|
||||
|
|
Output Frequency Range
|
50 ~ 999.999MHz
|
|
|
||||
|
|
Out-band Rejection
|
≥ 60dB
|
|
|
||||
|
LOOP OUTPUT
|
|
|
|
|
||||
|
HD MI OUT
|
HD MI 1.4
|
RF LOOP
|
F Connector
|
|
||||
|
SYSTEM
|
|
|
|
|
||||
|
Management
|
Control Keys; NMS;
|
LCN Insertion
|
YES
|
|
||||
|
Language
|
English
|
Upgrade
|
NMS
|
|
||||
|
GENERAL
|
|
|
|
|
||||
|
Power Supply
|
DC 12V
|
Power Consumption
|
|
|
||||
Related Products
16 Channels HD input, MPEG2 encoding, ATSC DVB-C QAM J.83B modulator
HPR1901E 16 channel HD ATSC QAM MEPG2 encoder modulator, 1 Combined RF output
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd
is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
