Quick Details
-
Power:
-
245 KW
-
Dimension(L*W*H):
-
20 m *12 m
-
Weight (KG):
-
23000
-
Product name:
-
hot rolling machine three rolling mill rolling mill flat wire rolling
-
Final product:
-
steel rebar round bar
-
Raw material:
-
steel billet40/50/ 70/60*70/60 mm
-
Output:
-
0.5-2t/h
-
Application:
-
rebar round bar rolling mill plant factory
-
After sales service provided:
-
Provide Technical Support
-
Fuel:
-
rolling mill worked by electricity
-
Item:
-
rebar round bar rolling mill
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengxu
-
Voltage:
-
380
-
Power:
-
245 KW
-
Dimension(L*W*H):
-
20 m *12 m
-
Weight (KG):
-
23000
-
Product name:
-
hot rolling machine three rolling mill rolling mill flat wire rolling
-
Final product:
-
steel rebar round bar
-
Raw material:
-
steel billet40/50/ 70/60*70/60 mm
-
Output:
-
0.5-2t/h
-
Application:
-
rebar round bar rolling mill plant factory
-
After sales service provided:
-
Provide Technical Support
-
Fuel:
-
rolling mill worked by electricity
-
Item:
-
rebar round bar rolling mill
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support

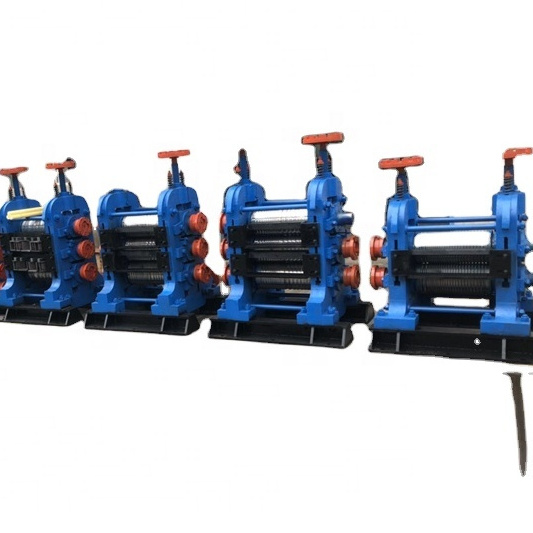

mills bar hot rolling machine three rolling mill rolling mill flat wire rolling mill
1. Produciton process
Melting furnace → Castiong machine → heating furnace → Φ300 Rough rolling mill +280 continuous rolling mill → Cut-to length cutter→Cooling bed→Baler
The following parameters in the tabel are just for reference.
|
Technical parameters |
||||||
|
Item |
Unit |
FF300×4 |
FF250×6 |
FF250×2 |
FF230×2 |
|
|
Roll diameter |
mm |
Φ280-Φ330 |
Φ230-Φ280 |
Φ230-Φ380 |
Φ200-Φ240 |
|
|
Roll working length |
mm |
700 |
500 |
500 |
350 |
|
|
Main motor |
Power |
KW |
630 |
800 |
240 |
110 |
|
Rotating speed |
FPm |
590 |
590 |
738 |
738 |
|
|
Distribution box |
Module |
mn |
12 |
10 |
10 |
8 |
|
Center distance |
mm |
1350 |
1250 |
1250 |
1200 |
|
|
Tooth width |
mm |
615 |
500 |
450 |
400 |
|
|
Gear box |
Module |
mn |
12 |
10 |
10 |
8 |
|
Center distance |
mm |
310 |
260 |
260 |
220 |
|
|
Tooth width |
mm |
604 |
550 |
450 |
500 |
|
|
Driving type |
Cardan shaft |
Cardan shaft |
Cardan shaft |
Cardan shaft |
||
2. The final products of the rolling mill
3.Company profile
Gongyi Hengxu Machinery Manufacture Co, Ltd is a leading professional supplier of R&D, produce, sales and after-sale service for rolling mill. Our company specializes in producing rolling mill, hot rolling mill, cold rolling mill, section bar rolling mill.
We also offer accessories of rolling mill: roller bed, cooling bed, hot saw, steel pusher,straightening machine, elevator platform, flying shear, and old line retrofitting.
4.Certifications
We have implemented a strict and complete quality control system, which ensures that each prod-uct canmeet quality requirements of customers. Besides, all of our products have been strictly ins-pected before shipment. Our products have attained certification as follows;
“AAA grades trustworthiness enterprise of China”,
“Henan Province Product Quality Brand”,
“Henan Province Advanced Unit” .
"ISO9000 International Quality System Certification "
"license of import and export.certification“
5.Cooperation
We have been selling our products to over 20 countries: UK, France, Kazakhstan, Russia, Malaysia, Vietnam, Burma, Bengal, Uzbekistan, Sudan, Zimbabwe, Zambia, Algeria, Egypt etc.
Do you find your ideal product?Contact with me~
