Quick Details
-
Model Number:
-
KSP18
-
Max. Current:
-
DC20A\10A AC 10A \16A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
8 Gang Marine Rocker Switch Panel with Circuit Breaker
-
Color:
-
Black
-
Panel Size:
-
236*120mm
-
MOQ:
-
20pcs
-
Packing:
-
Blister Box Packing
-
Switch Function:
-
8 sets, 3pin, ON-OFF
-
LED indicator:
-
Red
-
Certificate:
-
IP66, CE
-
Input voltage:
-
DC 12-24V
-
Circuit Breakers:
-
5A*4, 10A*2, 15A*2
Quick Details
-
Max. Voltage:
-
30V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KETO
-
Model Number:
-
KSP18
-
Max. Current:
-
DC20A\10A AC 10A \16A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
8 Gang Marine Rocker Switch Panel with Circuit Breaker
-
Color:
-
Black
-
Panel Size:
-
236*120mm
-
MOQ:
-
20pcs
-
Packing:
-
Blister Box Packing
-
Switch Function:
-
8 sets, 3pin, ON-OFF
-
LED indicator:
-
Red
-
Certificate:
-
IP66, CE
-
Input voltage:
-
DC 12-24V
-
Circuit Breakers:
-
5A*4, 10A*2, 15A*2

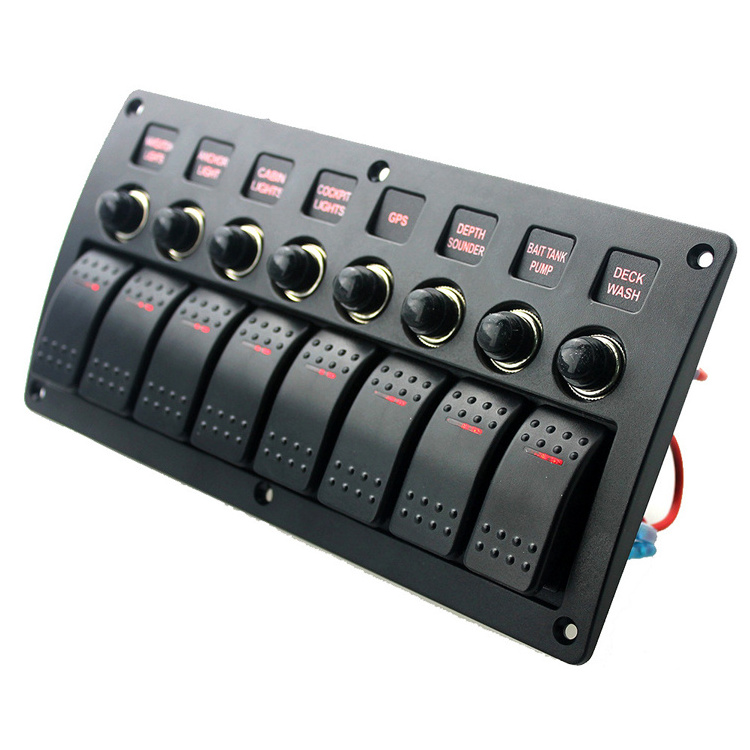

12V 24V LED Waterproof 8 Gang RV Car Yacht Marine Boat Rocker Switch Panel with Circuit Breaker
Description
This product is Car Auto Boat Rocker Panel Circuit Breakers, which is mainly made of durable flame-resistant ABS and nylon material. It can be used to control all electronic device in caravan/marine.
Specification
- Color:black
- Size: 235*120mm(9.25" x 4.72")
- Material: PA Nylon 66 Flame Reterdant
- Voltage:12-24V
- Rocker Switch:8 gang rocker switches with 3pin
- LED indicator: Red led color
- Loop Circuit:ON-OFF
- Circuit Breakers: 5A*4, 10A*2, 15A*2
- Max power:260W
- Operating Temperature:-25℃-80℃
- Electrical Life:10000 cycles at full load
- IP Rating:IP66
Usage: headlight switch, fog lamp switch, depending on the width of the light switch, switch use car refrigerator, car cleaners switch, horn switch, pump switches, etc.
Installation: Suitable for ships, boats, RV, buses and other cars
Accessories: 4 self-tapping screws
Advantages:
1. This switch panel with 8 switches, can simultaneously control 8 electrical switching state.
2. All ships and cars can be installed which Input voltage is 12-24V.
3. Products for high and low temperature resistance, flame resistance ABS environmental protection material, can work at -25℃-80℃.
