LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting
LDA model single girder overhead crane general A3 workshop electric hoist lifting

LDA model single girder overhead crane general A3 workshop electric hoist lifting

FOB Reference Price: Get Latest Price
≥1 Sets
US $4800
≥3 Sets
US $4500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan, China
Brand Name:
Kuangyuan
Weight (KG):
3200 kg
Name:
General Single Girder Overhead Crane
Lifting height:
6~30m
Lifting speed:
0.35~8m/min
Power Source:
3 Phase 380V 50hz, Custmizable
Work Duty:
A3
Control method:
Ground control
Travel speed:
20m/min
Hoisting mechanism:
CD/MD Electric wire rope hoist
Capacity:
1~32t

Quick Details

Max. Lifting Height:
2.5m, 3M, 4M, 2M, Other, 5m
Max. Lifting Load:
1T
Span:
7.5~28.5M, 14m
Place of Origin:
Henan, China
Brand Name:
Kuangyuan
Weight (KG):
3200 kg
Name:
General Single Girder Overhead Crane
Lifting height:
6~30m
Lifting speed:
0.35~8m/min
Power Source:
3 Phase 380V 50hz, Custmizable
Work Duty:
A3
Control method:
Ground control
Travel speed:
20m/min
Hoisting mechanism:
CD/MD Electric wire rope hoist
Capacity:
1~32t
PRODUCTS DESCRIPTION

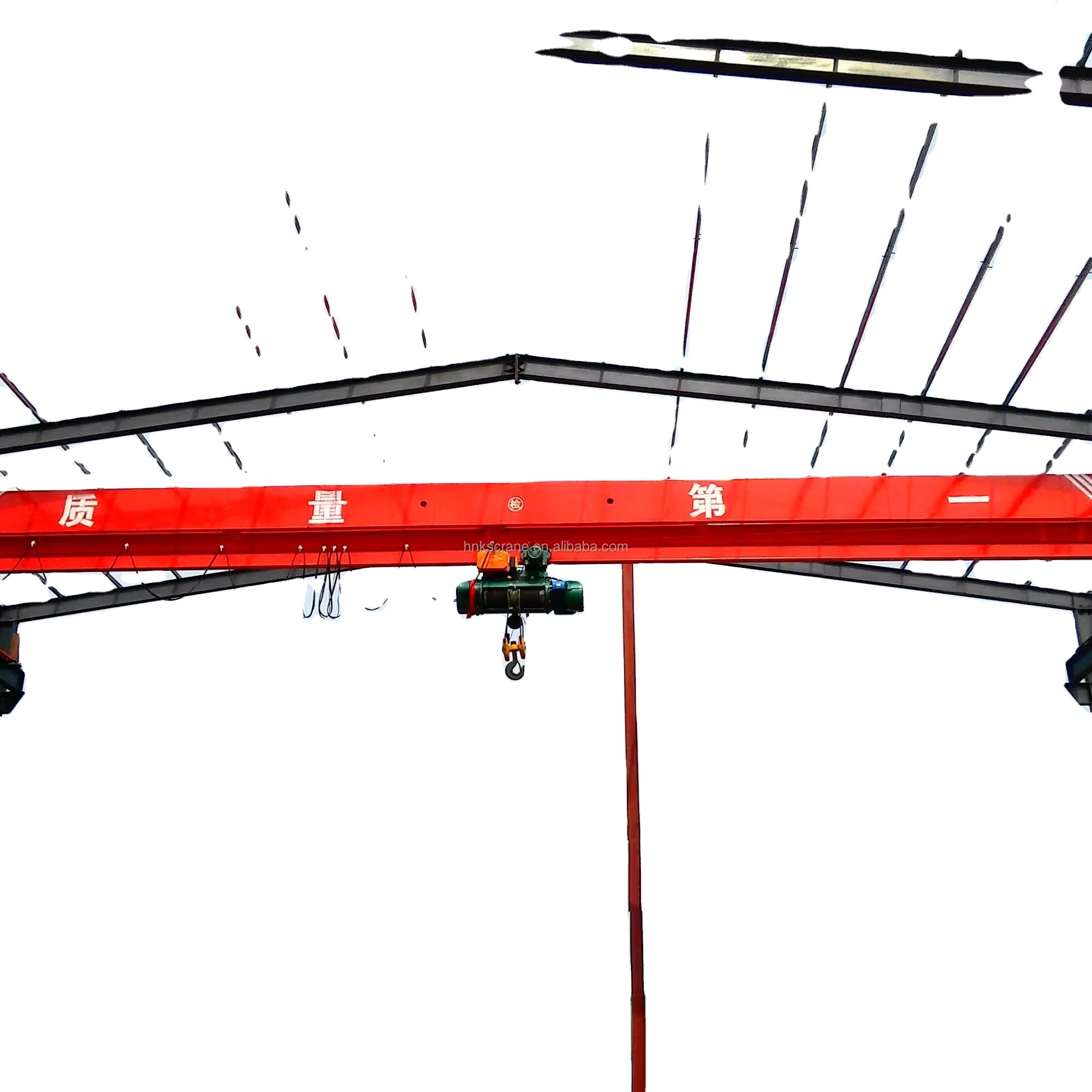

LDA Single Girder Overhead Crane

LDA Single Girder Overhead Crane is widely used in plants warehouses, steel industries machine shops, material stocks to lift goods all across the world . It is prohibited to use the equipment in the combustible, explosive or corrosives environment ( Click here to learn more about explosion proof overhead crane ). It has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, side way and ends in order to satisfy the users' choice users' different conditions.
LDA single girder overhead crane is designed to cover a wide range of modern industrial demands, providing excellent value for money with no compromise on performance.
Contact us for more LDA details.
FEATURES AT A GLANCE
1). Light structure, easy installation and maintenance; low cost maintenance, long working life;
2). Standard components and controls to ensure reliability;
3). Reasonable structure, strong bearing capacity ( Load tested up to 125% from tests undertaken in our own workshops) ;
4). Low noise, soft starting and stopping ;
5). Reduced scheduled maintenance and emergency downtime
10). High quality structural assembly ensures compliance with ISO Standard.



PRODUCT CONFIGURATION
1). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, TOP quality control;
2). Heavy duty slip ring motor, or Sq.cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth
running.
3). Siemens main electric parts are used for durable and safe operation
Main Girder
Structure: Welding structure of steel plate and I-steel
Technology: One-off forming U shaped groove.
Electric Hoist
Model: CD, MD Capacity: 0.25-32t Lifting height: >3m Usage: Workshop, mines, habour etc.
End Girder
The end girder is connected with the main girder by dolts and nuts for easy transportation and installtion.

Hook

Capacity: 1-450t Type: Single hook, double hook
Material: forging
Usage: Lifting various objects

Wireless Remote Control

Model: F21 F23 F24
Speed: Single speed, double speed. VFD control
Usage: For overhead crane, gantry crane, electric hoist etc.

Wheels

Process: Casting, rough machining, QT, finish machining
Material: forging
Usage: Crane Travelling
PRODUCT SPECIFICATIONS
Safety device:
1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Lifting limit switch and traveling limit switch.
4.Emergency stop system.
5.Zero voltage protection.
6.Phases protection device and so on.
Click to customize your parameters!
Lifting Capacity
Item
T
1/ 2 / 3 / 5 / 10 ton
16 / 20 ton
Span
Power
m
7.5~22.5m
7.5~31.5
Speed
Lifting
MD1 hoist
m/min
8/0.8 (7/0.7)
3.5/0.35
3
Operating weight
CD1 hoist
m/min
8 (7)
3.5
4
Max. tractive force
Traveling of electric hoist
m/min
20
20
5
Traveling of crane
m/min
20/30
Wheel diameter
mm
Φ270
Width of trail
Engine displacement
mm
37~70
Operational Model
Remote control / Ground handle
Working Duty
Max. torque
A3
Power Supply
According to your demands
COMPANY PROFILE


PRODUCT PACKING
Fast Delivery
Henan Mine has sound production security system and experienced workers to ensure timely or early delivery period.
Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
