Quick Details
-
Warranty(Year):
-
3-Year
-
Input Voltage(V):
-
AC100-277V or AC100-240V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMART
-
UGR:
-
10-19
-
Input:
-
100-240V, 50-60Hz
-
Dimmable:
-
Triac/0-10V/Dali ordered
-
Series Power:
-
7W 10W 15W 20W
-
Beam angle:
-
15° 24° 38°
-
CRI:
-
Ra80, Ra90, Ra97 (R9>95)
-
Power Efficiency:
-
>0.95
-
Installation Way:
-
Recessed
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
95
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
3-Year
-
Input Voltage(V):
-
AC100-277V or AC100-240V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SMART
-
UGR:
-
10-19
-
Input:
-
100-240V, 50-60Hz
-
Dimmable:
-
Triac/0-10V/Dali ordered
-
Series Power:
-
7W 10W 15W 20W
-
Beam angle:
-
15° 24° 38°
-
CRI:
-
Ra80, Ra90, Ra97 (R9>95)
-
Power Efficiency:
-
>0.95
-
Installation Way:
-
Recessed

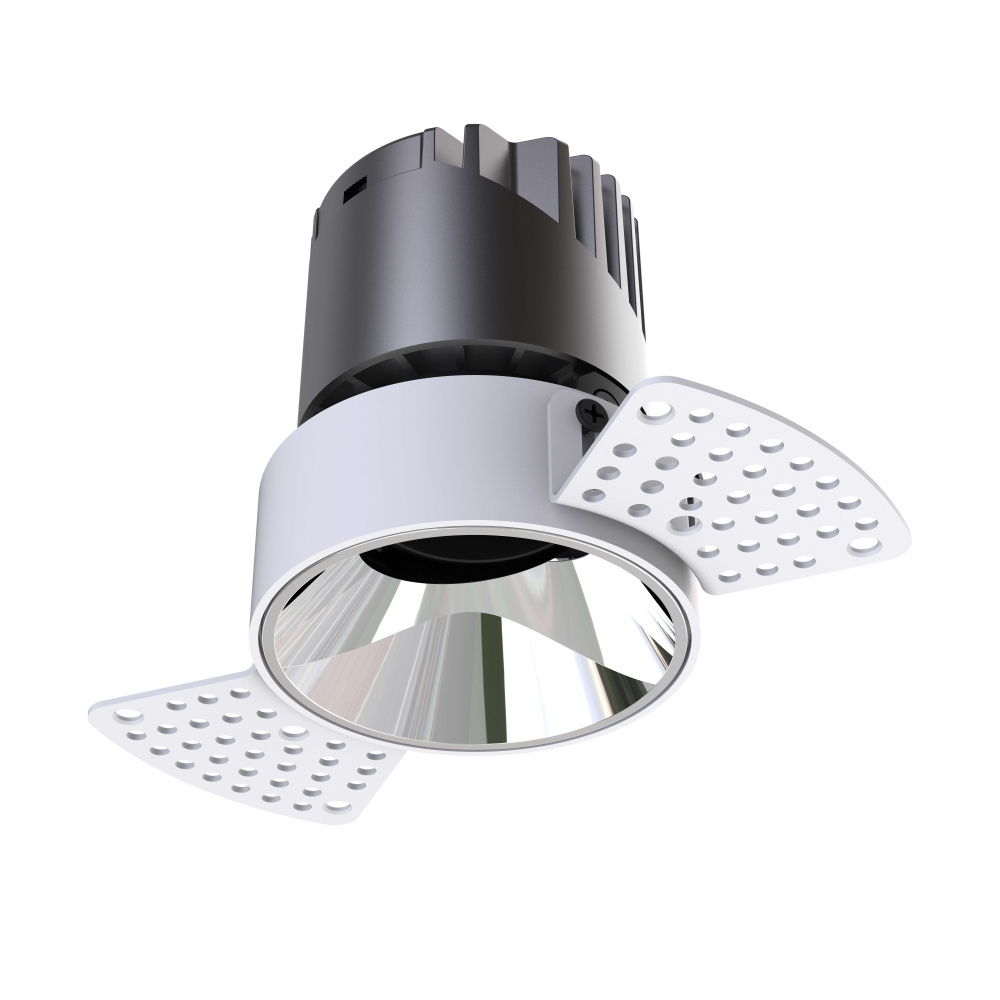

MODEL NO.: intergrated dia-casting recessed Ceil down light
POWER: 5W 7W 10W 15W 20W 30W
MATERIAL: Intergrated design Aluminum
CCT: 2700K, 3000K, 4000K, 5000K, 6000K White, DIM TO WARM, Tunable white
CRI: Ra80, Ra90, Ra97
UGR: 10-19
Output Efficiency: 110~130lm/W
INPUT: Ac100-240V, 50-60Hz, No-Flickering
DIMMABLE: Triac Dim, 0-10V Dim, Dali Dim, CCT-Dim (Ordered)
Warranty: 5 years
Application: Products are widely used as indoor main illumination lighting in the office,commercial center,shopping mall,supermarket,factory,etc.
PRODUCTS PARAMETERS
| Model Number | SM-DA05 | SM-DA07 |
SM-DA10
|
SM-DA15 | SM-DA20 | SM-DA30 |
| LED Chip | COB | COB | COB | COB | COB | COB |
| System Power | 5W | 7W | 10W | 15W | 20W | 30W |
| Input Voltage | AC100-277V / AC100-240V | |||||
| Frequency Range | 50Hz~60Hz | |||||
| Led Initial Flux(lm) | 500lm (±50) | 700lm (±50) | 1000lm (±100) | 1500lm (±100) | 2000lm (±150) | 3000lm (±200) |
| Dimension(mm | 63x63mm |
85x71mm
|
85x76mm | 85x93mm | 105x99mm |
130x115mm
|
| Cut-out | 75mm |
75mm
|
75mm | 75mm | 95mm |
120mm
|
| Color Rendering Index | Ra80, Ra90, Ra97 | |||||
| UGR | 10-19 | |||||
| Beam Angle | 15° 24°36° | |||||
| IP Rank | IP52 | |||||
| Color of Shell | White, Black | |||||
| Storage Temperature | -25°-45° | |||||
| Working Temperature | -45°-65° | |||||
| Fireproof clasee |
V0 |
|||||
| Certification | CE, Rohs, C-tick, FCC, PSE, REACH | |||||
| Optical Data |
IES |
|||||
>>>Click here to get catalogues now
SMART is also quite experienced on ODM&OEM cooperation with customers for personalized products, all new ideas are welcome here.
Q1. Do you have certificate for your products ?
A: Yes, for all of our products have CE (EMC+LVD), Rohs, C-tick, FCC, PSE, REACH, ERP etc. Certification
Q2. What's the warranty?
A: Our Commercial Light are 5 years warranty.
Q3. Can I have the sample light and What's the MOQ?
A: We very welcome you to set sample order to feel our quality, so MOQ=1, and mixed sample will acceptable.
Q4. How long is the delivery time?
A: Sample order is 3-5 days, massive order is 7-20 days depends on the quantity.
Q5. What's your payment terms please?
A: T/T in advance, L/C, Paypal, West Union.
Q6. How to move the order
A: Usually by Express DHL, FEDEX, TNT or UPS, and it will cost 3-5 days on the way, when the order is big, or By Air or By sea cost 10-25days on the way.
Q7. Is it okay to Print your company name or Logo on lamps
A: Yes, pls inform us before ordering
Q8. How to process one orde
A: 1> pls let me know your needed and requirement
2>according as your needed, we quote you all the cost
3> pls confirm all the details on the PI, and arrange the deposit
4> we arrange the production, and ship to you by express and tell you the tracking number to follow
