Features of brick wall reinforcement mesh
* High rigidity, strength and stability.
* Welding spots of warp wire and weft wire are on the same surface.
* Continuous length of joint reinforcement.
* Corrosion and rust resistant.
* Durable and long service life.
Applications of brick wall reinforcement mesh
* Block slab structure reinforcing.
* Hollowed slabs reinforcing.
* Building wall reinforcing.
* Support wall reinforcing.
* Concrete ground reinforcing.
* Bridge reinforcing.
* Bank reinforcing.
* Airport reinforcing.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Product name:
-
Expanded Metal Mesh
-
Usage:
-
Construction
-
Color:
-
Sliver
-
Hole shape:
-
Diamond Hole
-
Feature:
-
Corrosion Resistance
-
Surface treatment:
-
Electric Galvanized
-
Length:
-
15m
-
Certification:
-
ISO9001:2008
-
Width:
-
15cm -20cm
-
Thickness:
-
0.5mm-1.0mm
Quick Details
-
Material:
-
low carbon steel
-
Type:
-
Expanded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Product name:
-
Expanded Metal Mesh
-
Usage:
-
Construction
-
Color:
-
Sliver
-
Hole shape:
-
Diamond Hole
-
Feature:
-
Corrosion Resistance
-
Surface treatment:
-
Electric Galvanized
-
Length:
-
15m
-
Certification:
-
ISO9001:2008
-
Width:
-
15cm -20cm
-
Thickness:
-
0.5mm-1.0mm

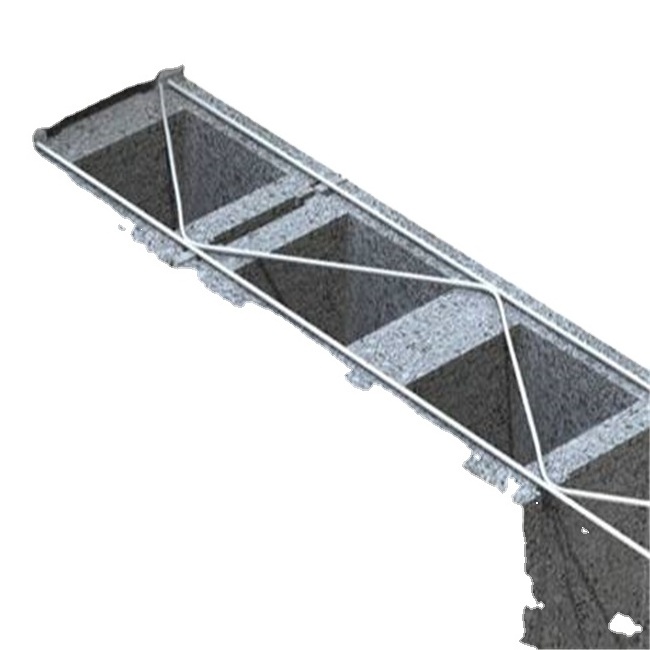

Brick Wall Reinforcement Mesh for Reinforced Concrete Uses
Brick wall reinforcement mesh is welded wire sheet for reinforcement concrete construction, and there are two types of this kind of mesh, truss-mesh reinforcement and ladder-mesh reinforcement. And its feature is that welding spots of warp wire and weft wire are on the same surface. With the galvanized surface, it is corrosion and rust resistant, and with the high rigidity and longservice life, it is mainly used for brick wall reinforcing.
Specifications of brick wall reinforcement mesh
* Material: carbon steel or stainless steel.
* Surface treatment: galvanized.
* Wire diameter: 2.5–6 mm.
* Panel width: 5, 10, 15, 20, 25, 30 cm.
* Pane length: 3 m.
* Spacing: 40 cm.
* Styles: truss mesh reinforcement or ladder mesh reinforcement.
* Package: carton or pallet or plastic wrapped.
* Material: carbon steel or stainless steel.
* Surface treatment: galvanized.
* Wire diameter: 2.5–6 mm.
* Panel width: 5, 10, 15, 20, 25, 30 cm.
* Pane length: 3 m.
* Spacing: 40 cm.
* Styles: truss mesh reinforcement or ladder mesh reinforcement.
* Package: carton or pallet or plastic wrapped.
Product Description
galvanized brick reinforcement coil mesh / truss lath with hole size 10x25mm
Specifications of expanded metal brick mesh
* Material: low carbon steel, galvanized steel, aluminum steel or stainless steel.
* Thickness: 0.35 mm - 0.5 mm.
* Mesh size: 15 mm × 25 mm.
* Width: 4 inches to 12 inches.
* Length: 10 m - 100 m.
* Material: low carbon steel, galvanized steel, aluminum steel or stainless steel.
* Thickness: 0.35 mm - 0.5 mm.
* Mesh size: 15 mm × 25 mm.
* Width: 4 inches to 12 inches.
* Length: 10 m - 100 m.
Specification
|
Thickness
|
Width
|
Length
|
Recommended application
|
|
0.35-0.5mm
|
63mm
|
10-100m
|
For 100mm wall
|
|
0.35-0.5mm
|
120mm
|
10-100m
|
For 150mm wall
|
|
0.35-0.5mm
|
175mm
|
10-100m
|
For 200mm wall
|
|
0.35-0.5mm
|
225mm
|
10-100m
|
For 250mm wall
|
Features of expanded metal brick mesh
* Low carbon steel for economical and low cost.
* Galvanized steel for corrosion and rust resistance.
* Stainless steel expanded metal brick mesh for durable life and chemical stability.
* Easy to operate and need no special skills.
* Lightweight and easy to transport.
* Solid structure help to reinforce the base of the wall.
* Avoid cracking and resist vibration.
* Widely used in various plastering engineering.
* Low carbon steel for economical and low cost.
* Galvanized steel for corrosion and rust resistance.
* Stainless steel expanded metal brick mesh for durable life and chemical stability.
* Easy to operate and need no special skills.
* Lightweight and easy to transport.
* Solid structure help to reinforce the base of the wall.
* Avoid cracking and resist vibration.
* Widely used in various plastering engineering.
Packing & Delivery
packed in rolls
