High Quality hot foil stamping machine for glass bottles/Plastic Bottle round bowl Stainless steel cylinder lid

High Quality hot foil stamping machine for glass bottles/Plastic Bottle round bowl Stainless steel cylinder lid

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

≥3 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220 / 380V 60 / 50Hz

Place of Origin:: Guangdong, China

Brand Name:: LC

Model Number:: LC-TH-300R

Usage:: Lipstick/Pencil/Bottle Printer, Card Printer

Dimensions(L*W*H):: 1300 * 800 *1810mm

Weight:: 295 KG

Heating plate size:: 400*300mm

Work Table size:: 300 * 400mm

Stamping head adjustable stroke:: ≤70mm hot head outer diameter 100mm inner diameter of 80mm

Max stamping diameter:: 300mm

Stamping temperature range of options:: from room temperature to 280 degrees Celsius

Workpiece taper Range:: 5-20 degrees

The maximum printing speed:: 500pcs / hr

Stamping pressure range of options:: ≤2500kgf (7bar)

Air consumption:: 165L / min

Quick Details

Condition:: New

Plate Type:: Letterpress

Color & Page:: Multicolor

Voltage:: 220 / 380V 60 / 50Hz

Place of Origin:: Guangdong, China

Brand Name:: LC

Model Number:: LC-TH-300R

Usage:: Lipstick/Pencil/Bottle Printer, Card Printer

Dimensions(L*W*H):: 1300 * 800 *1810mm

Weight:: 295 KG

Heating plate size:: 400*300mm

Work Table size:: 300 * 400mm

Stamping head adjustable stroke:: ≤70mm hot head outer diameter 100mm inner diameter of 80mm

Max stamping diameter:: 300mm

Stamping temperature range of options:: from room temperature to 280 degrees Celsius

Workpiece taper Range:: 5-20 degrees

The maximum printing speed:: 500pcs / hr

Stamping pressure range of options:: ≤2500kgf (7bar)

Air consumption:: 165L / min

Alibaba express hot foil stamping machine hot foil printing press for glass bottles

Product Description

This machine is used to plane and round objects heat transfer and hot stamping.

Alibaba express hot foil stamping machine hot foil printing press for glass bottles

Item

Specification

Qty

Unit Price

Plane and

Round Heat press

printing

machine

1.Model:TH-300R

2.Wattage: 220 / 380V 60 / 50Hz
3. Heating plate size: 400 * 300mm
4.Work Table size: 300 * 400mm
5. Stamping head adjustable stroke: ≤70mm hot head outer diameter 100mm inner diameter of 80mm
6. Max stamping diameter: φ300mm
7. Stamping temperature range of options: from room temperature to 280 degrees Celsius
8. Workpiece taper Range: 5-20 degrees
9. Stamping pressure range of options: ≤2500kgf (7bar)

10. Swing cylinder stroke adjustment range: ≤125mm

11. Air consumption: 165L / min

12. Dimensions: 1300 * 800 * 1810mm

13. Application area: Flat and round object Heat transfer machine

14. The maximum printing speed: 500pcs / hr

1set

$6000-

7000

Remark:

1. Price Term: FOB Shenzhen, China.

2. Payment Term: 100% T/T in advance.

3. Loading time: 7days after receipt of payment.

4. Package: machine wrapped with PVC film, package in wooden case.

Features:

1.An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.

2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3 Stamping pressure, temperature, hot pressing time is adjustable.

4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.

5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.

6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning

7 Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.

8 The height of lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be customized cylinder (super seal wear).Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9 The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

10 The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development and so on.

11 Equipped with emergency stop safety devices to protect the safety of the operator.

Detailed Images

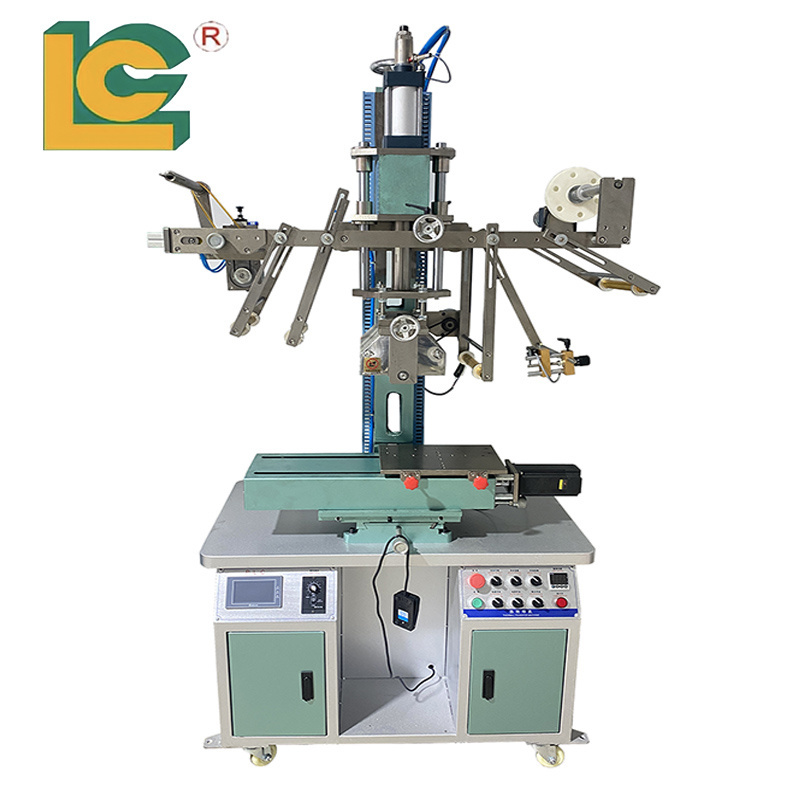

Alibaba express hot foil stamping machine hot foil printing press for glass bottles machine image:
