Quick Details
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
shanghai,China
-
Brand Name:
-
ausin group
-
Dimension(L*W*H):
-
1996*1040*1394
-
Weight:
-
180 KG
-
Certification:
-
CE Certification
-
Marketing Type:
-
New Product 2020
-
Product name:
-
Carton Sealer
-
Feature:
-
High Reliability
-
Advantage:
-
High-end Intelligent Control
-
Suitable for:
-
Carton Packing
-
Usage:
-
Specifications' Cartons
-
Capacity:
-
20cartons/min
-
Color:
-
Customzied
-
Packing:
-
Wooden Package
Quick Details
-
Packaging Type:
-
Cartons, case
-
Packaging Material:
-
Plastic, Paper
-
Driven Type:
-
Electric
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
shanghai,China
-
Brand Name:
-
ausin group
-
Dimension(L*W*H):
-
1996*1040*1394
-
Weight:
-
180 KG
-
Certification:
-
CE Certification
-
Marketing Type:
-
New Product 2020
-
Product name:
-
Carton Sealer
-
Feature:
-
High Reliability
-
Advantage:
-
High-end Intelligent Control
-
Suitable for:
-
Carton Packing
-
Usage:
-
Specifications' Cartons
-
Capacity:
-
20cartons/min
-
Color:
-
Customzied
-
Packing:
-
Wooden Package
Product Application

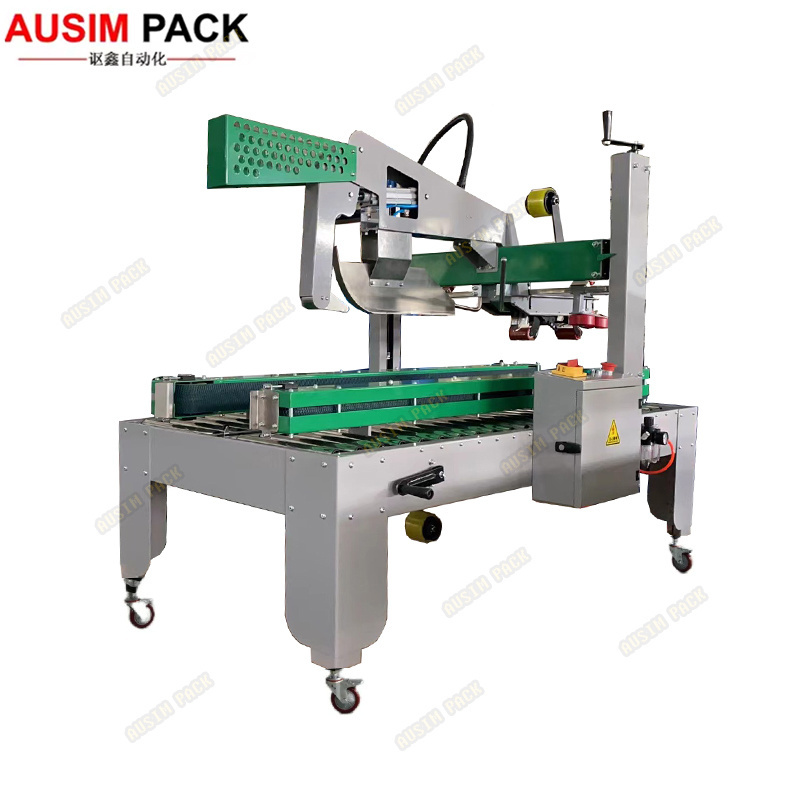

SFX-05 high quality automatic adhesive carton sealing machine adopt left and right belt drive and pneumatic folding cover mechanism, Acme thread screw adjustable mechanism for height and width, high strength structure, make the machine performance reliable, and can meet continuously heavy duty sealing work in the production line. Can manually adjust the sealing size for the same specifications carton sealing together.
Main Specification:
1.Imported advanced parts, electrical and pneumatic components, high quality, stable performance.
2.The height and width can be adjustable for different dimension of carton.
3.Left and right belt drive design for drive more stable during working process.
4.Bigger electrical machine, faster conveyor speed.
5.Cutter safety system to prevent hands from stabbed by the cutter.
6.Especially suitable for more heavier goods.
7.48-60mm width of adhesive tape.
8.Simple operation, convenient and easy adjustment, fast sealing speed, high efficiency, strong and durable
|
Model
|
|
SFX-05 Automatic Flap Folder Box Sealing Machine
|
|
||
|
Conveyor
|
|
20M/Min
|
|
||
|
Carton Sealing size
|
|
W150-500mm*H150-500mm ,L 200-600mm
|
|
||
|
Driven
|
|
AC Gear Motor
|
|
||
|
Noise
|
|
<
75DB
|
|
||
|
Environment
|
|
Humidity
<
98%; Temperature -10-40 degree
|
|
||
|
Packing Material
|
|
BOPP Adhesive tape
|
|
||
|
Sealing tape width
|
|
48/60/75mm
|
|
||
|
Machine dimension
|
|
L1800*W800*H1650mm
|
|
||
|
Pneumatic
|
|
0.4-0.6Mpa
|
|
||
There is special single inspection department is for qualified parts and famous brand part selection control.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
