Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
2 T
-
Power (kW):
-
40
-
Heating element:
-
SIC/MoSi2 heating rods
-
Capacity:
-
Customized
-
Color:
-
Customized
-
Max temperature:
-
1600C
-
Heating rate:
-
0-30 C/min
-
Fuel:
-
Electric Powered
-
Frequency:
-
50Hz/60Hz
-
Advantage:
-
Continuous Working Environment Friendly
-
Function:
-
Heat Treatment Process
-
Certification:
-
ISQ/CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot Product
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
2 T
-
Power (kW):
-
40
-
Heating element:
-
SIC/MoSi2 heating rods
-
Capacity:
-
Customized
-
Color:
-
Customized
-
Max temperature:
-
1600C
-
Heating rate:
-
0-30 C/min
-
Fuel:
-
Electric Powered
-
Frequency:
-
50Hz/60Hz
-
Advantage:
-
Continuous Working Environment Friendly
-
Function:
-
Heat Treatment Process
-
Certification:
-
ISQ/CE

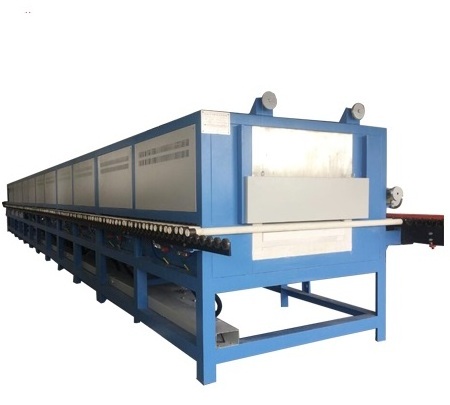

Industrial continuous ceramic brick making roller kiln glass ceramic metal annealing machinery
This continuous kiln is mainly used in the production of ceramic tiles and other ceramic building materials.It is continuous heating and working, it is made by the rotation of the ceramic tube as the roller kiln vehicle the ceramic tiles or bricks materials in the kiln inner chamber.Products are heated uniformly by the upper and lower heaters(electric resistance wires,silicon carbide(SIC) or silicon molybdenum rods(MoSi2) ). The rotation of the ceramic tube with high temperature(high-alumina),or SiC depending on the calcination temperature and ar driven by independent controller.Products are conveyed through preheating,calcinating and cooling zones on rotating rollers and are placed on selters according to the shape and dimensions.
Heat Treatment muffle Furnace Laboratory Heating Equipments Working Temp : 1100°C
This type roller kiln can according customer requirements to section different zone:
Preheating Zone;
Heating Zone;
Cooling down Zone;
The temperature Category: 600 ° C 800 ° C 1000 ° C 1200 °C 1400 °C 1600 °C different types.we support OEM Orders for you!
|
Model |
HK-RK-1000C |
|
Chamber Size(L*W*H) |
3000*300*150mm Can customize |
|
Preheating zone |
1000mm Can customize |
|
Heating zone |
1000mm Can customize |
|
Cooling down zone |
1000mm Can customize |
|
Working Temp/Brand |
950°C |
|
Max Temp |
1000°C Can customize |
|
Heating Rate |
1 °C/h to 30 °C/min adjustable |
|
Temperature Accuracy |
+/-1°C |
|
Temperature Controller |
30 steps programmable and auto control |
|
Thermocouple |
S/B Type |
|
Heating Element |
Silicon carbon rods(SiC)/ Silicon molybdenum rods(MoSi2) ) |
|
Working Voltage AC |
AC 380V,50/60 Hz (or according to your requirements) |
|
Max. Power |
60KW |
|
Furnace sturcture |
Double shell steel case with air cooling . |
Lab Muffle Furnace Laboratory Heating Equipments Power : 8
Furnace Heating elements :
Heat Treatment muffle Furnace Laboratory Heating Equipments Net weight(Kgs) 350
Lab Muffle Furnace Laboratory Heating Equipments Chamber size(mm) 200x200x200
Muffle Furnace Laboratory Heating Equipments Voltage AC : 220V/380V,50Hz/60Hz.
