Quick Details
-
Frequency range(±3dB):
-
40 Hz-20 kHz
-
Rated power & Peak power:
-
1600W/3200W
-
Impedance:
-
4 ohms
-
coverage( HXV):
-
90X50 degree
-
Sensitivity(1W/1M):
-
98dB
-
Max SPL(1M):
-
136dB
-
Product size:
-
1066x 568x 573mm
-
Gross weight:
-
51KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
OEM:
-
small quantity oem order available
-
Drivers:
-
ferrite 2x15 inch LF ,ferrite 1x3.5 inch HF
-
Frequency range(±3dB):
-
40 Hz-20 kHz
-
Rated power & Peak power:
-
1600W/3200W
-
Impedance:
-
4 ohms
-
coverage( HXV):
-
90X50 degree
-
Sensitivity(1W/1M):
-
98dB
-
Max SPL(1M):
-
136dB
-
Product size:
-
1066x 568x 573mm
-
Gross weight:
-
51KG
Product Description

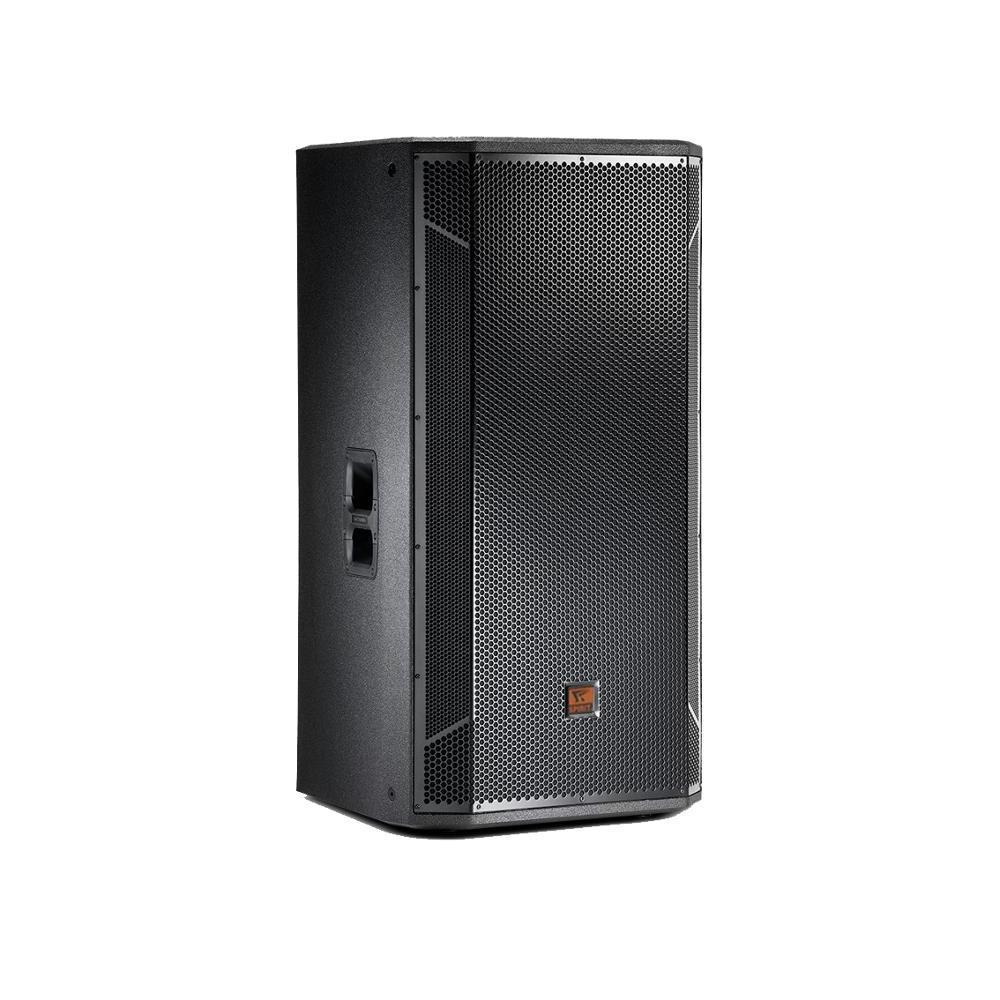

Passive dual 2 two 15 inch DJ audio Ferrite diver monitor stage Concert speakers
PSTX825 is a dual 15" two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ’s as their primary PA, used as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.
Compact and very high-power.
Dual (15") Vented Gap Cooling™ low-frequency drivers for very high acoustic output.
102 mm (4 inch) voice-coil neodymium compression driver for high-power capacity and
very light-weight
90°x 50° coverage.
Bi-amplified or full-range passive operation.
Twelve M10 suspension points may be used with optional M10 eyebolts.
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
14-Gauge steel grille lined with acoustically transparent cloth.
Dual (15") Vented Gap Cooling™ low-frequency drivers for very high acoustic output.
102 mm (4 inch) voice-coil neodymium compression driver for high-power capacity and
very light-weight
90°x 50° coverage.
Bi-amplified or full-range passive operation.
Twelve M10 suspension points may be used with optional M10 eyebolts.
Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
14-Gauge steel grille lined with acoustically transparent cloth.
Spepecification
| Model | PSTX825 |
| Frequency Range ( –10 dB) | 34 Hz-20 kHz |
| Frequency Response (± 3 dB) | 42 Hz-19 kHz |
| Coverage Pattern | 90 × 50 degree nominal |
| Sensitivity (1W/1m) | 98 dB |
| Power Rating / Peak | 1600 W / 3200 W |
| Rated Maximum SPL | 136 dB SPL Peak |
| Nominal Impedance | 4Ω |
| Input Connectors | Two NL4 |
| Operational Modes | Full Range/Bi-Amp |
| Dimension(H x W x D) | 1066 mm x 568 mm x 573 mm |
| Net Weight | 51 kg (112 lbs) |
Certification
Exhibitions
Guangzhou Power and Grace Electronic Equipment Co., Ltd ( SPIRIT ) attend to these exhibitions :
1. Guangzhou Entertainment Technology Show ( GET SHOW) ;
2. PRO LIGHT+SOUND ( Frankfurt);
3. China International Exhibition on Pro Audio, Light, Music & Technology (PALM EXPO)
We warmly welcome our regular buyers and new friends meet us in the show ,to establish long-lasting cooperation.
