- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XSA-250GFQ
-
Rated Voltage:
-
400V/230V
-
Rated Current:
-
451A
-
Speed:
-
1500RPM/1800RPM
-
Frequency:
-
50HZ/60HZ
-
Cooling method:
-
Water cooling
-
fuel type:
-
Bio gas
-
gas consumption:
-
0.6m³/kw.h
-
Start method:
-
24V Electric start
-
Control panel:
-
Deepsea/Smartgen
-
Ignition system:
-
XSA
-
Alternator:
-
100% copper wire brushless
-
Certification:
-
CE ISO9001 ISO14001 ISO18001, CE/ISO
-
intake pressure:
-
3-10kpa
-
type:
-
open frame, silent type, trailer type, container type,
Quick Details
-
Warranty:
-
one year or 1500 running hours
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XSA
-
Model Number:
-
XSA-250GFQ
-
Rated Voltage:
-
400V/230V
-
Rated Current:
-
451A
-
Speed:
-
1500RPM/1800RPM
-
Frequency:
-
50HZ/60HZ
-
Cooling method:
-
Water cooling
-
fuel type:
-
Bio gas
-
gas consumption:
-
0.6m³/kw.h
-
Start method:
-
24V Electric start
-
Control panel:
-
Deepsea/Smartgen
-
Ignition system:
-
XSA
-
Alternator:
-
100% copper wire brushless
-
Certification:
-
CE ISO9001 ISO14001 ISO18001, CE/ISO
-
intake pressure:
-
3-10kpa
-
type:
-
open frame, silent type, trailer type, container type,
|

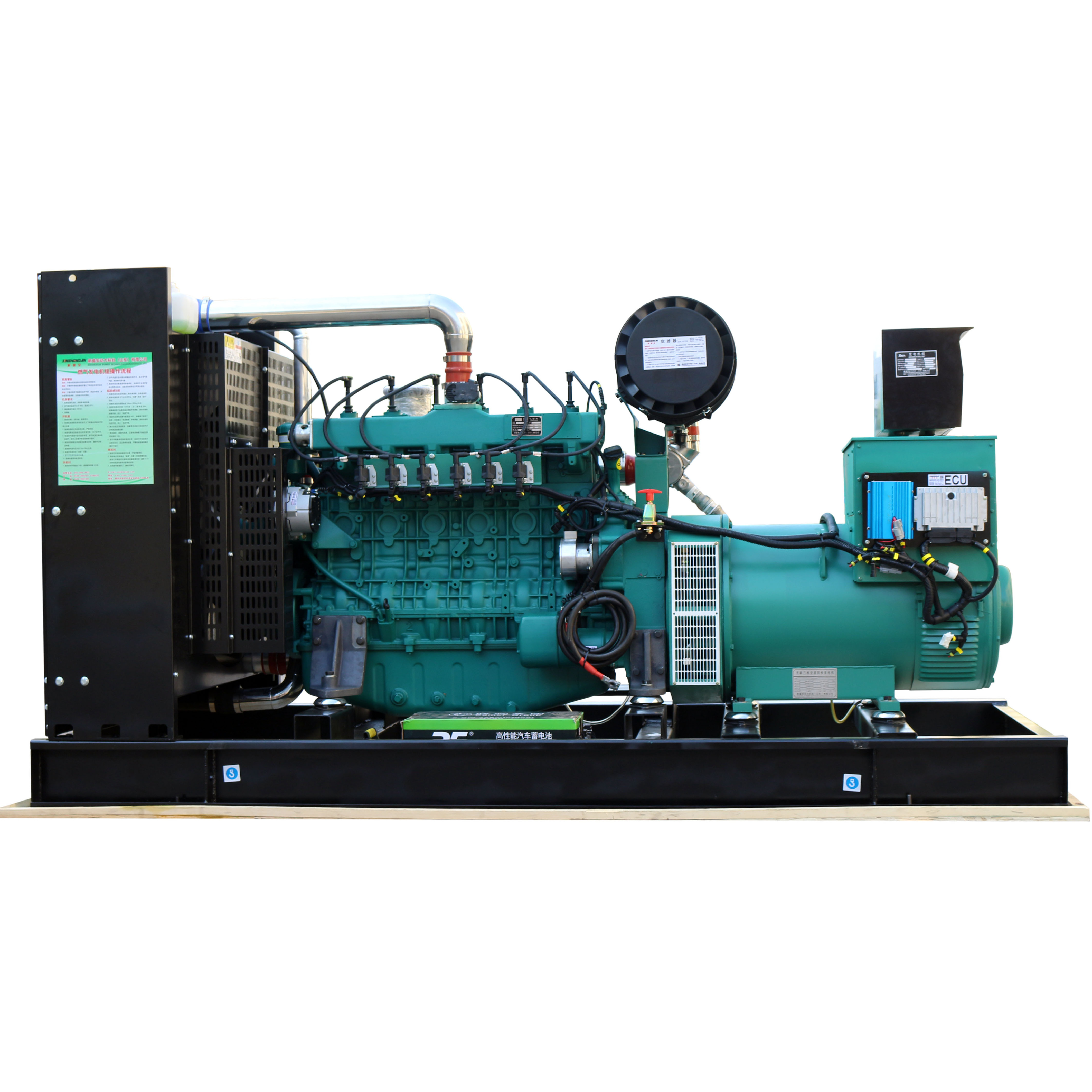

Gas generator
|
Model
|
XSA-250GFQ
|
||
|
|
Rated Power(kw/kva)
|
250/312.5
|
||
|
|
Standby Power
|
275/343.75
|
||
|
|
Type
|
open type,silent type,trailer type
|
||
|
|
Current(A)
|
451A
|
||
|
|
Voltage(V)
|
220V,240V,400V,415V,480V
|
||
|
|
Frequency(HZ)
|
50HZ/60HZ
|
||
|
|
|
|
||
|
Engine
|
Engine Brand
|
XSA
|
||
|
|
Model
|
XSA13D317E300NG
|
||
|
|
Rated Power(KW)
|
317
|
||
|
|
Cylinders
|
6
|
||
|
|
Bore(mm)
|
127
|
||
|
|
Stroke(mm)
|
165
|
||
|
|
Rated Speed(rpm)
|
1500/1800
|
||
|
|
Start Method
|
Electrical
|
||
|
|
Speed Governing
|
Electronic
|
||
|
|
Cooling Method
|
water cooling
|
||
|
|
Gas Consumption
|
0.6m³/kw.h
|
||
|
|
|
|
||
|
Alternator
|
Brand
|
XSA
|
||
|
|
Rated Power(kw/kva)
|
250/312.5
|
||
|
|
Rated Frequency(HZ)
|
50HZ/60HZ
|
||
|
|
Rated Voltage(V)
|
220V,240V,400V,415V,480V
|
||
|
|
Power Factor
|
0.8
|
||
|
|
Connection Type
|
3P4W
|
||
|
|
Excitation Method
|
Brushless
|
||
|
|
Voltage Regulation
|
AVR
|
||
|
|
Protection
|
IP23
|
||
|
|
Class
|
H
|
||
PRODUCT ADVANTAGES
PRODUCT DETAILS
STANDARD CONFIGURATION
OPTIONAL CONFIGURATION
FUNCTION CLASSIFICATION
COMPANY INFORMATION
Shandong XuJiuJiu Power Technology Co.,Ltd is the branch company of XinShengAn Power Technology(shandong)Co.,Ltd and mainly responsible for foreign sales.Here produce gas generator sets,diesel generator sets,marine generator sets(Approved by CCS and ZY certification),silent generator sets,container generator sets,mobile trailer generator sets,water pump sets.The power range is from 10KW to 2000KW, Annual output meet 20,000sets.Meantime we get the Agency certification from CNPC JICHAI POWER COMPANY LIMITED
and WEICHAI.
and WEICHAI.
The factory is located in “China Power City” --Weifang City Shandong Province China,covers area 40,000m² and workshop 18,500m²,Build good cooperation relationship with MTU,CUMMINS,DEUTZ,JICHAI,WEICHAI,YUCHAI,MARATHON and STAMFORD etc.
We has always been committed to create core competitiveness on technology, quality and cost , produce environmental protection,green ,energy saving generator sets and won good appraise.
