Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XIAOKANG
-
Dimension(L*W*H):
-
1370*1150*1620mm
-
Name::
-
Tray sealer
-
Usage:
-
Food Vacuum Package
-
Keyword:
-
Vacum Sealing Machine
-
Advantage:
-
High Efficiency
-
Capacity:
-
3 Times/min
-
Product Keywords:
-
Double Vacuum Sealing
-
Vacuum pump:
-
BUSCH
-
Model:
-
DZ-ZQ
-
Function:
-
Vaccum Packer
-
Material:
-
304 Stainless Steel
-
Certification:
-
CE
Quick Details
-
Packaging Type:
-
Stand-up Pouch, Pouch
-
Packaging Material:
-
Plastic, Wood
-
Voltage:
-
380V/50HZ
-
Place of Origin:
-
China
-
Brand Name:
-
XIAOKANG
-
Dimension(L*W*H):
-
1370*1150*1620mm
-
Name::
-
Tray sealer
-
Usage:
-
Food Vacuum Package
-
Keyword:
-
Vacum Sealing Machine
-
Advantage:
-
High Efficiency
-
Capacity:
-
3 Times/min
-
Product Keywords:
-
Double Vacuum Sealing
-
Vacuum pump:
-
BUSCH
-
Model:
-
DZ-ZQ
-
Function:
-
Vaccum Packer
-
Material:
-
304 Stainless Steel
-
Certification:
-
CE
Specification
|
|
DH-Q
|
DH-ZQ
|
|
Width of the upper film:
|
<=400mm
|
<400mm
|
|
Power:
|
380V/50HZ
|
380V/50HZ
|
|
Capacity:
|
6KW
|
6-7KW
|
|
Gas source:
|
>=0.6Mpa
|
>=0.6Mpa
|
|
Work efficiency:
|
4Cycles/Min
|
3Cycles/Min
|
|
Dimensions
|
1370*1120*1560mm
|
1370*1150*1620mm
|
|
Weight
|
350kg
|
750KG
|

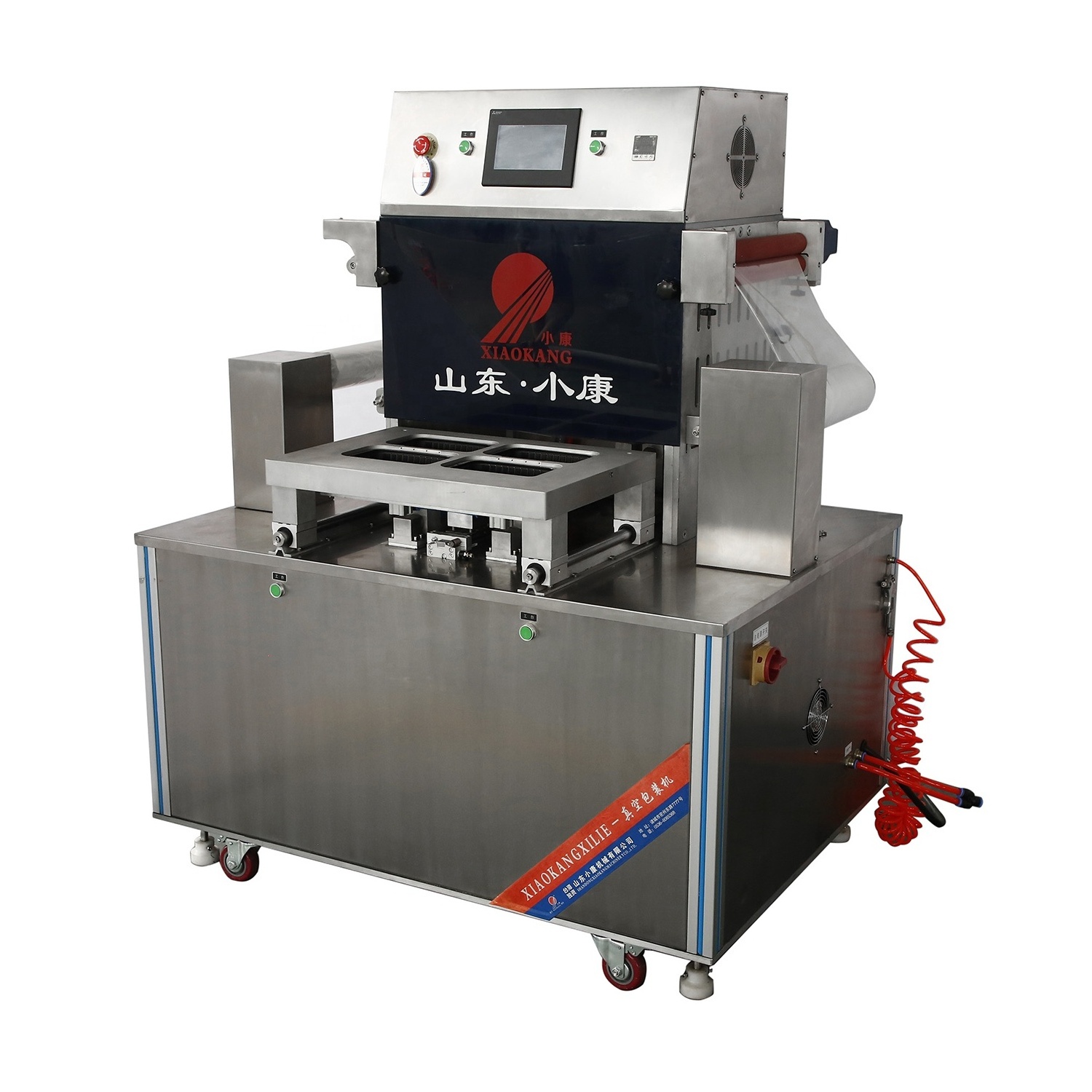

The basic principle of the MAP tray sealer machine is packing the food in the plastic tray, vacuum firstly, then fill the protection gas into the trays and sealing film, 99.5% gas replacement rate, keep food fresh longer time and natural color. The packed food healthy, safe, and pleasing to the eye and prevent the pollution of food.
configuration
1. With Germany BUSCH vacuum pump.
2. 304 Stainless Steel, Aluminum-magnesium alloy.
3. Japan Mitsubishi PLC, touch screen, computer control.
4. Imported electrical components.
5. Pneumatic Components SMC.
6. U-type color sensor, can be used for printed film and unprinted film.
7. Japan temperature Controller.
1. With Germany BUSCH vacuum pump.
2. 304 Stainless Steel, Aluminum-magnesium alloy.
3. Japan Mitsubishi PLC, touch screen, computer control.
4. Imported electrical components.
5. Pneumatic Components SMC.
6. U-type color sensor, can be used for printed film and unprinted film.
7. Japan temperature Controller.
Finished product
The material
Magnesium aluminum alloy frame
Waterproof stainless steel frame, can protect the internal structure of the machine, extend the service life.
Japan Mitsubishi PLC
The mould
Customized according to customer needs
New designed gas tension shaft
Film feeder adopt a new designed gas tension shaft,Ensure that the sealing film can cover the box flatly
Vacuum Pump
Vacuum pump imported from BUSCH,
BUSCH RA0100F Vacuum Bump .
Brake Caster
Machine can move easily with it. press the brake, the machine will be fixed well.
