Quick Details
Quick Details
-
Displacement (ml):
-
200CC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SWICOO

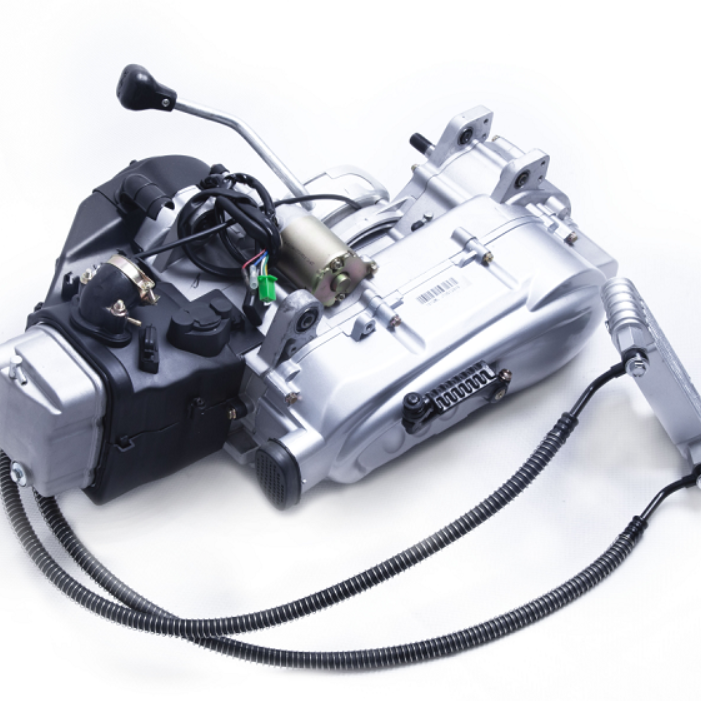

A. 2 type: single cylinder, forced air cooling, oil cooling, four stroke, overhead camshaft
A. 3 main performance parameters
Maximum power and corresponding speed: 7.6 kW / 7000 R / min
Maximum net power and corresponding speed: 7.1 kW / 7000 R / min
Rated power and rated speed: 6.5 kW / 6500 R / min
Maximum torque and corresponding speed: 10.2 n · M / 5000 R / min
Minimum fuel consumption rate: 354 g / kW · H
Minimum no-load stable speed: 1500 R / min ± 150 R / min
A. 4 main structure
Cylinder diameter: 61mm
Piston stroke: 57.8mm
Working volume of cylinder: 168.9 ml
Compression ratio: 9.2:1
Ignition advance angle: 13 ° ± 2 ° (1700 R / min); 29 ° ± 1 ° (4000 R / min)
Intake mode: OHC cam chain drive
Ignition mode: C.D.I electronic ignition
Lubrication method: pressure, pressure splash
Gas distribution phase: suction (when 1 mm is up and down) on 0 ° TDC off 25 ° abdc
Exhaust gas (1 mm lifting) on 33 ° BBDC off 0 ° TDC
Valve clearance: 0.03mm ~ 0.05mm (cold state)
A5 drive
Clutch type: Shoe automatic centrifugal type
Transmission type: stepless automatic transmission
Transmission ratio: 2.6-0.88
Reduction ratio: forward: first 2.800; second 2.786
Reverse: first 2.800; second 1.448; third 2.786
Power output mode: Motorcycle variable speed V-belt
A6 starting mode
Electric starting and foot starting
A7 accessories
Model and form of carburetor: PD24J, vacuum diaphragm type
Model and form of spark plug: c7has (NGK), A7T or a7rt (made in China)
Type and type of air filter: soft polyurethane foam plastic filter + paper filter element.
Cooling mode: forced air cooling
Model and type of lubricating oil filter: full flow filter screen
Oil pump type: rotor type
A8 fuel and lubricating oil
Gasoline brand: above rq90 (GB17930)
Lubricating oil brand: SF grade SAE 15W / 40 (crankcase) gearbox: SAE 80W / 90
Total capacity of lubricating oil: crankcase: 0.9l gearbox: 0.22l
Maximum temperature of lubricating oil: 120 ℃
A9 overall dimension
Length × width × height: 623 × 390 × 312 (mm)
A10 net mass: 31kg
