Quick Details
-
Brand Name:
-
Top Brand
-
Model Number:
-
SD42
-
Dimension(Long * Breadth * High):
-
9630*4314*3955mm
-
Track width:
-
610 mm
-
Cylinder bore x stroke:
-
150x150 mm
-
Soil pressure:
-
1.25 kg/cm²
-
After Warranty Service:
-
Video Technique
Quick Details
-
Machine Weight:
-
54000 KG
-
Dozing Capacity:
-
18.3M3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Top Brand
-
Model Number:
-
SD42
-
Dimension(Long * Breadth * High):
-
9630*4314*3955mm
-
Track width:
-
610 mm
-
Cylinder bore x stroke:
-
150x150 mm
-
Soil pressure:
-
1.25 kg/cm²
-
After Warranty Service:
-
Video Technique
Contact Way
Sales Manager
Alice Yin
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat:
+86-18779237545
Web:
www.newindu.com
Products Description

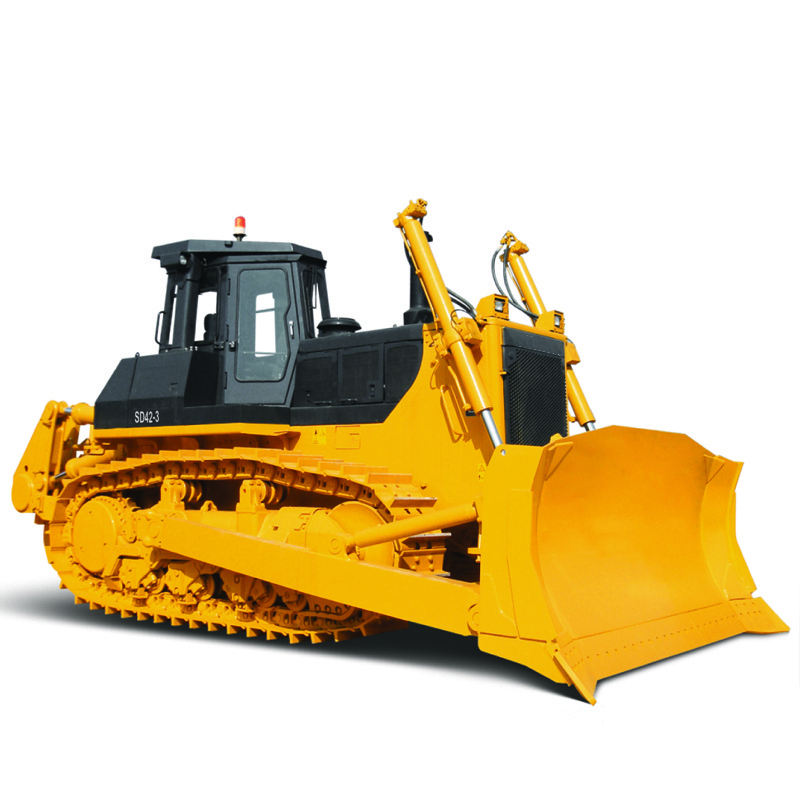

China Brand New 420hp Dozer SD42 Bulldozer Construction Machinery for sale
The working device controlled by PPC pilot proportional valve, K-suspension floating walking system, with global intelligent service system, rollover protection and falling object protection device, has advanced structure, working conditions;Strong adaptability and high work efficiency. It is especially suitable for working conditions such as earthwork mining and rock stripping in mining, construction and other projects.
● Imported turbocharged diesel engine, the number of parts is more than 25% less than similar products, the maintenance time is more than 50% less than similar products, strong power, high efficiency and energy saving.
● High-reliability power shift gearbox and final drive with planetary structure can transmit efficiently Power,high durability and high production efficiency.
● It adopts a new structure oil cylinder, and the seals and hydraulic hoses in key parts are imported products. Longer service life and reliability. The external working valve is more convenient for maintenance.
●Imported instruments, display data more accurate and intuitive, can monitor the operation of main components and oil
temperature,Parameters such as oil level and water temperature realize electronic monitoring and over-limit alarm, with higher reliability.
●K-suspension floating driving system and pivotal chassis structure can effectively reduce impact loads on The drive line impact improves the traction performance and life of the vehicle.
● The main frame of the box-type structure uses high-performance materials and high-strength castings, and has a high The ability to bear impact loads and resist bending and torsion supports high-strength equipment under harsh working conditions Continuous operation and high-quality welds ensure that the main frame has a full life cycle.
● Ergonomic, the driver's seat and armrest can be easily adjusted up and down. The shifting, steering and accelerator controls are placed on the left, and the working device controls are placed on the right. The PPC pilot control control system makes the control process more convenient and flexible, and reduces fatigue.
● The front working device is a standard semi-U-shaped blade, and the 16m3 super-large-capacity blade is used for earthwork It is an ideal high-efficiency operating device for construction and bulk material shoveling; the rear working device is a single tooth with adjustable angle.
● High-reliability power shift gearbox and final drive with planetary structure can transmit efficiently Power,high durability and high production efficiency.
● It adopts a new structure oil cylinder, and the seals and hydraulic hoses in key parts are imported products. Longer service life and reliability. The external working valve is more convenient for maintenance.
●Imported instruments, display data more accurate and intuitive, can monitor the operation of main components and oil
temperature,Parameters such as oil level and water temperature realize electronic monitoring and over-limit alarm, with higher reliability.
●K-suspension floating driving system and pivotal chassis structure can effectively reduce impact loads on The drive line impact improves the traction performance and life of the vehicle.
● The main frame of the box-type structure uses high-performance materials and high-strength castings, and has a high The ability to bear impact loads and resist bending and torsion supports high-strength equipment under harsh working conditions Continuous operation and high-quality welds ensure that the main frame has a full life cycle.
● Ergonomic, the driver's seat and armrest can be easily adjusted up and down. The shifting, steering and accelerator controls are placed on the left, and the working device controls are placed on the right. The PPC pilot control control system makes the control process more convenient and flexible, and reduces fatigue.
● The front working device is a standard semi-U-shaped blade, and the 16m3 super-large-capacity blade is used for earthwork It is an ideal high-efficiency operating device for construction and bulk material shoveling; the rear working device is a single tooth with adjustable angle.
Product Paramenters
|
TEM
|
UNIT
|
SD42-3
|
|
L×W×H (Ripper not included)
|
mm
|
9630×4315×3955 (Ripper included)
|
|
Operating weight (Ripper not included)
|
t
|
53 (Ripper included)
|
|
Rated power
|
kW/rpm
|
310/2000
|
|
Track gauge
|
mm
|
2260
|
|
Ground length and ground pressure
|
mm/MPa
|
3560-0.123
|
|
Pitch
|
mm
|
260.35
|
