Quick Details
-
Warranty(Year):
-
2-Year
-
Color Rendering Index(Ra):
-
92
-
Product Weight（kg）:
-
10.5
-
Input Voltage(V):
-
AC90-240V
-
Lamp Luminous Flux(lm):
-
168
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Emitting Color:
-
RGB/RGBW/Singel color
-
Static Hybrid Linear bar:
-
graphical strobe and background colors
-
light source:
-
768x0.5W RGB and 168x 3W CW leds
-
Power Consumption:
-
Max 1000W
-
Electronic linear dimmer:
-
0-100% smooth dimming
-
Control signal:
-
DMX512,RDM,Artnet
-
RGB pixels:
-
96 segments
-
CW pixels:
-
12 segments
-
Power connectors:
-
PowerCon True1 IN/OUT(seetronic)
Quick Details
-
Color Temperature(CCT):
-
2800-8500K
-
Type:
-
LED Matrix Light
-
Application:
-
stage show
-
Warranty(Year):
-
2-Year
-
Color Rendering Index(Ra):
-
92
-
Product Weight（kg）:
-
10.5
-
Input Voltage(V):
-
AC90-240V
-
Lamp Luminous Flux(lm):
-
168
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Emitting Color:
-
RGB/RGBW/Singel color
-
Static Hybrid Linear bar:
-
graphical strobe and background colors
-
light source:
-
768x0.5W RGB and 168x 3W CW leds
-
Power Consumption:
-
Max 1000W
-
Electronic linear dimmer:
-
0-100% smooth dimming
-
Control signal:
-
DMX512,RDM,Artnet
-
RGB pixels:
-
96 segments
-
CW pixels:
-
12 segments
-
Power connectors:
-
PowerCon True1 IN/OUT(seetronic)
Products Description
|
Technical Parameters
|
|
|
|
|
|||
|
Product name
|

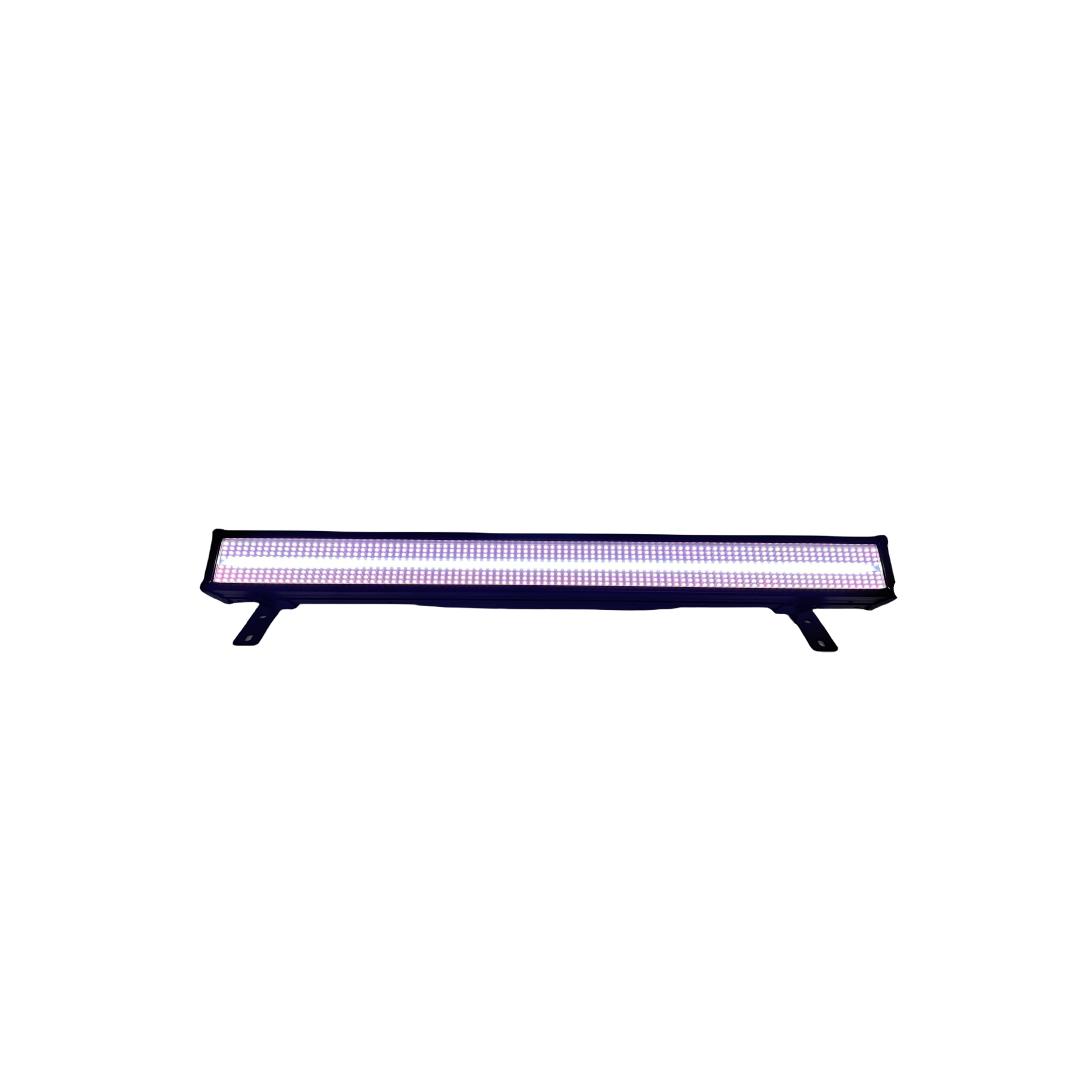

THUNDER 1000IP LINE
|
|
|
|
|||
|
Light source
|
LEDs:768pcs 0.5W RGB SMD LEDs and 168pcs 3W CW leds
|
|
|
|
|||
|
|
LEDs average lifespan:>50,000hrs
|
|
|
|
|||
|
Optics
|
Beam angle:100 deg
|
|
|
|
|||
|
|
Light output(2mtr):8900LUX
|
|
|
|
|||
|
|
Outstanding color mixing without flicker in camera
|
|
|
|
|||
|
Colors
|
RGBW color system
|
|
|
|
|||
|
Effects
|
96 RGB segments individual controlled,12 CW controllable sections
|
|
|
|
|||
|
|
Electronic dimmer:0-100% linear dimming
|
|
|
|
|||
|
|
Electronic strobe:0-30 times/sec
|
|
|
|
|||
|
|
Built-in programmings,color changing macro..
|
|
|
|
|||
|
Control
|
Control mode:DMX512,Master/slave,auto run,manual/artnet
|
|
|
|
|||
|
|
DMX channel:7/23/27/32/36/301/304/305CH
|
|
|
|
|||
|
|
Setting and addressing:LCD display
|
|
|
|
|||
|
Body
|
Housing:die-casting aluminum housing
|
|
|
|
|||
|
|
Housing color:black
|
|
|
|
|||
|
Cooling
|
forced air convection
|
|
|
|
|||
|
Environment
|
IP rating:IP65
|
|
|
|
|||
|
|
Working temp.:-20-45 ℃
|
|
|
|
|||
|
Dimenssion
|
1000*150*230mm
|
|
|
|
|||
|
Weight
|
10.5kg
|
|
|
|
|||
