Quick Details
-
Product name:
-
Weld pipe mold
-
Material:
-
SKD11,D2,TS4,CR12MOV...
-
Hardness:
-
HRC 58---65
-
Size:
-
5----630mm
-
Thickness:
-
0.3---12mm
-
Heat treatment:
-
Nitriding, vacuum cryogenic, etc
-
Certificate:
-
CE
-
Delivery time:
-
1 week
-
MOQ:
-
1
-
Package:
-
Wooden
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SW
-
Weight (KG):
-
100
-
Product name:
-
Weld pipe mold
-
Material:
-
SKD11,D2,TS4,CR12MOV...
-
Hardness:
-
HRC 58---65
-
Size:
-
5----630mm
-
Thickness:
-
0.3---12mm
-
Heat treatment:
-
Nitriding, vacuum cryogenic, etc
-
Certificate:
-
CE
-
Delivery time:
-
1 week
-
MOQ:
-
1
-
Package:
-
Wooden

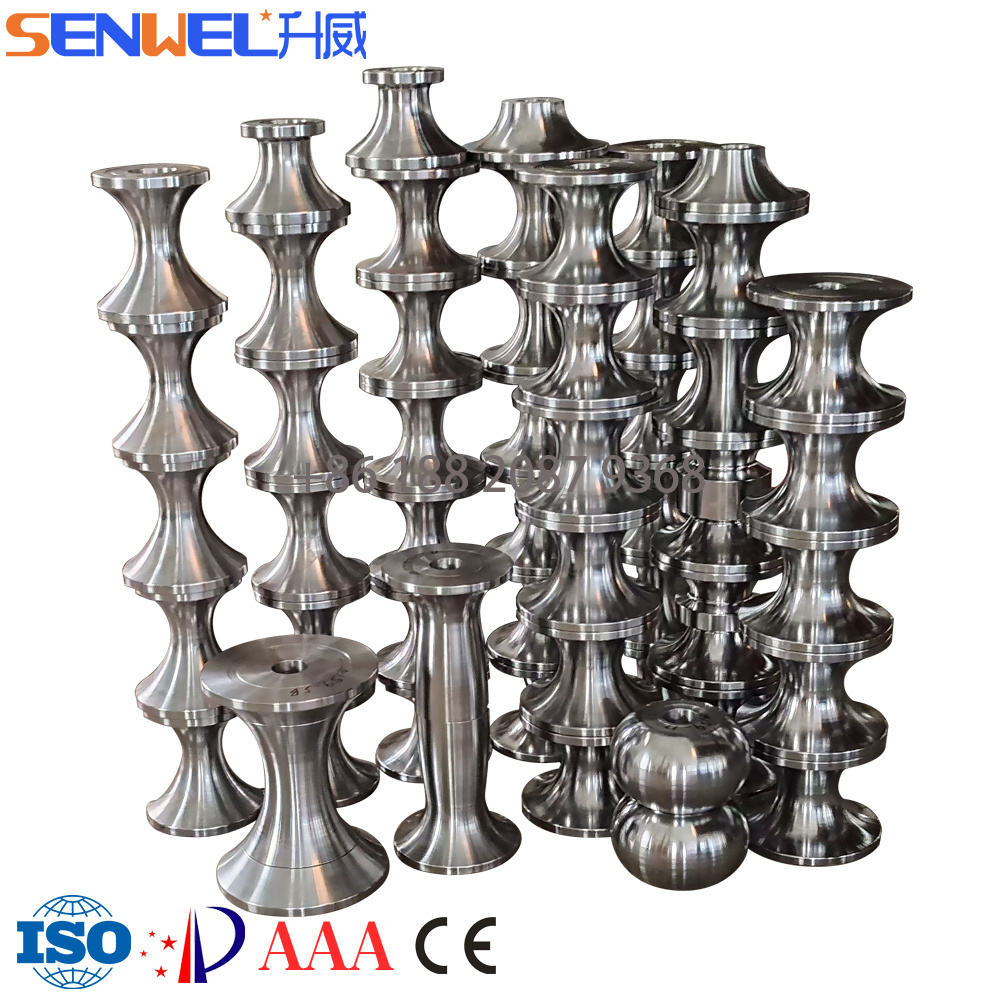

GXG Technology Roll Set / Tooling / Tube Mold / Pipe Mould / Forming Roller Manufacturer
MOULD ROLLER MATERIAL:Cr12MoV / SKD11 / D2 / Cu-Cr Alloy / Cr12 Etc
PIPE SHAPE: Round/Square/Rectangle/Special-shaped Etc
HARDNESS:HRC 58—63
Features: Standard tube shape, No Scratch, Long service life
GXG Technology Roll Set / Tooling / Tube Mold / Pipe Mould / Forming Roller Manufacturer is a necessary hardware accessory for manufacturing metal straight seam welded pipe. Under the action of the external force of the welded pipe mould, the steel coil is gradually forced to be cold rolled and curled in the arc of the tube roller, and then welded to obtain the closed welded pipe. The mold can be designed according to the customer's needs, such as round, elliptical, square, rectangular, special-shaped pipes, etc. the welded pipe mold is widely used in the production of decorative pipes, industrial pipes, ERW welded pipes and other pipes.
GXG Technology Roll Set / Tooling / Tube Mold / Pipe Mould / Forming Roller Manufacturer
| Tube shape | Pipe range(mm) | Wall thickness(mm) | Hardness | Heat treatment | Material | Purpose |
| Round | Ø4—510 | 0.2—12 | HRC 58—65 | Vacuum / Nitriding / Cryogenic Etc | Cr12MoV SKD11 D2 TS4 Cr12 H13 SKD61 Etc | Welded Pipe Bend Pipe Transport Roller |
| Square | 5*5—250*250 | 0.3—8 | ||||
| Rectangle | 4*8—200*300 | 0.3—8 |
