Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
3S
-
Model Number:
-
1T
-
Product name:
-
Flat Eye Eye Webbing Sling Belt
-
Material:
-
Polyester
-
Webbing Width:
-
30MM
-
Break Strength:
-
7,000 KGS
-
W.L.L:
-
1T
-
Length:
-
2M
-
Safety factor:
-
4:1 5:1 6:1 7:1 8:1
-
Standard:
-
EN 1492-1:2008
-
Color:
-
Purple
-
Certification:
-
TUV GS CE, ISO9001
Quick Details
-
Type:
-
Webbing Sling
-
Shape:
-
Flat
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
3S
-
Model Number:
-
1T
-
Product name:
-
Flat Eye Eye Webbing Sling Belt
-
Material:
-
Polyester
-
Webbing Width:
-
30MM
-
Break Strength:
-
7,000 KGS
-
W.L.L:
-
1T
-
Length:
-
2M
-
Safety factor:
-
4:1 5:1 6:1 7:1 8:1
-
Standard:
-
EN 1492-1:2008
-
Color:
-
Purple
-
Certification:
-
TUV GS CE, ISO9001
Since we started to manufacture polyester webbing in 1994, SHANDONG SLING & STRAP CO., LTD (3S) has developed and become an industry leader in China in the professional manufacturing of lifting slings, ratchet tie down straps and tow straps. We specialize in manufacturing webbing for web sling and ratchet straps, webbing sling, round slings, tie down straps, tow straps, bolt straps and cargo nets.
We built 27,000 square meters of modern standard workshop on the land purchased by ourselves. The workshop includes 7000 square meters of weaving area, 2000 square meters of dyeing area and 8000 square meters of sewing area. We planned for nearly 80 shuttleless loom machines, more than 10 heavy continuous dyeing machines and more than 200 sewing machines. Monthly output is more than 1000 tons of webbing and corresponding finished products.
All our products comply with strict CE and GS quality standards of TUV, IS09001 quality management system requirements of SGS or customized requirements from our clients. The breaking strength of all webbing, webbing slings and ratchet straps etc. is 3% more than according standard. Elongation rate is less than 7%. Moreover, all our products must pass at least 3 times of tension test and sampling quality check before shipment.
DESCRIPITION:

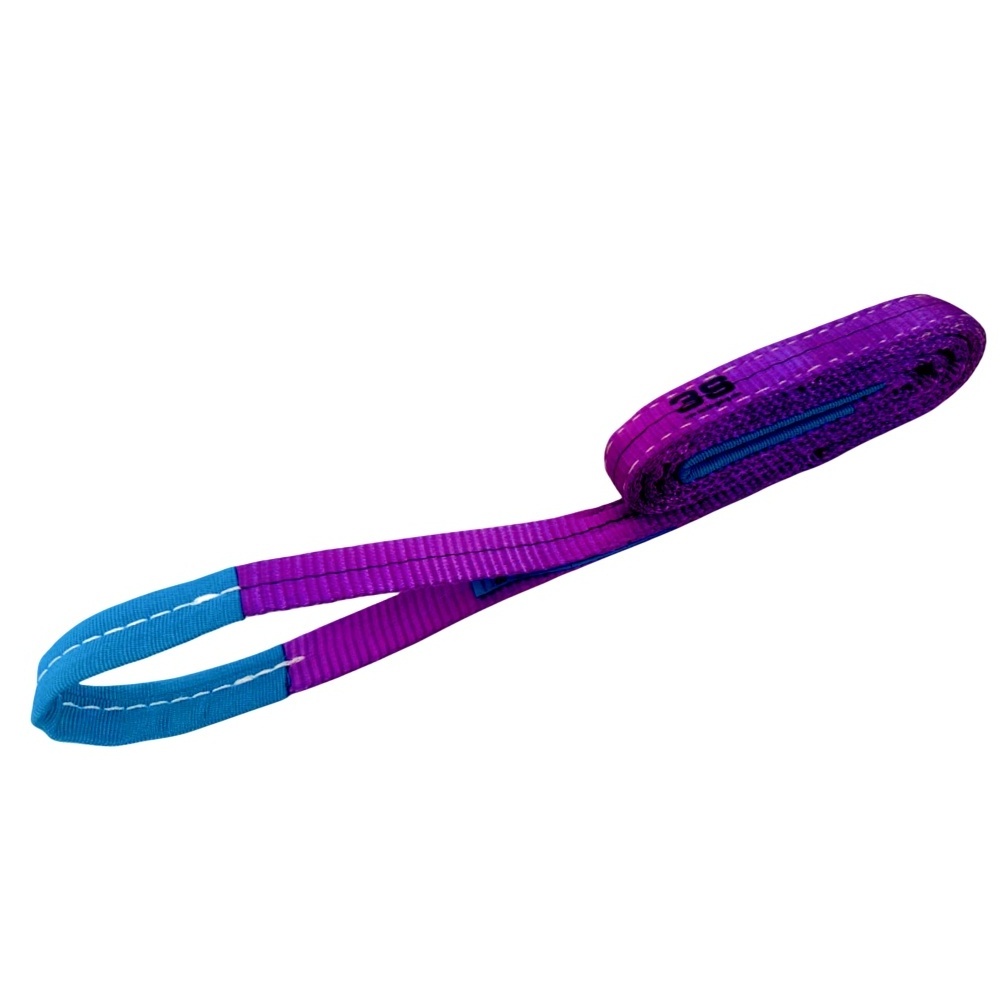

1T flat eye to eye webbing sling
WLL: 1T
Breaking Strength: 7,000 KGS
Width: 30mm
Color: Standard
Standard: EN 1492-1
Safety Factor: 4:1 5:1 6:1 7:1 8:1
Certificate: TUV CE GS, SGS ISO9001
Length: Customized
Ply: 1, 2, 3, 4
Sample: Free are available
| Code Number | W.L.L | Color | Width | Breaking strength | Vertical lifting | Chocked lifting |
Basket
lifting |
| 3S-FEE-1T | 1T | Purple | 30mm | 7,000 kg | 1,000 kg | 800 kg | 2,000 kg |
| 3S-FEE-2T | 2T | Green | 60mm | 14,000 kg | 2,000 kg | 1,600 kg | 4,000 kg |
| 3S-FEE-3T | 3T | Yellow | 90mm | 21,000 kg | 3,000 kg | 2,400 kg | 6,000 kg |
| 3S-FEE-4T | 4T | Grey | 120mm | 28,000 kg | 4,000 kg | 3,200 kg | 8,000 kg |
| 3S-FEE-5T | 5T | Red | 150mm | 35,000 kg | 5,000 kg | 4,000 kg | 10,000 kg |
| 3S-FEE-6T | 6T | Brown | 180mm | 42,000 kg | 6,000 kg | 4,800 kg | 12,000 kg |
| 3S-FEE-8T | 8T | Blue | 240mm | 56,000 kg | 8,000 kg | 6,400 kg | 16,000 kg |
| 3S-FEE-10T | 10T | Orange | 300mm | 70,000 kg | 10,000 kg | 8,000 kg | 20,000 kg |
| 3S-FEE-12T | 12T | Orange | 300mm | 84,000 kg | 12,000 kg | 9,600 kg | 24,000 kg |
