Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-48H8CQB-AC
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
48-ports 40G data center switch 4T capacity
-
25G ports:
-
48*25Gbps
-
100G ports:
-
8*40/100Gbps
-
Switching chip:
-
Marvell Falcon 98CX8514
-
CPU:
-
Intel Broadwell-DE D1517
-
Management port:
-
1xRJ45 out of band; 1xConsole; 1xUSB
-
Power Supply:
-
2x100 240 VAC, 650W (Redundant, hot swappable)
-
Fan unit:
-
5 (4+1 redundant)
-
Features:
-
VXLAN, EVPN, M-Lag, VLAN, MAC, routes, STP/RS
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
25G
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
4Tbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-48H8CQB-AC
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
48-ports 40G data center switch 4T capacity
-
25G ports:
-
48*25Gbps
-
100G ports:
-
8*40/100Gbps
-
Switching chip:
-
Marvell Falcon 98CX8514
-
CPU:
-
Intel Broadwell-DE D1517
-
Management port:
-
1xRJ45 out of band; 1xConsole; 1xUSB
-
Power Supply:
-
2x100 240 VAC, 650W (Redundant, hot swappable)
-
Fan unit:
-
5 (4+1 redundant)
-
Features:
-
VXLAN, EVPN, M-Lag, VLAN, MAC, routes, STP/RS
-
Warranty:
-
3 years
Product Description
48-ports 40G data center switch 4T capacity for network command center OEM support
SST-48HX8CQB-AC
high port density switch with 48x25G SFP+8x40/100G SFP ports in a single 1RU for data centers and high-end campus networks. It is ideally suited for deployment at the server access layer in large enterprise data centers.
Delivers high-performance, high interface density and low latency to allow enterprises and carriers to build cloud-oriented data center networks. Ideal spine and top of rack(ToR) solution, allowing maximum flexibility, with port speeds spanning from 25Gbps to 100Gbps per port and port density that enables full rack connectivity to any server at any speed.
Use of Marvell Falcon ASIC and Intel Broadwell CPU with DDR4 memory and flash expansion enables custom software configurations.Supports the open source Open Network Install Environment(ONIE) for zero touch installation of SONiC networking operating system.
Delivers high-performance, high interface density and low latency to allow enterprises and carriers to build cloud-oriented data center networks. Ideal spine and top of rack(ToR) solution, allowing maximum flexibility, with port speeds spanning from 25Gbps to 100Gbps per port and port density that enables full rack connectivity to any server at any speed.
Use of Marvell Falcon ASIC and Intel Broadwell CPU with DDR4 memory and flash expansion enables custom software configurations.Supports the open source Open Network Install Environment(ONIE) for zero touch installation of SONiC networking operating system.

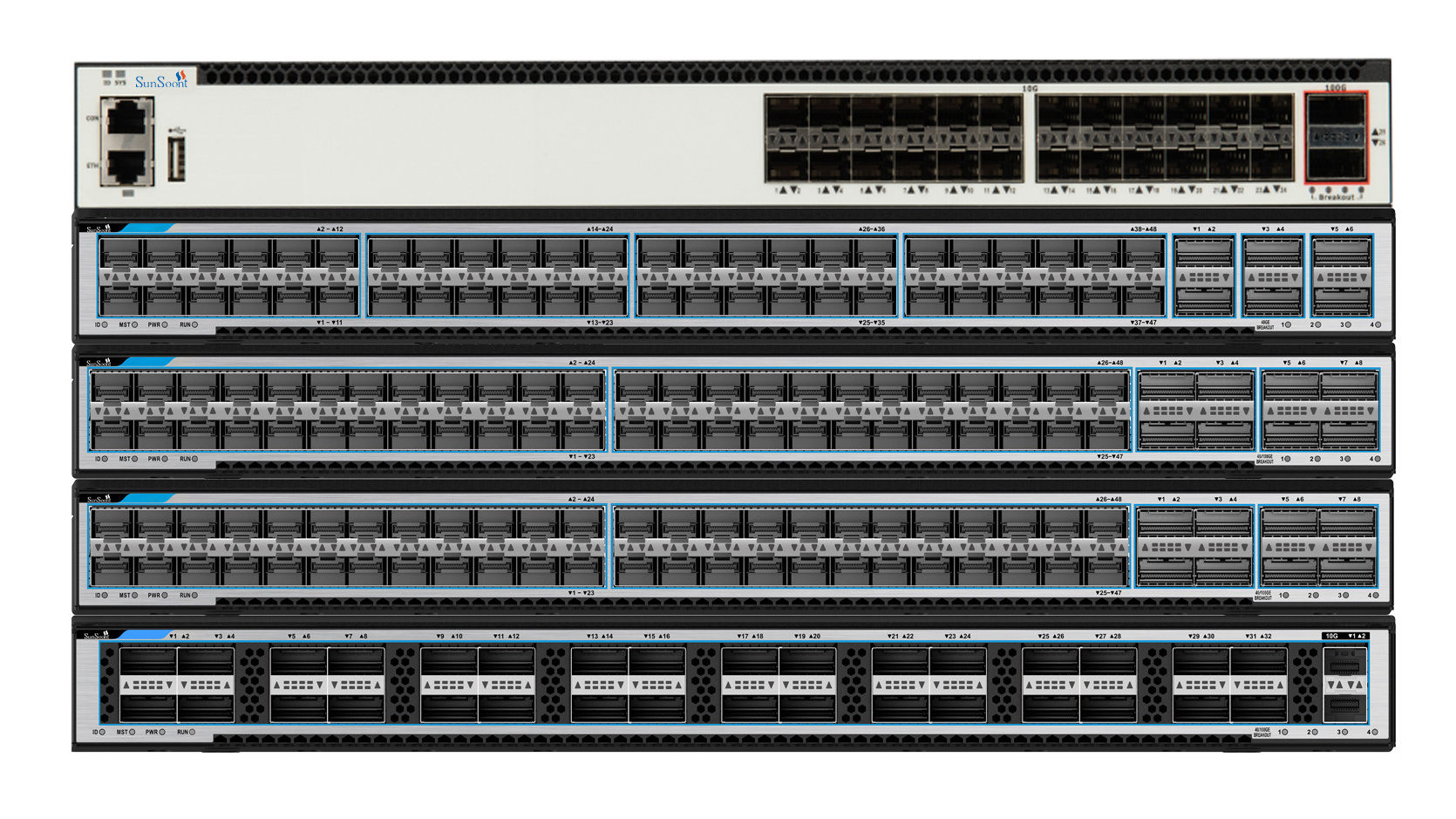

Details Images

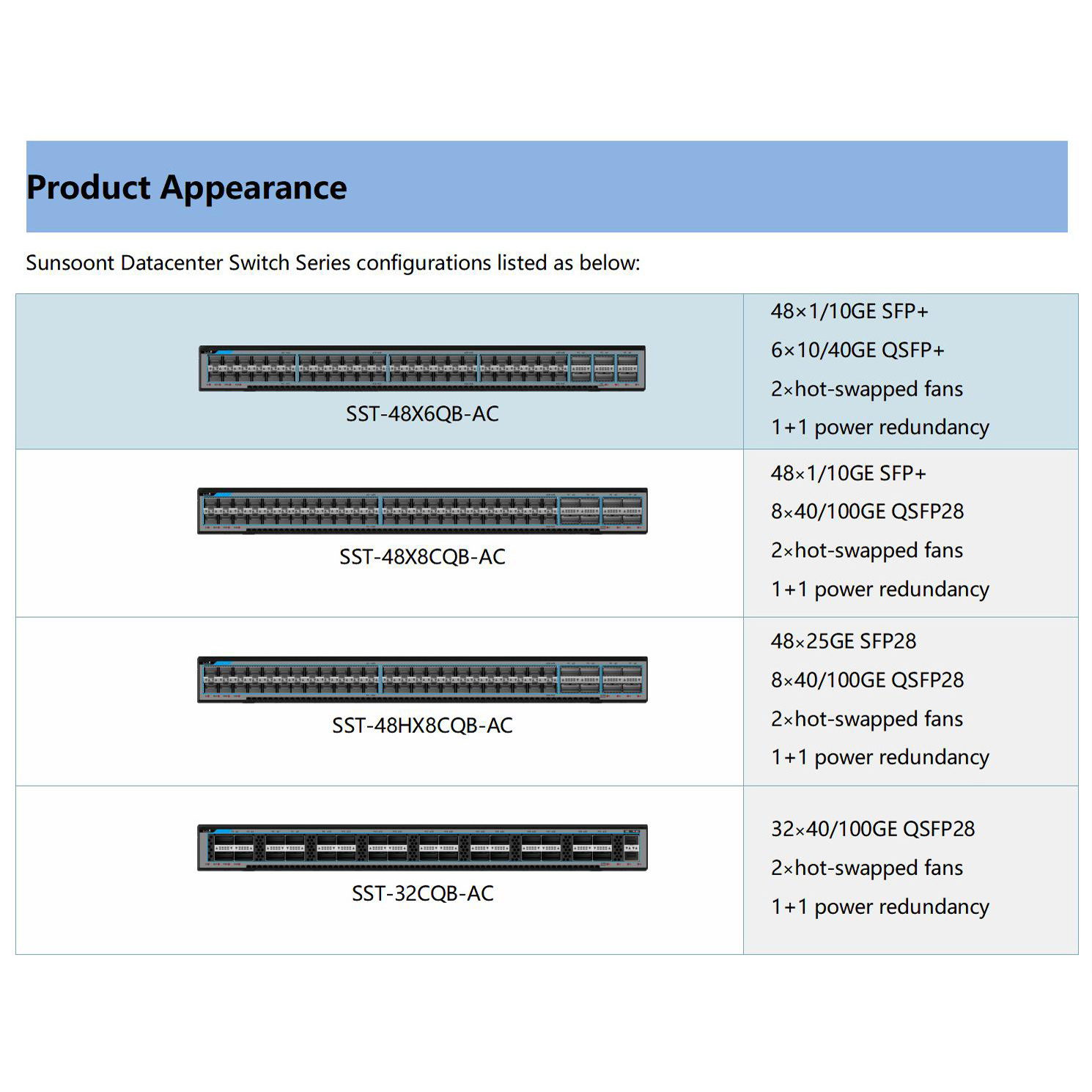

Specification
|
Features
|
SST-48X6QB-AC
|
SST-48X8CQB-AC
|
SST-48HX8CQB-AC
|
SST-32CQB-AC
|
|||
|
Ports
|
48×1/10GE SFP+
6×10/40GE QSFP+ |
48×1/10GE SFP+
8×40/100GE QSFP28 |
48×10/25GE SFP28
8×40/100GE QSFP28 |
32×40/100GE QSFP28
|
|||
|
Throughput
|
1000Mpps
|
1000Mpps
|
2000Mpps
|
2000Mpps
|
|||
|
Switching capacity
|
1.44Tbps
|
2.56Tbps
|
4Tbps
|
6.4Tbps
|
|||
|
VLAN
|
4K VLANs; 1:1 & 2:2 VLAN Mapping; QinQ, selective QinQ; MAC based VLAN; Protocols based VLAN
Guest VLAN; Voice VLAN |
|
|
|
|||
|
Port trunk
|
LACP; 32 trunk groups at most, up to 8 ports in each group
|
|
|
|
|||
|
MAC
|
128K MAC; Static MAC; Dynamic MAC;
|
|
|
|
|||
|
IP routing
|
Static routing; OSPF;ISIS;BGP,GRE
|
|
|
|
|||
|
Multicast
|
IGMP snooping, IGMP filter, IGMP Proxy and IGMP fast leave;
Multicast replication between VLANs; PIM-SM;PIM-DM; Source Specific Multicast (SSM) |
|
|
|
|||
|
Reliability
|
STP, RSTP, MSTP;R-Link protection, VRRP, Trunk, Redundancy power
BPDU Guard, Loop protection, Root protection; |
|
|
|
|||
|
QoS/ACL
|
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on source MAC address, destination MAC address, source
IP address, destination IP address, TCP/UDP port number, protocol type and VLAN ID |
|
|
|
|||
|
|
Time range ACL
|
|
|
|
|||
|
|
Rate limiting with granularity at 64Kbps
|
|
|
|
|||
|
|
Port-based traffic policing and two-rate three-color CAR
|
|
|
|
|||
|
|
8 queues on each port
|
|
|
|
|||
|
|
Flexible scheduling algorithms, including SP/PQ、DRR、SP/PQ+DRR
|
|
|
|
|||
|
|
Re-marking of the 802.1p priority and DSCP priority
|
|
|
|
|||
|
Security
|
User privilege management and password protection
|
|
|
|
|||
|
|
DoS attack defense, ARP attack defense, IP source guard
|
|
|
|
|||
|
|
Binding of the IP address, MAC address, interface
|
|
|
|
|||
|
|
Port isolation, Port security
|
|
|
|
|||
|
|
Black hole MAC address entries
|
|
|
|
|||
|
|
Limit on number of learned MAC addresses
|
|
|
|
|||
|
|
802.1x authentication, RADIUS authentication
|
|
|
|
|||
|
|
SSH v2.0
|
|
|
|
|||
|
|
CPU protection
|
|
|
|
|||
|
Data Center feature
|
EVPN,VXLAN,M-Lag
|
|
|
|
|||
|
Energy saving
|
Dynamic fan speed adjusting
|
|
|
|
|||
|
Management & maintenance
|
Port mirroring and Flow-based mirroring
|
|
|
|
|||
|
|
Configuration via CLI, Telnet, Console port
|
|
|
|
|||
|
|
SNMP v1/v2/v3, RMON, LLDP, Cluster network, Syslog, Traplog
|
|
|
|
|||
|
|
Third-Party GUI management platform based on SNMP
|
|
|
|
|||
|
|
Loading and upgrade via FTP、TFTP
|
|
|
|
|||
|
|
Port loopback detection
|
|
|
|
|||
|
Operating environment
|
Operation temperature: 0℃ to 55℃
Relative humidity:10%-90% (non-condensing) |
|
|
|
|||
|
Input voltage
|
AC: Rated voltage range:100V to 240V AC, 50/60Hz
Maximum voltage range:90V to 264V AC, 50/60Hz |
|
|
|
|||
|
|
DC: Rated voltage range: -48V to -60V DC
Max voltage range: -36V to -72V DC |
|
|
|
|||
|
Dimensions
(W×D×H）mm |
440×400×44
|
440×400×44
|
440×400×44
|
440×400×44
|
|||
|
Power consumption
|
≤180W
|
≤200W
|
≤230W
|
≤360W
|
|||
|
Weight(GW)
|
<8 kg
|
|
|
|
|||

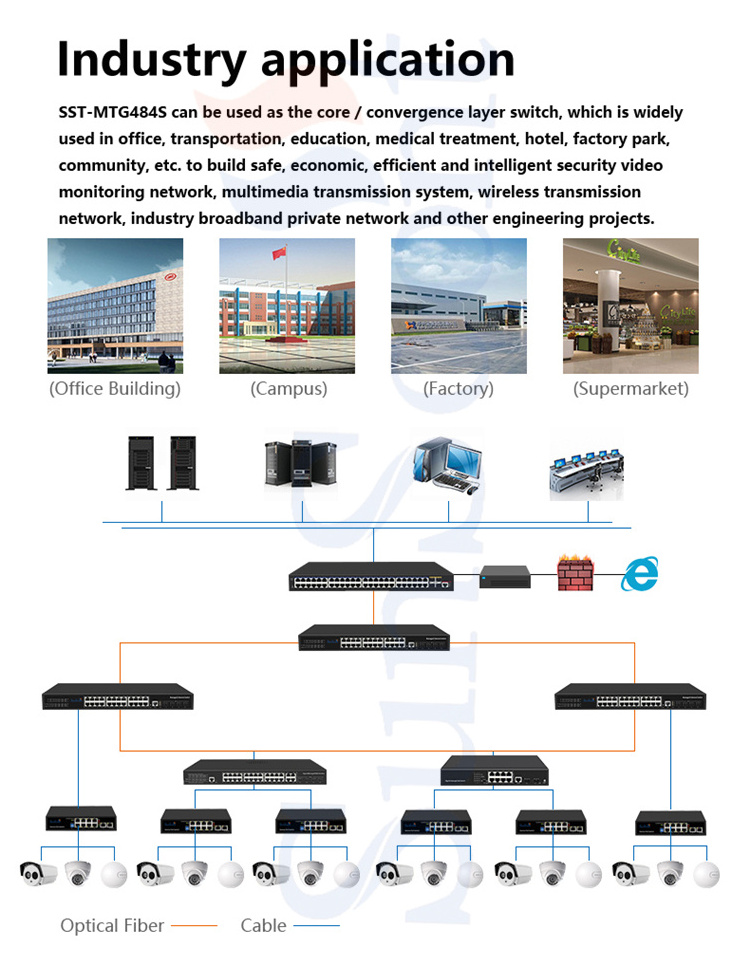

Product Application
