Color:Bronze and origin silver color for choose.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
mobile telescoping towers
-
Material:
-
aluminum alloy 6063
-
Color:
-
bronze
-
Extended Height:
-
12m (40ft)
-
Retracted height:
-
2.6m(8.6ft)
-
Max head-load:
-
20kg
-
Max Wind load:
-
100km/h
-
Lift Type:
-
pneumatic lift model
-
Fixed type:
-
vehicle fixed(with car clamps)
-
OEM.ODM:
-
acceptable
Quick Details
-
Brand Name:
-
Tjtalents
-
Model Number:
-
TAL-P12-2.6-30-AT9
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
mobile telescoping towers
-
Material:
-
aluminum alloy 6063
-
Color:
-
bronze
-
Extended Height:
-
12m (40ft)
-
Retracted height:
-
2.6m(8.6ft)
-
Max head-load:
-
20kg
-
Max Wind load:
-
100km/h
-
Lift Type:
-
pneumatic lift model
-
Fixed type:
-
vehicle fixed(with car clamps)
-
OEM.ODM:
-
acceptable
Specification
40ft mobile trailer Vehicle security CCTV pneumatic telescoping mast towers
|
40ft mobile trailer Vehicle security CCTV pneumatic telescoping mast towers
|
|
|
|
Model No.
|
TAL-P12.0-2.6-20-AT9
|
|
|
Material
|
aluminum alloy
|
|
|
surface treatment
|
Hard anodizing
|
|
|
Color
|
Bronze
|
|
|
Extended height
|
12.0m
|
|
|
Retracted height
|
2.6m
|
|
|
Max head load
|
20kg
|
|
|
Sections
Number
|
7 sections
each section tube OD& thickness
1# 140/5.0mm 2# 118/4.0mm
3# 98/4.0mm 4# 82/3.5mm
5# 66/3.0mm 6# 51/3.0mm
7# 36/3.0mm |
|
|
Mast net weight
|
85kg( without accessories)
|
|
|
Max wind load
|
100km/h ( with guy wire fixed)
|
|
|
top flange
|
150mm/10mm (diameter/thickness)
|
|
|
bottom base
|
235mm/22mm(diameter/thickness)
|
|
|

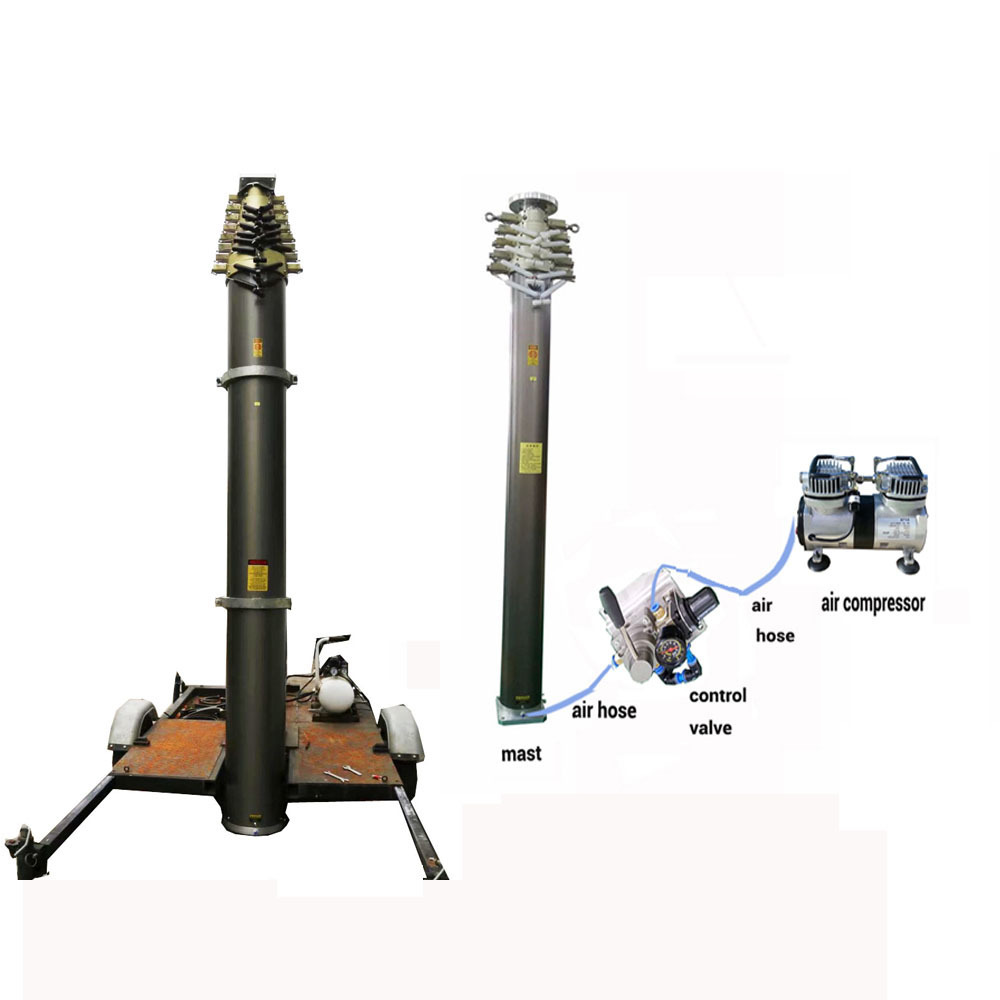

accessories
|
air hose/air compressorcar clamps/guy wire/ steel stakes
|
|
Product Description
What is a Pneumatic Mast?
Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion
of air- more appropriate for short time using.
Classification of masts
Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.
Common application
Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.
Mast specification
Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
Detail
40ft trailer Vehicle security CCTV pneumatic mast
40ft mobile trailer Vehicle security CCTV pneumatic telescoping mast towers
Mast material is aluminum alloy 6063-T5
Tube surface treatment is Hard anodizing
Acessories for
40ft trailer Vehicle security CCTV pneumatic mast
Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
Packing & Delivery
|
Package information based on different specifitation
|
|
|
|
extended height less than 9m
also weight less than 70kg
|
packed into a carton, inner space filled with foam to protect mast.
wooden case if customer request.
|
|
|
extended height more than 9m
also weight more than 70kg |
packed into plywood case, inner space filled with foam to protect mast.
|
|
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Certifications
Other Specification
|
Pneumatic telescopic mast
|
|
|
|
|
|
|
||||||
|
MODEL No.
|
Extended
Height (m) |
Retracted
Height (m) |
Bottom
OD (mm) |
TOP
OD (mm) |
Section
NO. |
Head-load
(KG) |
||||||
|
TAL-2.0-1.3-150-AT8
|
2
|
1.3
|
118
|
98
|
2
|
150
|
||||||
|
TAL-3.0-1.5-50-AT8
|
3
|
1.5
|
98
|
66
|
3
|
50
|
||||||
|
TAL-4.0-1.3-20-AT8
|
4
|
1.3
|
87
|
43
|
4
|
20
|
||||||
|
TAL-4.5-1.65-50-AT9
|
4.5
|
1.65
|
118
|
66
|
4
|
50
|
||||||
|
TAL-5.0-1.7-40-AT8
|
5
|
1.7
|
98
|
51
|
4
|
40
|
||||||
|
TAL-5.0-1.75-30-AT9
|
5
|
1.75
|
98
|
51
|
4
|
30
|
||||||
|
TAL-6.0-1.7-30-AT8
|
6
|
1.7
|
118
|
51
|
5
|
30
|
||||||
|
TAL-6.0-1.75-12-AT8
|
6
|
1.75
|
87
|
28
|
5
|
12
|
||||||
|
TAL-6.0-2.0-50-AT9
|
6
|
2
|
118
|
66
|
4
|
50
|
||||||
|
TAL-6.0-1.95-30-AT8
|
6
|
1.95
|
87
|
43
|
4
|
30
|
||||||
|
TAL-6.0-1.5-25-AT9
|
6
|
1.5
|
118
|
51
|
5
|
25
|
||||||
|
TAL-7.0-1.95-40-AT8
|
7
|
1.95
|
118
|
51
|
5
|
40
|
||||||
|
TAL-8.0-1.8-50-AT9
|
8
|
1.8
|
160
|
51
|
7
|
50
|
||||||
|
TAL-8.0-2.2-60-AT7
|
8
|
2.2
|
140
|
66
|
5
|
60
|
||||||
|
TAL-8.0-2.0-25-AT8
|
8
|
2
|
118
|
36
|
6
|
25
|
||||||
|
TAL-9.0-2.15-30-AT8
|
9
|
2.15
|
140
|
51
|
6
|
30
|
||||||
|
TAL-10.0-2.4-30-AT7
|
10
|
2.4
|
140
|
51
|
6
|
30
|
||||||
|
TAL-12.0-2.7-250-AT8
|
12
|
2.7
|
279
|
140
|
7
|
250
|
||||||
|
TAL-15.0-3.5-150-AT9
|
15
|
3.5
|
229
|
98
|
6
|
150
|
||||||
|
TAL-16.0-3.0-30-AT8
|
16
|
3
|
180
|
51
|
8
|
30
|
||||||
|
TAL-18.0-3.0-100-AT8
|
18
|
3
|
279
|
66
|
10
|
100
|
||||||
|
TAL-20.0-3.3-55-AT8
|
20
|
3.3
|
229
|
66
|
9
|
55
|
||||||
|
TAL-30.0-4.0-30-AT8
|
30
|
4
|
316
|
51
|
13
|
30
|
||||||
NOTE:
above specification does not include all we can do.
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
