Quick Details
-
Application:
-
Automotive,E-Bike,Atx power supply
-
Connector type:
-
E-Bike connector,Auto connector,Wirie Connector
-
Certificate:
-
IATF16949 ROHS MSDS REACH CQC
-
Material:
-
Phosphor copper/Tin Pated
-
Temperature range:
-
-25℃~85℃
-
Rated voltage:
-
300V. AC/DC
-
Rated current:
-
5A
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZEET
-
Model Number:
-
Mini 5556
-
Application:
-
Automotive,E-Bike,Atx power supply
-
Connector type:
-
E-Bike connector,Auto connector,Wirie Connector
-
Certificate:
-
IATF16949 ROHS MSDS REACH CQC
-
Material:
-
Phosphor copper/Tin Pated
-
Temperature range:
-
-25℃~85℃
-
Rated voltage:
-
300V. AC/DC
-
Rated current:
-
5A

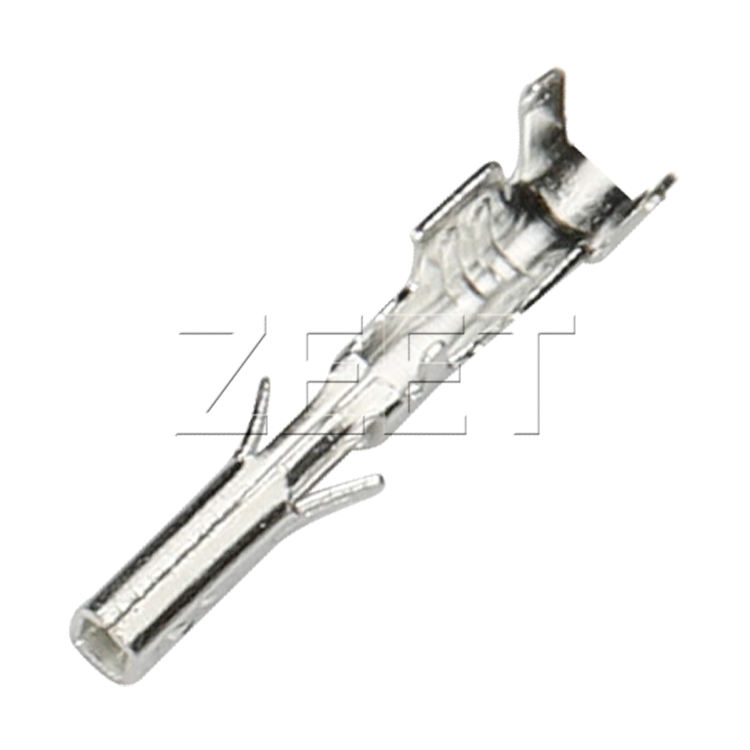

Products Description
|
Product Name
|
Mini 5556
|
|
Material
|
Phosphor Copper/Tin Plated
|
|
Thickness
|
0.2mm
|
|
Type
|
Crimp
|
|
Wire Range
|
24~22AWG (0.2~0.3mm²)
|
|
Temperature Range
|
-25℃～85℃
|
|
Rated Voltage
|
250V. AC/DC
|
|
Rated Current
|
5A Max
|
|
Package
|
12000 PCS/ROLL
|
|
Certification
|
IATF16949、ROHS、MSDS、REACH、CQC.
|
|
MOQ
|
Most product not have MOQ,the common connectos are in stock.Small order can be accepted.
|
|
Sample
|
10 PCS Free
|
|
Serivce
|
ODM/OEM
|
|
Market
|
The United States, Germany, Canada, Spain, India, Japan, South Korea, Taiwan, Vietnam, Myanmar
|
Application
Products are widely used in household appliances, automobiles, new energy electric vehicles, motorcycles, aviation,communications,etc.
Products Matching
Note
The technical standards and dimensions of the above drawings may change with time, for reference only. If in doubt, please contact the backstage technician to verify.
