Quick Details
-
Brand Name:
-
Tonhe
-
Name:
-
DN25 electric timer control ball valve
-
Valve size:
-
DN25 1" INCH
-
Rated voltage:
-
AC/DC9-24V
-
keeping valve open time:
-
0 H : 0M :0S --99 H 59 M 59 S
-
keeping valve close time:
-
0 H : 0M :0S --99 H 59 M 59 S
-
Life time:
-
70000 times(testing pressure is 0.4MPa, medium is water)
-
Actuator:
-
A20 gray, 3N.m
-
Environment temperature:
-
15℃~60℃
-
current consumption:
-
≤4W
-
Working current:
-
≤500mA
Quick Details
-
Port Size:
-
1" inch
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-S25-B2-C
-
Brand Name:
-
Tonhe
-
Name:
-
DN25 electric timer control ball valve
-
Valve size:
-
DN25 1" INCH
-
Rated voltage:
-
AC/DC9-24V
-
keeping valve open time:
-
0 H : 0M :0S --99 H 59 M 59 S
-
keeping valve close time:
-
0 H : 0M :0S --99 H 59 M 59 S
-
Life time:
-
70000 times(testing pressure is 0.4MPa, medium is water)
-
Actuator:
-
A20 gray, 3N.m
-
Environment temperature:
-
15℃~60℃
-
current consumption:
-
≤4W
-
Working current:
-
≤500mA

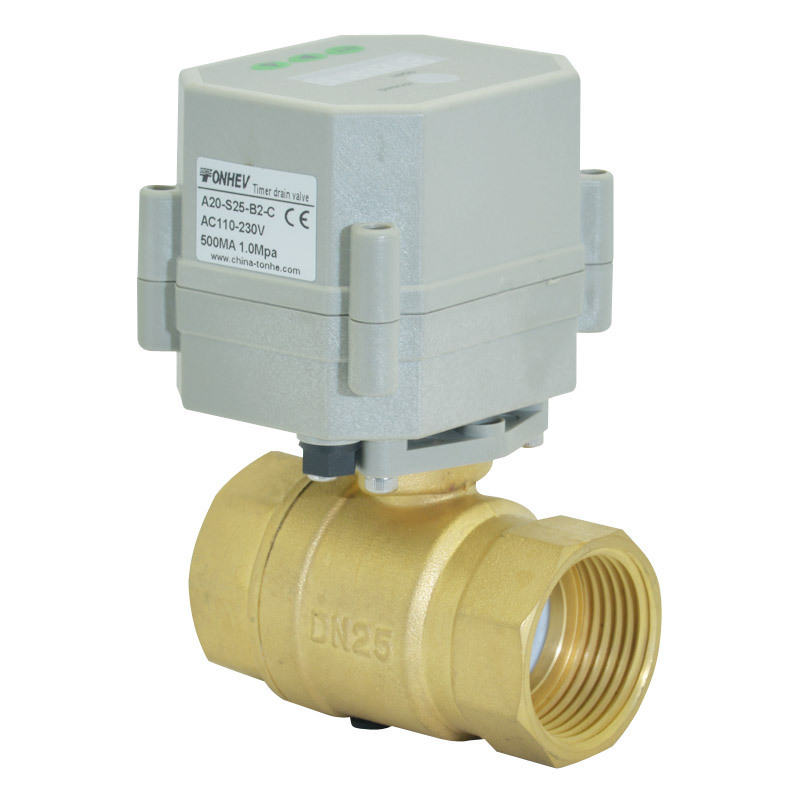

2 way 1" DN25 12v 24v electric timer control brass ball valve used for air compressor automatic drainage
Pls confirm the two details when you order them.
| No. | Item | Need to be confirmed |
| 1 |
Valve thread |
BSP or NPT |
Timer drain valve parameter specifies : 1. 1/4'' - 1-1/4'' in brass and ss304
2. Rated voltage is AC/DC9-24V
3. Long time presetting
4. Passed CE, IP67
5. Operating time is 7s
6. 70000 circles life
time preset : 1. The time for keeping valve open :0 H : 0M :0S --99 H 59 M 59 S The time for keeping valve closed : 0 H : 0M :0S --99 H 59 M 59 S
2. clock stype time preseting :9 pair time preseting
valve can have spring return function ( the valve can close in case of power is failure )
Dimension Figure
For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection
