Quick Details
-
Product name:
-
noise barrier
-
Material:
-
Low Carbon Steel Wire
-
Surface treatment:
-
Galvanized+PVC Coated
-
Application:
-
Privacy Garden Fence Protection
-
Color:
-
Customized Color
-
Function:
-
Protective Fence Panel
-
Size:
-
Customer Size
-
Length:
-
Customers Request
-
Height:
-
Customiazed1.5m 1.8m 2m
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Rot Proof, Waterproof
-
Place of Origin:
-
China
-
Product name:
-
noise barrier
-
Material:
-
Low Carbon Steel Wire
-
Surface treatment:
-
Galvanized+PVC Coated
-
Application:
-
Privacy Garden Fence Protection
-
Color:
-
Customized Color
-
Function:
-
Protective Fence Panel
-
Size:
-
Customer Size
-
Length:
-
Customers Request
-
Height:
-
Customiazed1.5m 1.8m 2m
product description

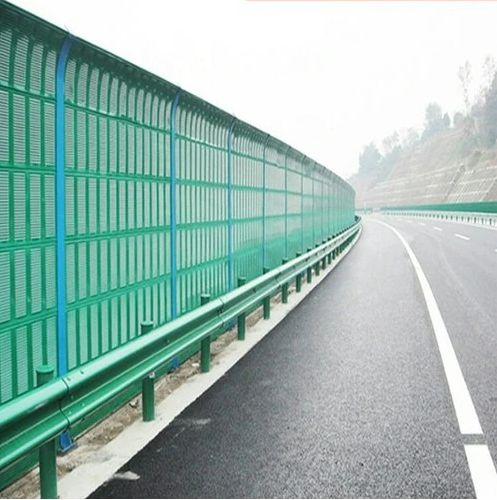

Sound Barrier / Noise Barrier
In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus assuming increasing and crucial importance.
Sound barrier is made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the noise barrier.
In our times, noise is high among those pollution sources that most impair our quality of life. Ever more traffic, engendered by continually developing mobility, further aggravates the nuisance. Measures to shield us from such environmental burdens are thus assuming increasing and crucial importance.
Sound barrier is made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the noise barrier.
.Material:
* Metal type: galvanized sheet, aluminum sheet.
* Appearance: shutter type, punching type.
* Colors: clear, green, blue, yellow, brown, silvery gray, red (Other color can be ordered according to you request
* Transparent sheet: PC, PMMA
* Metal type: galvanized sheet, aluminum sheet.
* Appearance: shutter type, punching type.
* Colors: clear, green, blue, yellow, brown, silvery gray, red (Other color can be ordered according to you request
* Transparent sheet: PC, PMMA
Specification
|
Parts list
|
Items
|
Product description
|
|
|
|
|
Noise barrier panel
|
Metal material
|
Galvanized sheet aluminum alloy sheet, color plate
|
|
|
|
|
|
Transparent material
|
Glass, PC board, acrylic board, etc.
|
|
|
|
|
|
Other material
|
High strength cement, cement wood chips, glass steel, etc.
|
|
|
|
|
|
Hole pattern
|
Louver holes; common hole spacing 20*137, 20*182
|
|
|
|
|
|
|
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2
holes 4 distances
|
|
|
|
|
|
Aperture ratio
|
Not less than 25%
|
|
|
|
|
|
Common size
|
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
|
|
|
|
|
|
surface concave groove
|
Can be customized according to drawings or customer requirements
|
|
|
|
|
|
Surface treatment
|
Electrostatic powder coating, fluorocarbon spraying
|
|
|
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected
according to the national standard color card
|
|
|
|
|
H shape post
|
Material
|
Q235B
|
|
|
|
|
|
Common size
|
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
|
|
|
|
|
|
Common height
|
2m-6m up to12m
|
|
|
|
|
|
Flange
|
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
|
|
|
|
|
|
|
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
|
|
|
|
|
|
Surface treatment
|
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
|
|
|
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected
according to the national standard color card
|
|
|
|
|
Noise absorb material
|
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.
|
|
|
|
|
Advantages of Our Sound Noise Barrier System:
* Highly absorptive noise barrier system
* Easy installation or maintenance replacement
* Can be incorporated with other materials
* Can be easily relocated
* Minimum repair required only damaged panels to be replaced
* Fits standard support post systems
* Standard/custom modular sizes
* Manufacturing is consistent
* Custom panel sizes and shapes
* Choice of colours
* Framed clear or coloured acrylic
* Pre-printed graphics
* Using security cables on bridges and slopes are at lower risk
* Fire resistant
* Maintenance free
* Low life cycle costs
* Factory applied Anti-graffiti coating
* Highly absorptive noise barrier system
* Easy installation or maintenance replacement
* Can be incorporated with other materials
* Can be easily relocated
* Minimum repair required only damaged panels to be replaced
* Fits standard support post systems
* Standard/custom modular sizes
* Manufacturing is consistent
* Custom panel sizes and shapes
* Choice of colours
* Framed clear or coloured acrylic
* Pre-printed graphics
* Using security cables on bridges and slopes are at lower risk
* Fire resistant
* Maintenance free
* Low life cycle costs
* Factory applied Anti-graffiti coating
