Products Description

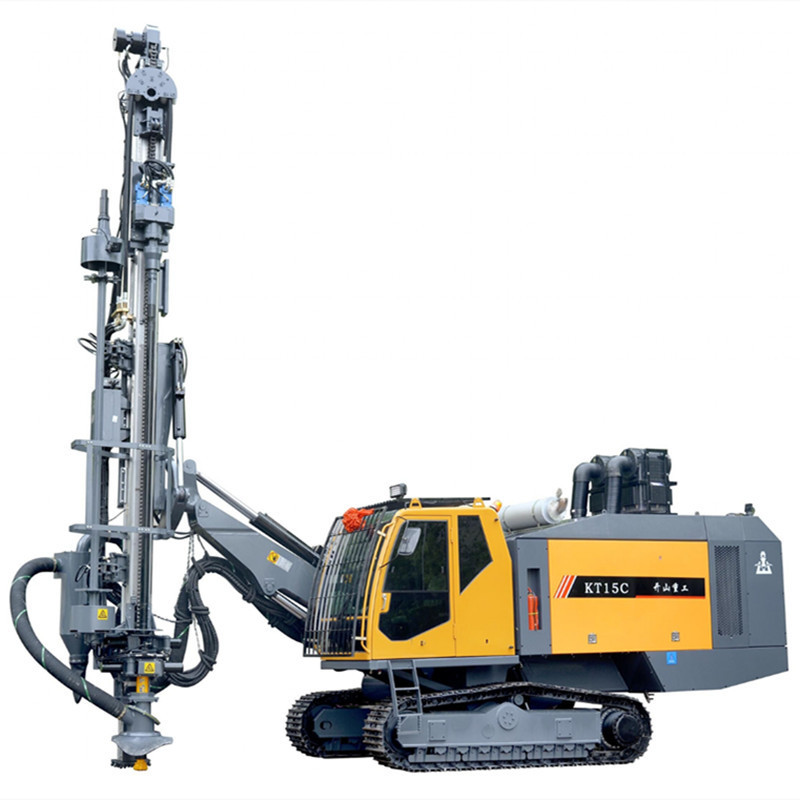

KT15 Down The Hole Bored Pile Drilling Rig Open-Air Crawler Drilling Rig For Quarrying
Kaishan KT15 integrated surface DTH drilling rig is a new drilling device which is carefully designed for large open-pit mine based on our development and production of DTH drilling rigs for many years.The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
|
Model No
|
Drilling rig KT15
|
|
Rock hardness
|
f=6-20
|
|
Hole diameter
|
135-190mm
|
|
Economic Drill depth
|
35m(Automatically connecting rods)
|
|
Walking speed
|
3.0km/h
|
|
Grade ability
|
25°
|
|
Ground clearance
|
430mm
|
|
Diesel motor
|
Cummins QSZ13-C400
|
|
Machine Power
|
298KW,2200r/min
|
|
Screw compressor air delivery
|
22m³/min
|
|
Working pressure
|
24bar
|
|
Overall Dimension(L*W*H)
|
11500 ×2716×3540(mm)
|
|
Weight
|
23000kgs
|
|
Rotating speed
|
0-118r/min
|
|
Rotation torque
|
4100N·m
|
|
Lifting Power
|
65000N
|
|
Push type
|
Motor-Chain
|
|
Push length(mm)
|
5000mm
|
|
Carriage pitch angle
|
125°
|
|
Carriage swing angle
|
Right 97° left 33°
|
|
Drill arm swing angle
|
Right 42° left 15°
|
|
The leveling Angle frame
|
Up 10° down 10°
|
|
Compensation length(mm)
|
1800mm
|
|
Drill hammer
|
HD55A
|
|
Drill pipe
|
φ89×5000/φ102×5000
|
|
Connect stem implement ability
|
6+1
|
|
Catching dust way
|
Dry (hydraulic drive whirlwind layer streaming)
|
|
Connect drilling rod
|
Automatically connecting and discharging
|
|
Since artery card way
|
Electro-hydraulic vacancy prevent card
|
|
Pipe lubrication method
|
Automatic spray oil lubrication
|
|
Drill pipe thread protection
|
Equipped with floating street protection pipe threads
|
|
Drill hole angle indicator
|
Two-dimension electron angle indicator
|
|
Drill hole depth indicator
|
Drill angle and Electron hole depth indicator
|
Details Images
Features
of
KT15 Down The Hole Bored Pile Drilling Rig Open-Air Crawler Drilling Rig For Quarrying
1. The push length is 5meter once,and saving the time of loading and uploading, improve work efficiency
2. A disc type automatic rod connecting and discharging system is available in our high pressure integrated drilling rig. The drilling depth could reach 35m.
3. A luffing mechanism is used for the carriage swing angle adjustment. The total swing angle
is 130° (97° to the right and 33° to the left). There is no need to change the pivot for the switching between horizontal hole and vertical hole. The lowest horizontal hole will be at
550mm, while the highest position will be at 4500mm.
4. A Cummins electronic fuel injection engine is adopted. Its power and performance are both excellent.
5. The single engine outputs its power at both ends. The structure is compact and the maintenance is convenient.
6. The high air pressure and large displacement (22m3/min, 20bar air) compressing system
can ensure the fast drilling speed.
7. The automatic leveling function of the walking mechanism makes the high pressure integrated drilling rig more suitable for bumpy roads.
8. A special rod positioning mechanism is adopted to guide the drilling tools during the entire drilling process, avoiding any hole deviation.
2. A disc type automatic rod connecting and discharging system is available in our high pressure integrated drilling rig. The drilling depth could reach 35m.
3. A luffing mechanism is used for the carriage swing angle adjustment. The total swing angle
is 130° (97° to the right and 33° to the left). There is no need to change the pivot for the switching between horizontal hole and vertical hole. The lowest horizontal hole will be at
550mm, while the highest position will be at 4500mm.
4. A Cummins electronic fuel injection engine is adopted. Its power and performance are both excellent.
5. The single engine outputs its power at both ends. The structure is compact and the maintenance is convenient.
6. The high air pressure and large displacement (22m3/min, 20bar air) compressing system
can ensure the fast drilling speed.
7. The automatic leveling function of the walking mechanism makes the high pressure integrated drilling rig more suitable for bumpy roads.
8. A special rod positioning mechanism is adopted to guide the drilling tools during the entire drilling process, avoiding any hole deviation.
