Quick Details
-
Model Number:
-
KCD1 waterproof
-
Max. Current:
-
5A
-
Mechanical Life:
-
10000times
-
Certification:
-
CE CQC, CE ROHS TUV CCC
-
Rating:
-
5A
-
Temperture:
-
-10℃+55℃
-
Mechanical Lifespan:
-
≥30000cycles
-
Electrical Lifespan:
-
≥10000cycles
-
Contact Resistance:
-
20MΩ MAX
-
Insulation Resistance:
-
100MΩ Min
-
Withstand Resistance:
-
1500VAC for 1minute
-
Actuating Force:
-
4-8N
-
Housing:
-
PA66
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
lanzmfg
-
Model Number:
-
KCD1 waterproof
-
Max. Current:
-
5A
-
Mechanical Life:
-
10000times
-
Certification:
-
CE CQC, CE ROHS TUV CCC
-
Rating:
-
5A
-
Temperture:
-
-10℃+55℃
-
Mechanical Lifespan:
-
≥30000cycles
-
Electrical Lifespan:
-
≥10000cycles
-
Contact Resistance:
-
20MΩ MAX
-
Insulation Resistance:
-
100MΩ Min
-
Withstand Resistance:
-
1500VAC for 1minute
-
Actuating Force:
-
4-8N
-
Housing:
-
PA66

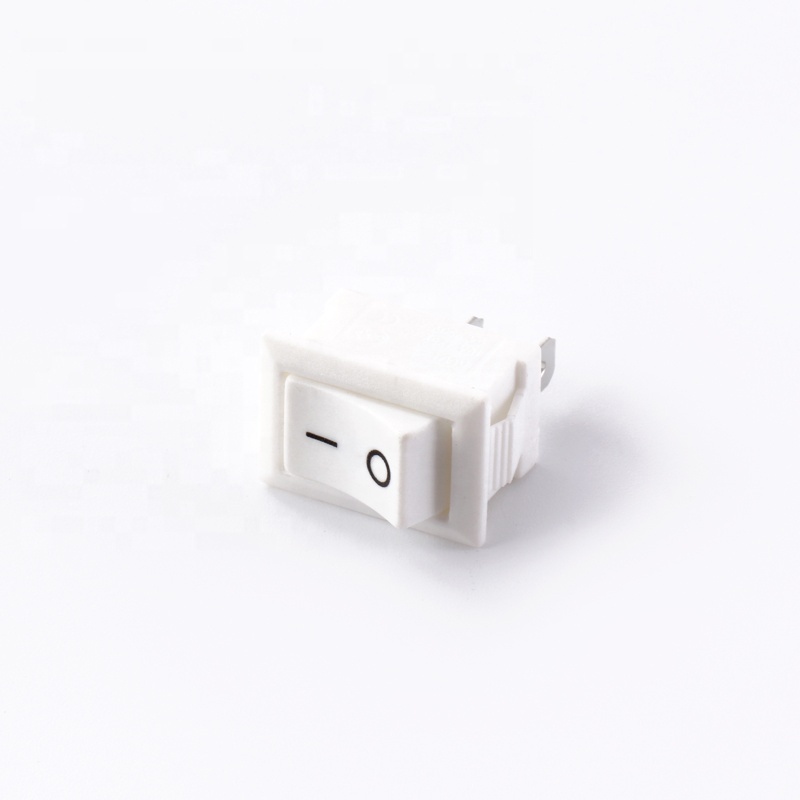

KCD1 waterproof Rocker Switch
Product Description
DIMENSION
TECHNICAL PARAMETER
| SPECIFICATIONS | |||
| BRAND NAME: | LANZMFG | ||
| Certification: | CE,CQC,KC | ||
| RATING: | 3A/6A/15A/20A/25A | ||
| TEMPERATURE: | -10 ~55 | ||
| MECHANICAL LIFE: | Over 30,000Cycles | ||
| ELECTRICAL LIFE: | Over 10,000Cycles | ||
| CONTACT RESISTANCE: | 20MΩ Max | ||
| NSULATION RESISTANCE: | 100MOΩ Min | ||
| WITHSTAND RESISTANCE: | 1500VAC for 1Minute | ||
| AMBIENT TEMPERATURE: | TERMINAL SIDE:-20~+105℃ ACTUATING SIDE:-20~+55℃ | ||
| ACTUATING FORCE: | 4-8N(depends on different switch functions) | ||
| MATERIALS | |||
| HOUSING | PA66 | ||
| BUTON: | PA66 | ||
| CONTACTS: | Silver Alloy | ||
| TERMINALS: | BRASS Silver Plated | ||
