Quick Details
-
Material:
-
carton, wooden case
-
Weight:
-
3.5
-
Size:
-
1160*518*7mm, 1160*518*7mm
-
Productivity:
-
320-560L/H
-
Weight (KG):
-
3.5 kg
-
Item name:
-
Flat sheet mbr element
-
Item no.:
-
PE-100
-
Membrane area:
-
1.0m2
-
Membrane material:
-
PVDF+PET
-
Pore size:
-
0.1-0.4micron
-
Produce water Q (L/day):
-
400~700
-
Aeration rate (L/min):
-
10
-
MLSS (mg/L):
-
5000-15000
-
PH:
-
2-12
Quick Details
-
Core Components:
-
mbr, flat sheet membrane
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JHM
-
Material:
-
carton, wooden case
-
Weight:
-
3.5
-
Size:
-
1160*518*7mm, 1160*518*7mm
-
Productivity:
-
320-560L/H
-
Weight (KG):
-
3.5 kg
-
Item name:
-
Flat sheet mbr element
-
Item no.:
-
PE-100
-
Membrane area:
-
1.0m2
-
Membrane material:
-
PVDF+PET
-
Pore size:
-
0.1-0.4micron
-
Produce water Q (L/day):
-
400~700
-
Aeration rate (L/min):
-
10
-
MLSS (mg/L):
-
5000-15000
-
PH:
-
2-12

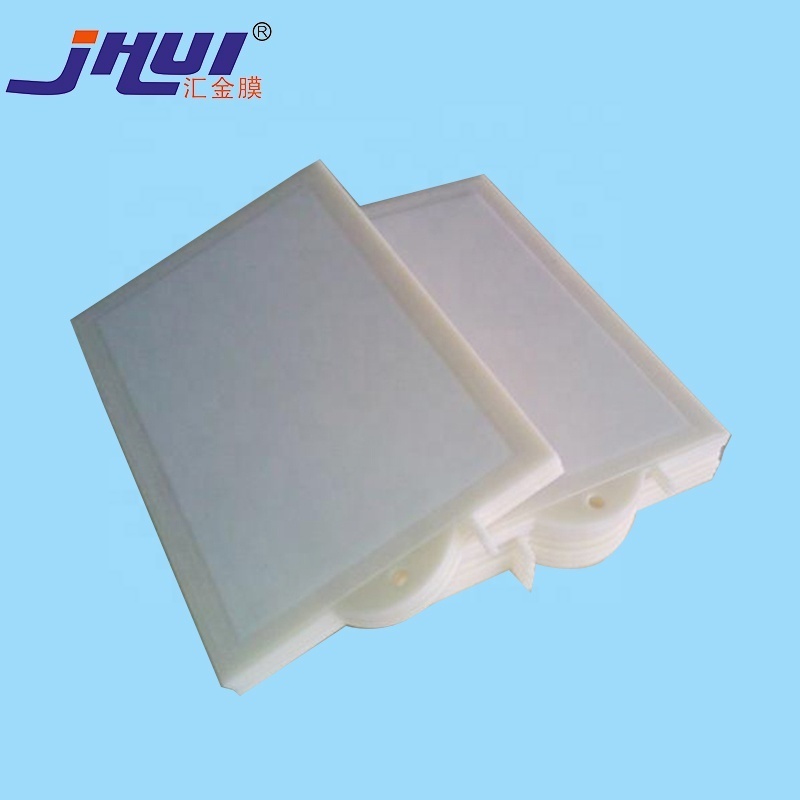

Flat Sheet Membrane MBR
Flat Sheet Membrane MBR
Product Introduction
PE style membrane element
|
Element parameters
|
PE-25
|
PE-80
|
PE-100
|
PE-150
|
|||
|
Effective membrane area (M²/pc)
|
0.25
|
0.8
|
1.0
|
1.5
|
|||
|
Size(L*W*D mm)
|
340*465*5
|
998*490*7.0
|
1160*518*7.5
|
1750*490*7
|
|||
|
Weight (kgs)
|
1
|
2.9
|
3.5
|
5.5
|
|||
|
Produce water Q (L/day)
|
100~150
|
320~560
|
400~700
|
600~1050
|
|||
|
aeration rate (L/min)
|
2.5
|
8
|
10
|
12
|
|||
|
Pore size (µm)
|
0.1~0.4
|
|
|
|
|||
|
Support plate material
|
ABS
|
|
|
|
|||
|
MLSS (mg/L)
|
5000 ~15000
|
|
|
|
|||
|
PH
|
2 ~12
|
|
|
|
|||
|
Effluent turbidity (NTU)
|
≦ 1.0
|
|
|
|
|||
|
Temperature(℃)
|
5~ 40
|
|
|
|
|||
|
Membrane material
|
PVDF (Polyvinylidene fluoride ) +PET
|
|
|
|
|||
|
PE150 series membrane module
|
|
|
|
|
|
|||||
|
Model
|
|
PE150-50
|
PE150-100
|
PE150-150
|
PE150-200
|
|||||
|
Produced capacity (m³/d)
|
Sewage
|
30
|
60
|
90
|
120
|
|||||
|
|
Industrial waste water
|
18.5
|
38
|
56
|
75
|
|||||
|
Element quantity (piece)
|
|
50
|
100
|
150
|
200
|
|||||
|
Effective membrane area(m²)
|
|
75
|
150
|
225
|
300
|
|||||
|
Size( L*W*H mm)
|
|
850*700*2450
|
1700*700*2450
|
2550*700*2450
|
3400*700*2450
|
|||||
|
Weight (kgs)
|
|
500
|
800
|
1200
|
1600
|
|||||
|
Collect water pipe
|
Pipe dia.
|
DN40
|
|
|
|
|||||
|
|
Connection way
|
Flange
|
|
|
|
|||||
|
Support frame
|
|
SUS304
|
|
|
|
|||||
|
Aeration pipe
|
Pipe dia.
|
Flange
|
|
|
|
|||||
|
|
Connection way
|
DN65
|
|
|
|
|||||
|
transmembrane pressure(TMP)
|
|
≧-30KPa
|
|
|
|
|||||
|
Washing way
|
|
Washing on line
|
|
|
|
|||||
|
Element installation way
|
|
plug - in
|
|
|
|
|||||
|
PE100 series membrane module
|
|
|
|
|
|
|||||
|
Model
|
|
PE100-50
|
PE100-100
|
PE100-150
|
PE100-200
|
|||||
|
Produced capacity (m³/d)
|
Sewage
|
20
|
40
|
60
|
80
|
|||||
|
|
Industrial waste water
|
12.5
|
25
|
37.5
|
50
|
|||||
|
Element quantity (piece)
|
|
50
|
100
|
150
|
200
|
|||||
|
Effective membrane area(m²)
|
|
50
|
100
|
150
|
200
|
|||||
|
Size( L*W*H mm)
|
|
850*700*1800
|
1700*700*1800
|
2550*700*1800
|
3400*700*1800
|
|||||
|
Weight (kgs)
|
|
380
|
500
|
800
|
1100
|
|||||
|
Collect water pipe
|
Pipe dia.
|
DN40
|
|
|
|
|||||
|
|
Connection way
|
Flange
|
|
|
|
|||||
|
Support frame
|
|
SUS304
|
|
|
|
|||||
|
Aeration pipe
|
Pipe dia.
|
Flange
|
|
|
|
|||||
|
|
Connection way
|
DN65
|
|
|
|
|||||
|
transmembrane pressure(TMP)
|
|
≧-30KPa
|
|
|
|
|||||
|
Washing way
|
|
Washing on line
|
|
|
|
|||||
|
Element installation way
|
|
plug - in
|
|
|
|
|||||
|
PE80 series membrane module
|
|
|
|
|
|
|||||
|
Model
|
|
PE80-50
|
PE80-100
|
PE80-150
|
PE80-200
|
|||||
|
Produced capacity (m³/d)
|
Sewage
|
16
|
32
|
48
|
64
|
|||||
|
|
Industrial waste water
|
10
|
20
|
30
|
40
|
|||||
|
Element quantity (piece)
|
|
50
|
100
|
150
|
200
|
|||||
|
Effective membrane area(m²)
|
|
40
|
80
|
120
|
160
|
|||||
|
Size( L*W*H mm)
|
|
850*700*1600
|
1700*700*1600
|
2550*700*1600
|
3400*700*1600
|
|||||
|
Weight (kgs)
|
|
350
|
500
|
650
|
800
|
|||||
|
Collect water pipe
|
Pipe dia.
|
DN40
|
|
|
|
|||||
|
|
Connection way
|
Flange
|
|
|
|
|||||
|
Support frame
|
|
SUS304
|
|
|
|
|||||
|
Aeration pipe
|
Pipe dia.
|
Flange
|
|
|
|
|||||
|
|
Connection way
|
DN65
|
|
|
|
|||||
|
transmembrane pressure(TMP)
|
|
≧-30KPa
|
|
|
|
|||||
|
Washing way
|
|
Washing on line
|
|
|
|
|||||
|
Element installation way
|
|
plug - in
|
|
|
|
|||||
|
Water treatment requirement
|
Treatment process
|
|
Removal of organic matter
|
Aerobic tank
|
|
Removal of organic matter +Nitrogen removal
|
Aerobic pool + Anoxic tank
|
|
Removal of organic matter +Phosphorus removal
|
Chemical Phosphorus removal + Aerobic tank
|
|
Removal of organic matter +Nitrogen removal +Phosphorus removal
|
anaerobic tank + Anoxic tank + Aerobic tank
|
|
high concentration of organic compounds
|
anaerobic tank + MBR
|
