Quick Details
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QIWEI
-
Weight (KG):
-
300
-
Dimension(L*W*H):
-
950*700*1450mm
-
Wire Diameter Range (mm):
-
0.04 - 0.6 mm
-
Supply voltage:
-
220v±10% 50HZ
-
Source pressure:
-
0.45-0.7 Mpa
-
Rated power:
-
2.5KW
-
Winding speed:
-
2000-6000RPM
-
Counting accuracy:
-
±0.01 circle
-
Line type precision:
-
0.01 mm
-
Product type:
-
Copper Wire Coil Winding Machine
-
After-sales Service Provided:
-
Online Support
-
Delivery time:
-
Within 60 Days
-
Wire type:
-
Flat Wire
Quick Details
-
Max. Load (KG):
-
10 KG
-
Length of Axis (mm):
-
1 mm
-
Center Height (mm):
-
2 mm
-
Max.Transformer Capacity(kVA):
-
5 kVA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QIWEI
-
Weight (KG):
-
300
-
Dimension(L*W*H):
-
950*700*1450mm
-
Wire Diameter Range (mm):
-
0.04 - 0.6 mm
-
Supply voltage:
-
220v±10% 50HZ
-
Source pressure:
-
0.45-0.7 Mpa
-
Rated power:
-
2.5KW
-
Winding speed:
-
2000-6000RPM
-
Counting accuracy:
-
±0.01 circle
-
Line type precision:
-
0.01 mm
-
Product type:
-
Copper Wire Coil Winding Machine
-
After-sales Service Provided:
-
Online Support
-
Delivery time:
-
Within 60 Days
-
Wire type:
-
Flat Wire
Product Paramenters
|
Product Description
|

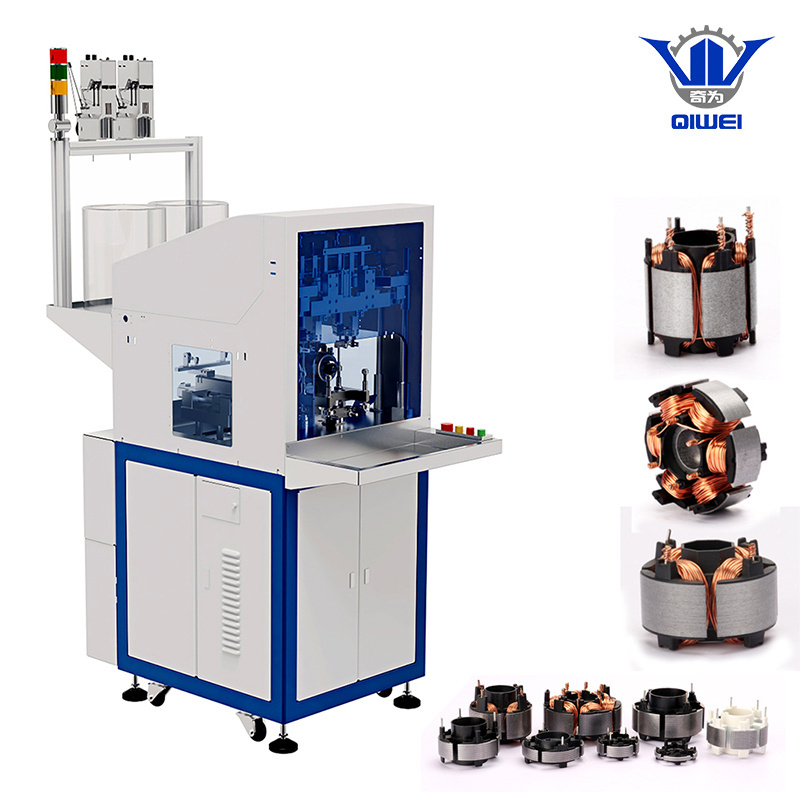

Model QMW-2207 winding machine is a 4 stations (2 stations winding + 2 stations loading and unloading) automatic winding,automatic wiring,automatic pole changing,automatic wrapping PIN angle,automatic dividing line,automatic cutting line head and end Last ,customer can choose their own requirement to adding safety sensor,Pneumatic scissors,etc.
|
|
Scope of application
|
4-poles or multi-pole brushless fan core quality winding Outer diameter Φ 15 to φ 42 High-quality winding of cooling fan iron core
|
|
Efficiency reference
|
Use the outer diameter φ 18 iron core,0.25 wire diameter,98T per pole as an example, the efficiency about 280 PCS/h.
|
