Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
INFRONT
-
Weight:
-
14500 kg
-
Dimension(L*W*H):
-
8,974*2,635*3,170mm
-
Machine Weight:
-
14500KG
-
Blade Length:
-
3974 mm
-
Max. Drawbar Pull:
-
≥78 Kn
-
Rated Power:
-
140kW
-
Rated Revs:
-
2200rpm
-
Model:
-
SDEC
-
Max. Torque:
-
720 Nm
-
Max. Lifting Height:
-
475mm
-
Max. Depth of Cut:
-
715mm
-
Max. Blade Tip - Forward:
-
40
Quick Details
-
Engine Brand:
-
SHANGCHAI
-
Working diameter:
-
3974 mm
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
INFRONT
-
Weight:
-
14500 kg
-
Dimension(L*W*H):
-
8,974*2,635*3,170mm
-
Machine Weight:
-
14500KG
-
Blade Length:
-
3974 mm
-
Max. Drawbar Pull:
-
≥78 Kn
-
Rated Power:
-
140kW
-
Rated Revs:
-
2200rpm
-
Model:
-
SDEC
-
Max. Torque:
-
720 Nm
-
Max. Lifting Height:
-
475mm
-
Max. Depth of Cut:
-
715mm
-
Max. Blade Tip - Forward:
-
40

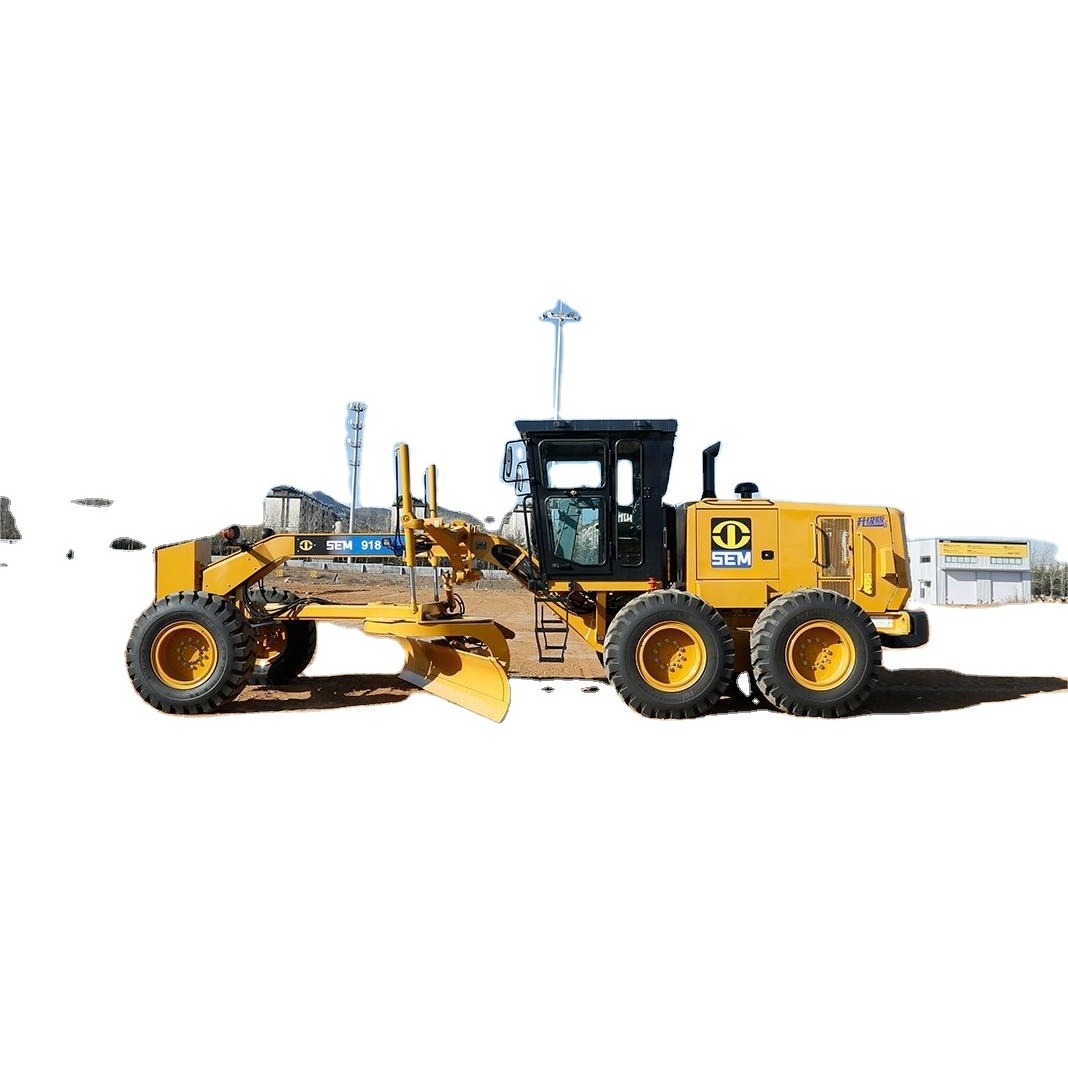

China road machinery Articulated Paver graders hydraulic motor grader with Ripper And Blade
engine
Shangchai SC7H National III emission engine.
Electronic control, high voltage common rail.
Four-valve structure, supercharged and intercooled, more complete oil and gas mixing, lower fuel consumption and more environmentally friendly emissions.
Transmission system
Hangto electronically controlled fixed shaft gearbox.
Caterpillar (Qingzhou) self-made motor grader drive axle, modular design, four-planet wheel side reduction mechanism, oil bath forced lubrication of sprocket shaft and bearings.
Grease-free rear drive axle, heavy-duty tension adjustment-free drive chain.
External caliper disc brake, shorter braking distance, brake pads are common to SEM mechanical loaders and easy to replace.
The front drive shaft with new structure is adopted to effectively reduce noise.
cooling system
The intercooler pipeline is optimized, and the intake resistance is lower.
Hydraulically driven fan, able to adapt to higher ambient temperature requirements.
Working hydraulic system
Adopt international famous brand variable plunger pump, reliable and durable.
The load-sensing hydraulic system provides predictable cylinder movement speed for higher leveling accuracy.
working equipment
A-type traction frame adopts box-type structure, which is reliable and durable.
The connection ball head of the traction frame adopts a detachable design and is fixed to the traction frame by bolts, which is convenient for replacement and low cost.
Optimize the tooth shape and machining accuracy of the rotary ring gear, make the operation more stable and increase the service life.
Improved 7-hole connecting rod bushing strength.
The side shift cylinder bushing is upgraded to alloy material, which is more wear-resistant and has a longer service life.
Electrical system
Optimized wiring harness layout for easier installation, inspection and maintenance.
Upgraded Nordic work lights for more reliable quality.
Maintenance-free battery maintenance is more convenient.
More comfortable driving operating environment
A multi-directional adjustable shock-absorbing seat with armrests and headrests is adopted, and the adjustable steering column provides the driver with a first-class driving environment.
The hydraulically driven fan is energy-saving and noise-reducing, and the noise at the driver's ear is as low as 81 decibels, which is 5% lower than the industry standard, further improving the driver's operating comfort.
The cab is equipped with air-conditioning as standard, the number of air-conditioning outlets is increased, the air volume is distributed more evenly, and the right-hand control layout is optimized to improve comfort.
