Quick Details
-
Condition:
-
New
-
Max speed:
-
21000r/min
-
Max RCF:
-
50400xg
-
Max capacity:
-
6x500ml
-
Speed accuracy:
-
± 10r/min
-
Time setting:
-
1s~99h 59min59s
-
Temperature setting:
-
-20 ℃ ~ +40 ℃
-
Noise:
-
<65db(A)
-
Consumption:
-
5kw
-
Net weight (No rotor):
-
290kg
Quick Details
-
Brand Name:
-
Haicoer
-
Model Number:
-
GL-21M
-
Place of Origin:
-
Shanghai, China
-
Condition:
-
New
-
Max speed:
-
21000r/min
-
Max RCF:
-
50400xg
-
Max capacity:
-
6x500ml
-
Speed accuracy:
-
± 10r/min
-
Time setting:
-
1s~99h 59min59s
-
Temperature setting:
-
-20 ℃ ~ +40 ℃
-
Noise:
-
<65db(A)
-
Consumption:
-
5kw
-
Net weight (No rotor):
-
290kg

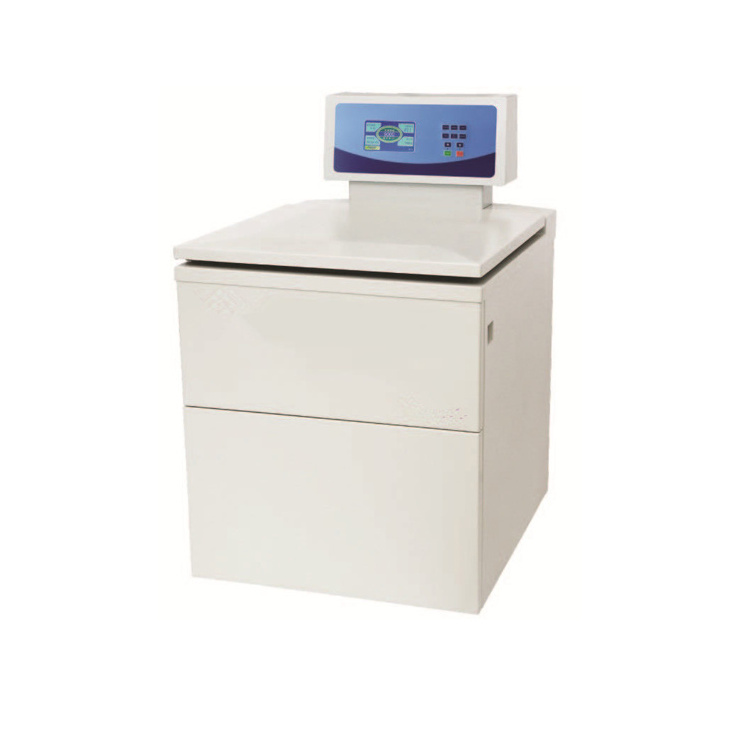

GL-21M Floor-standing High-Speed Refrigerated Centrifuge
Technical performance
• The max speed is 25000rpm, and the largest capacity of fixed rotor is 4X1000ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• Essential configuration included rotor exchange, speed/RCF, time,temperature, 9 levels acceleration and deceleration is the most economical choice.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model
|
GL-21M
|
|
Max speed
|
21000r/min
|
|
Max RCF
|
50400xg
|
|
Max capacity
|
6x500ml
|
|
Speed accuracy
|
± 10r/min
|
|
Time setting
|
1s~99h 59min59s
|
|
Temperature setting
|
-20 ℃ ～ +40 ℃
|
|
Temperature accuracy
|
±1 ℃
|
|
Compressor unit
|
French Tecumseh Compressor Unit R404a
|
|
Noise
|
<65db(A )
|
|
Power supply
|
AC220V, 50Hz-60Hz
|
|
Consumption
|
5kw
|
|
Dimension(L×W×H)
|
710mm×840mm×1200mm
|
|
Packing size(L×W×H)
|
889mm×960mm×1450mm
|
|
Net weight (No rotor)
|
290kg
|
Rotor
Capacity: 24x1.5ml/2.2ml
Max Speed: 25000r/min/21000r/min
Max RCF: 64983xg/50400xg
Adaptor: 0.2ml、0.5ml
Capacity: 16x10ml
Max Speed: 23000r/min/21000r/min
Max RCF: 60900xg/50400xg
Adaptor: 1.5ml、5ml
Capacity: 8x50ml
Max Speed: 18000r/min
Max RCF: 40930xg
Adaptor: 10ml、20ml
Capacity: 6x250ml
Max Speed: 14000r/min/12000r/min
Max RCF: 30200xg/22470xg
Adaptor: 50ml、100ml
Capacity: 6x500ml
Max Speed: 10000r/min/9000r/min
Max RCF: 17800xg/14400xg
Adaptor: 50ml、100ml、250ml
GL-25M only
Capacity: 4x1000ml
Max Speed: 8000r/min
Max RCF: 12879xg
Adaptor: 250ml、500ml
Capacity: 8x100ml
Max Speed: 14000r/min
Max RCF: 26952xg
Adaptor: 10ml、20ml
Capacity: 32x15ml(Round)
Max Speed: 14000r/min
Max RCF: 34512xg
Adaptor: 5ml、10ml
Capacity: 12x15ml(Conical)
Max Speed: 16000r/min
Max RCF: 30194xg
Other rotors supplied
|
Angle rotor
|
Capacity
|
Max.Speed
|
Max.RCF
|
|
No.1
|
10x5ml
|
25000r/min/21000r/min
|
64983xg/50400xg
|
|
No.1
|
36x1.5/2.2ml
16x10/5ml
|
21000r/min
|
50400xg
|
|
No.2
|
12x20ml
|
16500r/min
|
31100xg
|
|
No.3
|
18x10ml
|
21000r/min
|
50400xg
|
|
No.5
|
6x70ml
|
15000r/min
|
25700xg
|
|
No.11
|
6x50ml
|
20000r/min
|
43000xg
|
|
No.13
|
6x250ml
|
12000r/min
|
22470xg
|
|
No.17
|
6x600ml
|
7000r/min
|
9100xg
|
|
Continuous rotor
|
|
|
|
|
No.11/No.23
|
1000ml
|
16000r/min
|
28100xg
|
|
No.12/No.24
|
3000ml
|
10000r/min
|
14800xg
|
|
Swing rotor
|
|
|
|
|
No.7/No.20
|
Microplate 2x2x96
|
4000r/min
|
2236xg
|
|
No.8/No.20
|
4x750ml
|
5000r/min
|
5470xg
|
|
No.13/No.7
|
4x50ml
4x85ml
32x15ml
|
10000r/min/5000r/min
|
15316xg4390xg
|
|
No.19
|
96x10ml
72x15ml
20x50ml
|
5000r/min
|
4390xg
|
|
No.20
|
Microplate 2x2x96
|
4000r/min
|
2236xg
|
|
No.21
|
4x50ml/4x85ml
|
8000r/min
|
9800xg
|
