- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Type:
-
Linear Actuator Swing Gate Opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSGO-330K
-
Temperature:
-
-45℃~+65℃
-
Power supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Motor:
-
DC24V
-
Certificate:
-
CE
-
Gear type:
-
Worm gear
-
Each per leaf max width:
-
4 meters
-
Each per leaf Max gate weight:
-
500kgs
-
Motor speed:
-
2600rl/min
-
Output torque:
-
2500N.m
-
Motor power:
-
100w
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Type:
-
Linear Actuator Swing Gate Opener
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSGO-330K
-
Temperature:
-
-45℃~+65℃
-
Power supply:
-
AC220V±10V 50/60HZ,AC110V±10V, 60Hz
-
Motor:
-
DC24V
-
Certificate:
-
CE
-
Gear type:
-
Worm gear
-
Each per leaf max width:
-
4 meters
-
Each per leaf Max gate weight:
-
500kgs
-
Motor speed:
-
2600rl/min
-
Output torque:
-
2500N.m
-
Motor power:
-
100w
Product Description
1.DC24V each per leaf max weight is 500kgs Swing Gate opener .
2.Stable power is its biggest feature.
3.Large swing gate opener motor, powerful, full function, no need to doregular maintenance,very stable and reliable operation.
2.Stable power is its biggest feature.
3.Large swing gate opener motor, powerful, full function, no need to doregular maintenance,very stable and reliable operation.
4.Soft Start And Stop Electric Automatic Swing Gate Opener.
PRODUCT INTRODUCTION
1.Drived by thread pole.
2.Auto-shuttering back the door against touching, Soft start and soft stop.
3.it Can chose one or two gates to open or close.
4. ln the event of a power failure, the clutch can be released and manually opened.
PRODUCT INTRODUCTION
1.Drived by thread pole.
2.Auto-shuttering back the door against touching, Soft start and soft stop.
3.it Can chose one or two gates to open or close.
4. ln the event of a power failure, the clutch can be released and manually opened.

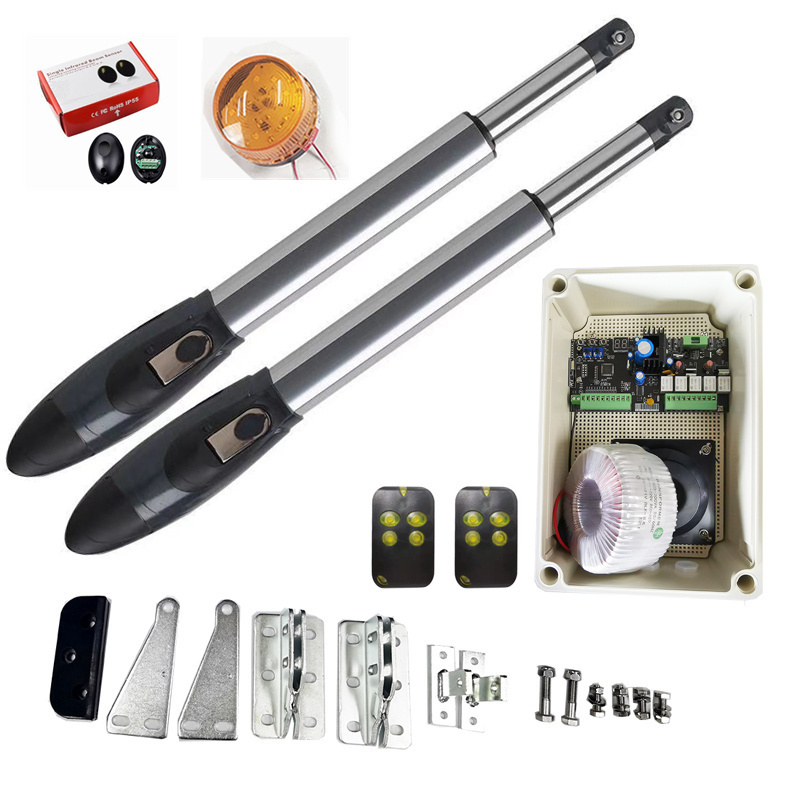

The Standart Packing List
2* Swing gate motor;
2* remote keys;
2* manual keys;
1*control board ;
1*box
some Hardware fittings for installation.
2* Swing gate motor;
2* remote keys;
2* manual keys;
1*control board ;
1*box
some Hardware fittings for installation.
Specification
Electric Automatic Gate Opener Motor Actuator curve arm motor folder gate opener for heavy duty door
|
Brand Name
|
Chisung
|
|
Model Number
|
CSSGO-330K
|
|
Product Name
|
Electric 24 V Dc Motor Automatic Swing Gate Opener
|
|
Motor
|
DC 24V Motors
|
|
Max. Per.Gate Leaf Weight
|
500kg
|
|
Motor Power
|
100W
|
|
per gate leaf opening time
|
18s
|
|
Output Torque
|
2500N.M
|
|
Input voltage
|
DC24V
|
|
Motor speed
|
2600r/min
|
|
Max. Per Gate Leaf Width
|
4m
|
|
Noise
|
<=56dB
|
|
Gear type
|
Worm gear
|
|
Operating Temperature
|
-45℃~+65℃
|
|
Relative Humidity
|
≤95%, No Condensation
|
|
Protection class
|
IP54
|
|
Application
|
home automation
|
|
limit switch
|
with limit switch,
|
|
Door opening angle
|
90°,100°,110°,120°
|
Details Images
Packing & Delivery
A hard cardboard box with a string to tie it down.Professional packaging.
If you need custom carton packing, very welcome.
If you need custom carton packing, very welcome.
1、Comply with Europe safety design DC 24V low voltage motor that, compatible with back up power supply.
2、Copper made worm gear drive design ensures the motor longer working light and extremely quiet.
3、Super quick manually release with secure
customized key in case of power failure.
4、Soft start and slow stop.
5、Adjust opening /closing interval time of double gate leaves.
6、Adjust opening /closing interval time of double gate leaves.
7、Auto-stop if any obstacles detected during operation.
8、Built-in max motor running time adjustable for multiple safety protection.
9、Separately adjust the force of double gate leaves.
10、Single leaf or double leaves operation.
11、Easy installation and low maintenance.
12、12 months guarantee;lifelong post sales service.
FAQ
1. Are you manufacturer or Trade Company?
We are professional and leading gate opener manufacturer, Our gate motors technology originates from 1991.
We have more than 30 models different gate motors .
2. Can I order only some parts of the gate opener ?
Yes, we supply motor, control panel , remote controller , electric lock etc ,they could be sold separately .
3. What is material this product made of ?
It is die-cast aluminum housing ,gear is copper ,stainless telescopic rod ,the motor wires is copper .
4.Can it be used outside ?
Yes , our dual swing gate opener could be used inside and outside of gate
5.What is the frequncy of your remote control ?
It is 433.92Hz .
6.What is the longest time for opening and closing the gates ?
It is about 12s. It could be set up depending on your demand .
7.Can the motor open and close slowly?
Yes , Our swing gate opener could be set open/close slowly , it is soft start and soft closed .
8.What voltage can the motor use ?
We have AC220V, AC110V,DC24V motors for you choose .
CSSGO-05 gate opener according to different requirements, there are four models available, AC ordinary, , AC extra-long model,DC ordinary, DC extra-long model,
9.. What terms of payment you use?
T/T, L/C ,Western Union, Alibaba Assurance Trade Order ,Paypal
10.What's you warranty?
One year and life time technology suppport .
We are professional and leading gate opener manufacturer, Our gate motors technology originates from 1991.
We have more than 30 models different gate motors .
2. Can I order only some parts of the gate opener ?
Yes, we supply motor, control panel , remote controller , electric lock etc ,they could be sold separately .
3. What is material this product made of ?
It is die-cast aluminum housing ,gear is copper ,stainless telescopic rod ,the motor wires is copper .
4.Can it be used outside ?
Yes , our dual swing gate opener could be used inside and outside of gate
5.What is the frequncy of your remote control ?
It is 433.92Hz .
6.What is the longest time for opening and closing the gates ?
It is about 12s. It could be set up depending on your demand .
7.Can the motor open and close slowly?
Yes , Our swing gate opener could be set open/close slowly , it is soft start and soft closed .
8.What voltage can the motor use ?
We have AC220V, AC110V,DC24V motors for you choose .
CSSGO-05 gate opener according to different requirements, there are four models available, AC ordinary, , AC extra-long model,DC ordinary, DC extra-long model,
9.. What terms of payment you use?
T/T, L/C ,Western Union, Alibaba Assurance Trade Order ,Paypal
10.What's you warranty?
One year and life time technology suppport .
