Quick Details
-
Panel Size:
-
8x8cm,16x16cm,8x32cm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SJ-8X8/8X32/16X16 apa102c
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
10mm
-
Name:
-
3D LED light Matrix apa102c flexible screen panel 256leds
-
LED chip:
-
APA102C/SK9822
-
led quantity:
-
64leds/256leds
-
pcb color:
-
black pcb
-
IP rate::
-
IP20
-
LED Signal::
-
SPI
-
warranty::
-
2 years
Quick Details
-
Application:
-
screen
-
Brand Name:
-
shiji Lighting
-
Color:
-
full color
-
Panel Size:
-
8x8cm,16x16cm,8x32cm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SJ-8X8/8X32/16X16 apa102c
-
Usage:
-
Indoor
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
10mm
-
Name:
-
3D LED light Matrix apa102c flexible screen panel 256leds
-
LED chip:
-
APA102C/SK9822
-
led quantity:
-
64leds/256leds
-
pcb color:
-
black pcb
-
IP rate::
-
IP20
-
LED Signal::
-
SPI
-
warranty::
-
2 years

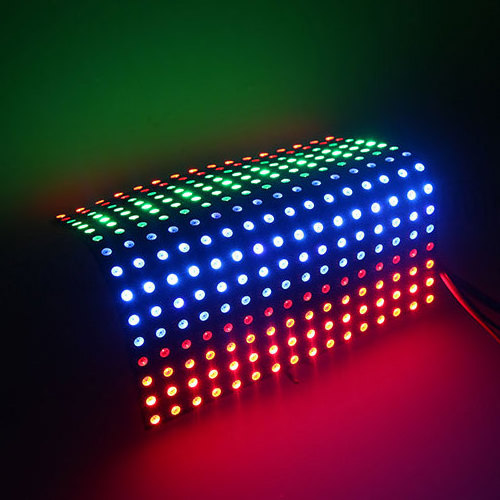

3D LED light Matrix apa102c flexible screen panel 256leds
Details:
1. Individually addressable RGB LEDs (8*32 LEDs, 8 x 8LEDS, 16 x 16 LEDs) APA102C/SK9822
2. 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
3. Additional color-independent brightness control (5-bit PWM ); 32 brightness steps per pixel
4. SPI control interface
5. 5 V operating voltage
6. Each LED Matrix draws approximately 8A at full brightness
7. 320 mm width (32 LEDs) or 80 mm width (8LEDs) and 160mm (16 LEDs) Pitch : P10mm
8. Flexible,bendable IP20 rating
9. Black pcb color
10. Power/data connectors on both strip ends for easy chaining,and add 2 more extra wire for GND and V+
16cm x 16cm APA102C flexible led matrix pcb:
8 x 32 cm apa102c led matrix:
Similiar products:
| Product Name | SJ-8x8APA102C | SJ-8 X 32 APA102C | SJ-16 X 16 APA102C |
| LED type | SMD5050 Grade A (top quality) | SMD5050 Grade A (top quality) | SMD5050 Grade A (top quality) |
| Pixel Quantity | 64pixels /PCS | 256pixels/pcs | 256pixels/pcs |
| LED Power Consumption | 19.2W(max) | 61.44W(max) | 61.44W(max) |
| Input Voltage | DC5V | DC5V | DC5V |
| Color | Changeable, RGB colorful | full color | full color |
| Storage Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Operating Temperature | -10°C ~ 40°C | -10°C ~ 40°C | -10°C ~ 40°C |
| IC chip | APA102C | APA102C | APA102C |
| Average lifespan | 50000 hours | 50000 hours | 50000 hours |
| Dimention | 8x8cm | 8 X 32CM | 16 X 16 CM |
| Waterproof rate | IP20 | IP20 | IP20 |
| Warranty | 2 years | 2 years | 2 years |
| Certificate | CE & RoHs | CE & RoHs | CE & RoHs |
| Brand | SHIJI LIGHTING | SHIJI LIGHTING | SHIJI LIGHTING |
Related products:
8 x 8 ws2812b led matrix:
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.
Services:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcomed
4.Exclusive and unique solution can provide to customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
Warranty :
1. All products we sell are in good quality and have been tested before they are shipped out
2. We offer 2 years Warranty
Certification :CE&Rohs
Q1. Can I have a sample order for led light?
A:
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: N
eed about 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A:
Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A:
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
