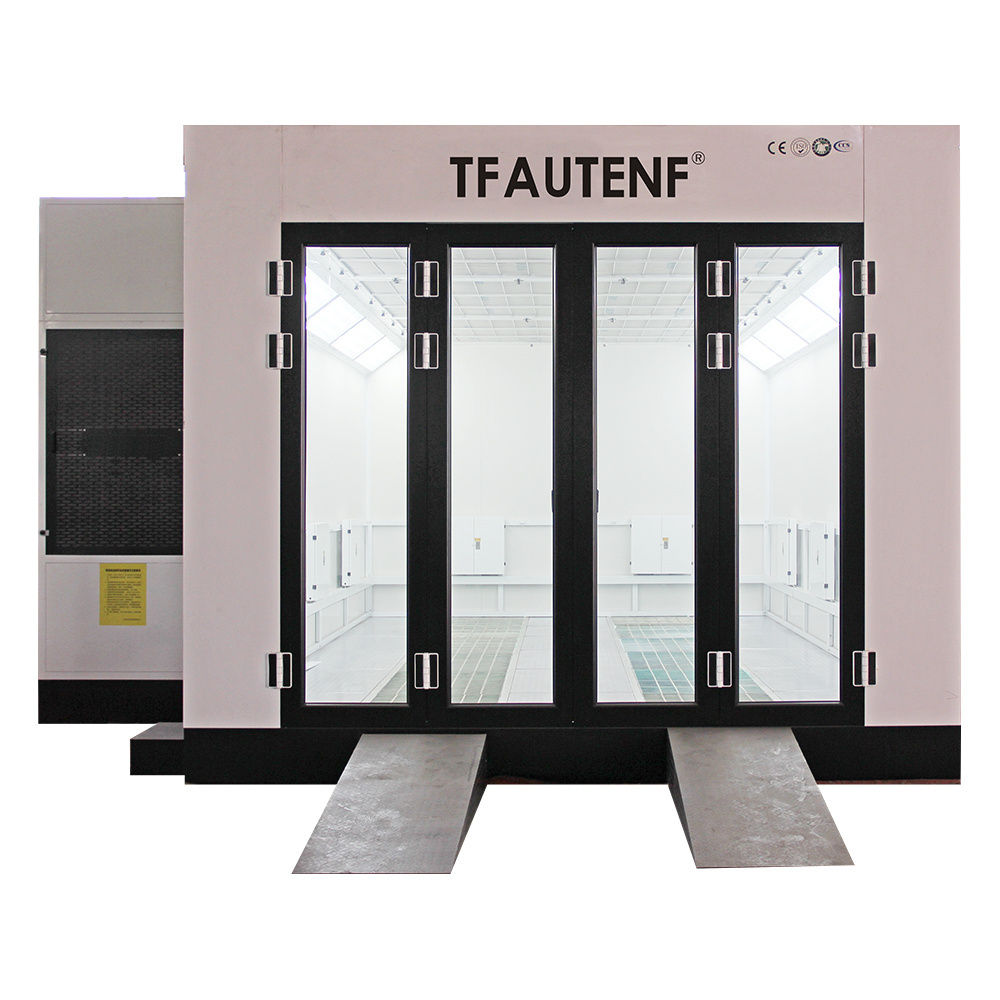

Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting
Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting

Infrared lamp heating CE customized environmental down draft spray booth oven car painting booth for cars body spray painting

FOB Reference Price: Get Latest Price
≥1 Sets
US $6900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380v/3phase/50hz
Disc Dia.:
spray booth car painting
No Load Speed:
0.25-0.35m/s
Place of Origin:
Shandong, China
Brand Name:
TFAUTENF
Model Number:
TF-ES4
Warranty:
24months
Certification:
ce
Color:
grey
Size:
customized
Wall Panel:
50mm/75mm EPS wall panel
Fans kind:
CE Approved Centrifugal Fans
Lighting System:
LED Light
Usage:
Car Baking Spray Paint Booth
Heating System:
Electric Heating
Filters:
pre-filter, ceiling filter, floor filter
MOQ:
1

Quick Details

Power:
33KW
External Size:
7000*5350*3400mm
Internal Size:
6900*3900*2650mm
Voltage:
380v/3phase/50hz
Disc Dia.:
spray booth car painting
No Load Speed:
0.25-0.35m/s
Place of Origin:
Shandong, China
Brand Name:
TFAUTENF
Model Number:
TF-ES4
Warranty:
24months
Certification:
ce
Color:
grey
Size:
customized
Wall Panel:
50mm/75mm EPS wall panel
Fans kind:
CE Approved Centrifugal Fans
Lighting System:
LED Light
Usage:
Car Baking Spray Paint Booth
Heating System:
Electric Heating
Filters:
pre-filter, ceiling filter, floor filter
MOQ:
1
spray booth oven car painting for car body repair
Product Description
Model:
Model:
TF-ES4
Parameter
Outside size:
7000*5350*3400mm(L×W×H)
Inside size:
Inside Dimension:
6900*3900*2650mm(L×W×H)
Entrance door:
Outside Dimension:
3 folds door , 3000×2600mm ,it is bending steel without cover frame. This type is very strong and beautiful . Also equipped with Handle & Lock.
Personal Door:
1fold ,650×1800mm(W×H). Equipped with Handle & Anti-Explosion Lock.
Cabin system
Wall Panels
-High quality double construction insulation 50mm EPS panel, 0.426mm thick steel, fire proof and heat-insulation. -Galvanized
steel roof panel .
Basement
- Galvanized steel assemble,Full metal foundation, height is 300mm .
- Five rows flat steel Grilles (galvanized) /custmozied
- 2 pieces of Ramps, each size 900×2000mm (W×L),diamond plate construction.
Lighting system:
Lighting System
-LED Ceiling lights:8 units×3pieces =24pieces ×16W
-LED  Side lights: 4 units × 4 pieces =16pieces ×16W
Generator Setting Type:
Generator Setting Type
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Air duct*2m long*1unit, -Elbow:90°*1 unit
Ventilation system
Inlet Fan:
2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.
Exhaust Fan:
1×5.5KW YDW double-intake centrifugal fans, total air capacity:16000m³/h.
Heating system:
Heating System:
-10 units high infrared curing lamps for heating, 3 lamps/unit, each lamp 1KW. -Total power: 30KW 15-20minutes (from20 to 80º C)
under baking status, max baking temperature is 80° C.
Filter system :
Filter System:
-The primary filter can capture granules larger than 10μm , filtering rate > 83%.
-Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.
- Floor filter:Multi-layer fiberglass filter,filtering rate>70%
Control system:
Control System:
Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop .
Voltage:
Voltage:
220V/380V/415V~
car spray booth/spray booth/paint oven
customer feedback and exhibition
Detailed Images
Packing&Shipping
Related Products
Company Introduction
Yantai AUTENF Automobile Services Co., Ltd. is professional manufacturer of auto repair & maintenance equipment with more than 10
years production experience. Our products are mainly used in 4S shops, garages, workshops, repair factories, and so on.
Our product range includes:
-- 3.5 to 10 tons two post car lift for passenger cars and light trucks;
-- 4.0 to 20 tons four post car lift for passenger cars and light trucks;
-- 22 to 45 tons four/six column lift for heavy duty commercial vehicles;
-- 5.2 to 14 m auto frame repair bench for passenger cars to commercial vehicles;
-- 7.0 to 15 m auto spray booth for passenger cars to commercial vehicles;
-- tire repair equipment, e.g. tire changer, wheel balancer etc.;
-- 3D alignment equipment;
-- other accessories;
We sincerely hope to cooperate with you in future.
