ezcap328 QUADA Live Switch 4 HDMI input Video Capture Streaming Broadcasting Station Video Switch ATEM Mini switchers

ezcap328 QUADA Live Switch 4 Channel HDMI Video Capture Card Live Streaming Broadcasting Station Switch with Multi Buttons

• Multi Camera Live Production

  ezcap328 QUADA Live Switch makes easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ezcap QUADA Live Switch and you can switch live up to 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The  ezcap QUADA Live Switchallows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! ezcap328 QUADA Live Switch has USB 3.1 Type-C output that works like a webcam so you can use any streaming software.



• Fast Video Production with Live Streaming

  Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ezcap QUADA Live Switch works with any streaming software to popular social media platforms! With up to 4 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more.

• Self Control Broadcast Quality Switch

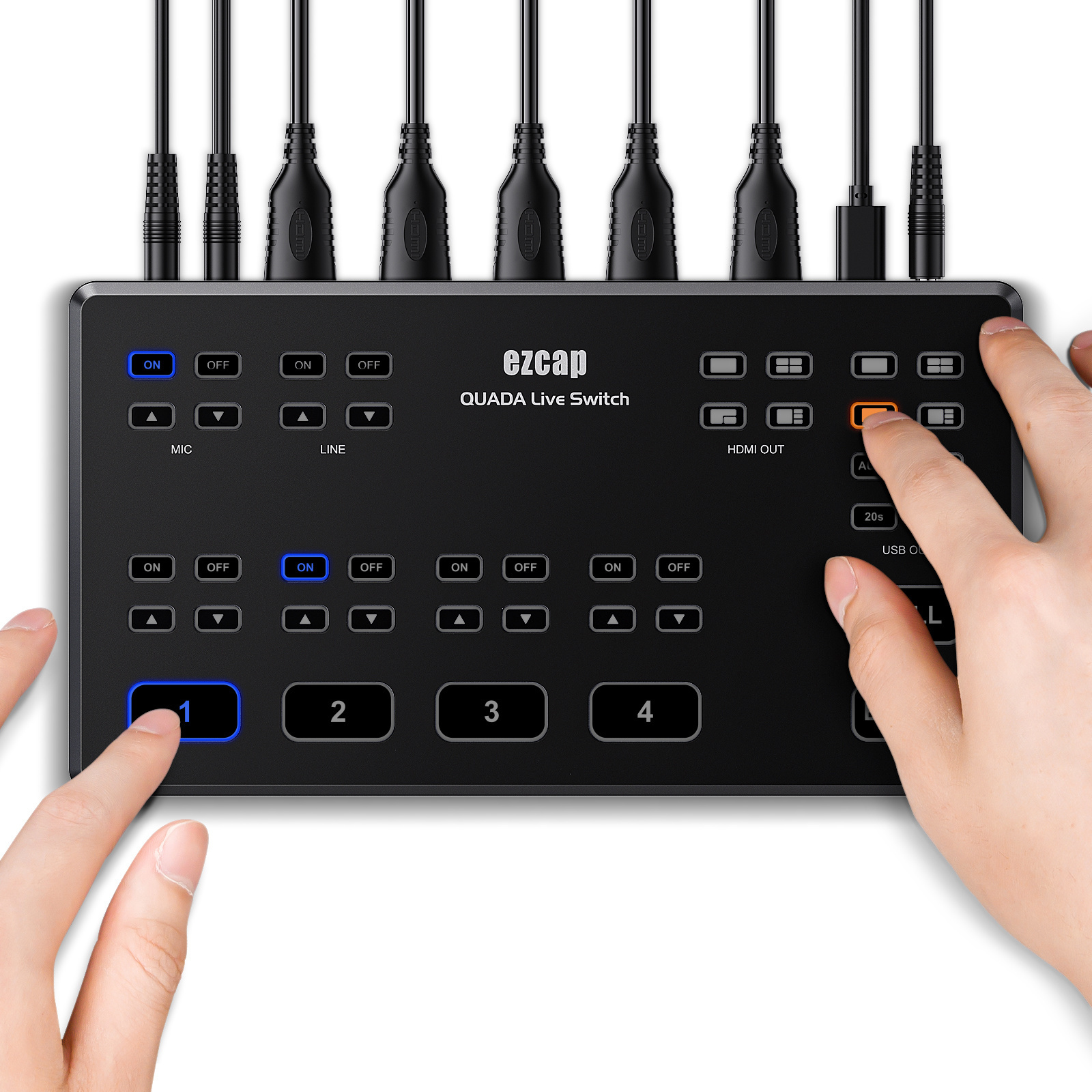

  ezcap QUADA Live Switch’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing!  On the rear panel there are HDMI connections for cameras or computers, extra microphone and mixer inputs, USB for webcam out plus an HDMI output for program video.



• Fast to Learn, Easy to Use



• Connect up to 4 Independent Cameras

  With 4 HDMI inputs, you can connect multiple cameras for different views. Video cameras with HDMI outputs are better quality than simple webcams as they use higher quality lenses and have better low light sensitivity. All video sources will re-sync to the switcher if they operate at different video standards so you don't have to worry about connecting video devices as they all just work! Cameras with HDMI often support interchangeable lenses so you can change to wide angle lenses for wide shots and zoom lenses for close ups. Imagine taking advantage of the low light capability of better cameras for theater production, weddings, school concerts.



• USB Webcam Output

• Work with Microphone and Mixer

  With two independent 3.5mm stereo audio inputs, you can connect lapel microphone, you can even connect a music player to generate introduction music after the live stream commences but before the program starts. All audio inputs to ezcap QUADA Live Switch include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. ezcap QUADA Live Switch features audio mixer with all HDMI inputs and both microphone and line in inputs are all connected to the audio mixer so you can live mix from all audio sources. The ezcap QUADA Live Switch also includes a headphone output.

• Connections

• SPECIFICATIONS

  Interface: USB 3.1 Gen1, USB Type-C
  Video Input: HDMI x 4
  Audio Input: HDMI embedded x 4, 3.5mm 3-pole TRS line input, 3.5mm 4-pole CTIA microphone input.
  Video Output: HDMI
  Audio Output: HDMI embedded, 3.5mm 4-pole CTIA earphone output.
  User Interface: Switch and control buttons and indicators.
  Resolution: 480p60, 576p50, 720p50/p60, 1080i50/i60, 1080p30/p50/p60.
  USB Output Format: NV12, YUY2, RGB
  Power Supply: DC 5V2A
  Dimensions: 240(L) x 129(W) x 35(H) mm
  Weight: 450g

  FEATURES

  - Connect up to 4 cameras or camcorders.
  - USB-C outputs as an USB webcam for all streaming software.
  - Buttons are easy to use for selecting sources, multi view effects, switching and mixing audio.
