Quick Details
-
Brand Name:
-
GDHM
-
Model Number:
-
HM2670
-
Product name:
-
withstand voltage tester
-
Testing voltage:
-
AC:0.5kV~5kV ±5%
-
Leakage current setting value:
-
2.AC:0.2~20(mA) adjustable
-
Leakage current setting accuracy:
-
±5%
-
Output power:
-
100VA
-
Output waveform:
-
50Hz Sine waveform
-
Timing:
-
6.1~99(s)±5% manual adjustable
-
Power source:
-
AC:220V±10% 50Hz±2Hz
-
Power loss:
-
quiescent power drain<30VA
-
Environment:
-
RH≤75%RH
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
GDHM
-
Model Number:
-
HM2670
-
Product name:
-
withstand voltage tester
-
Testing voltage:
-
AC:0.5kV~5kV ±5%
-
Leakage current setting value:
-
2.AC:0.2~20(mA) adjustable
-
Leakage current setting accuracy:
-
±5%
-
Output power:
-
100VA
-
Output waveform:
-
50Hz Sine waveform
-
Timing:
-
6.1~99(s)±5% manual adjustable
-
Power source:
-
AC:220V±10% 50Hz±2Hz
-
Power loss:
-
quiescent power drain<30VA
-
Environment:
-
RH≤75%RH
Brief Introduction

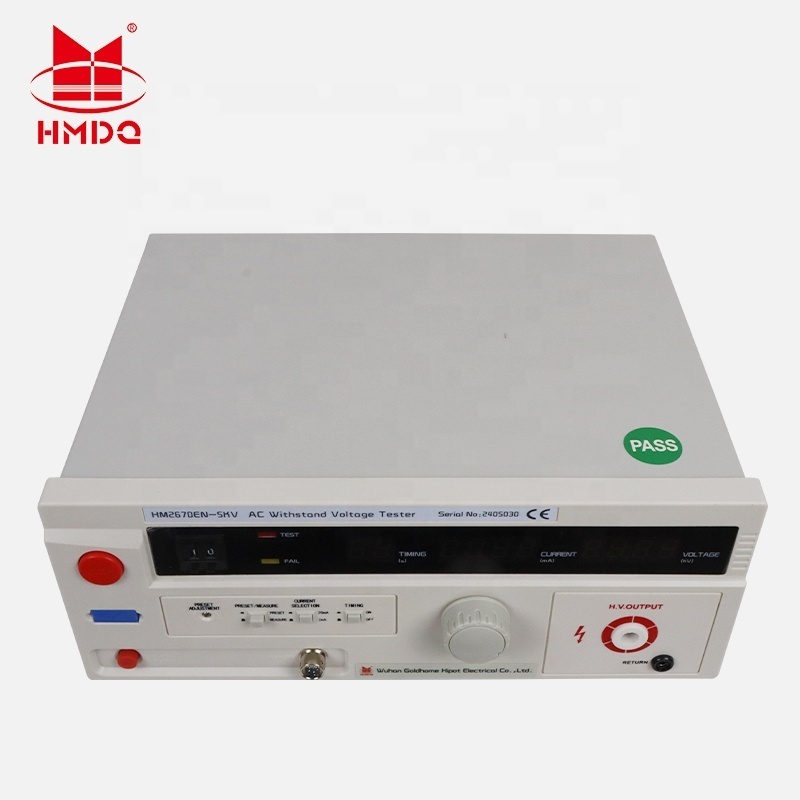

MS2670EN type withstand voltage tester is an ac high voltage safety measurement instrument, widely used in electronic instruments, electronic equipment, electronic components, electrical equipment, bakelite appliances, rubber, high voltage cable and motor withstand voltage test, also applicable to household appliances withstand voltage test.
Parameter
1.Testing voltage:AC:0.5kV～5kV ±5%
2.Leakage current setting value:AC：0.2～20(mA) adjustable
3.Leakage current setting accuracy:±5%
4.Output power:100VA.
5.Output waveform: 50Hz Sine waveform
6.Timing:1～99（s）±5% manual∞ adjustable.
7.Power source:AC：220V±10% 50Hz±2Hz。
8.Environment:RH≤75%RH, Temperature :0℃～40℃。
There is no strong electromagnetic interference source around, no large amount of dust and corrosive gas, good ventilation.
9.Power loss: quiescent power drain＜30VA
|
Product Name
|
Remark
|
|
Withstand Voltage Tetser
|
Output voltage and current can be customized !
|
