Quick Details
-
Inverter Efficiency:
-
>95%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
UPower-Hi Series
-
Input Voltage:
-
24/48V
-
Output Voltage:
-
110-240V
-
Output Current:
-
10-50A
-
Output Frequency:
-
50/60Hz
-
Size:
-
642.5x381.6x149mm
-
Certificate:
-
CE/IEC/FCC, CE/IEC/FCC
-
Warranty:
-
3 YEAR
-
Weight:
-
19KG
-
Product name:
-

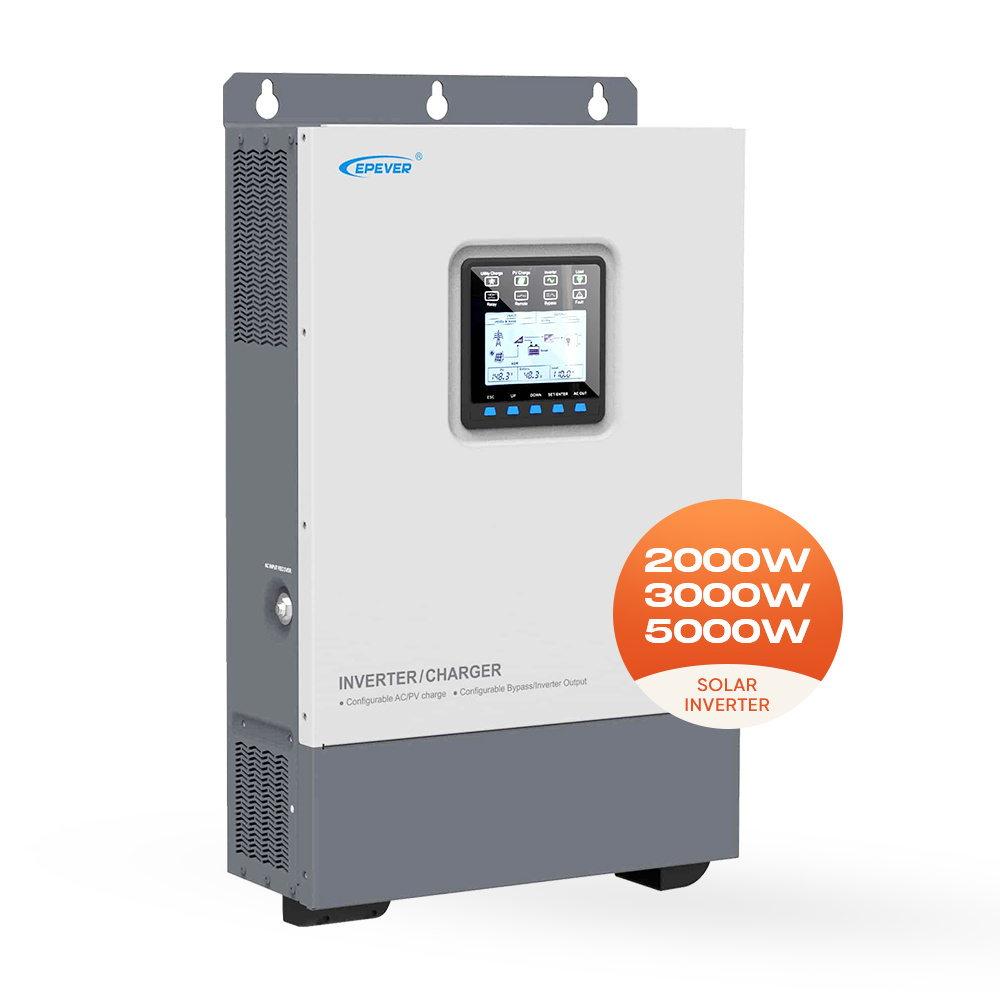

Epever UPower Hi Off Grid Inverter
-
PV Input Power:
-
2500-4000W
-
MPPT Voltage Range:
-
80-400V
-
Battery type:
-
Sealed/FLood/GEL/LFP/Ternary
-
Battery Voltage:
-
24V/48V DC
-
Output Voltage Waveform:
-
Pure Sine Wave
-
Working Temperature Range:
-
-15°C ~ 55°C
-
No-load Loss:
-
<25W
-
Dimensions:
-
642.5x381.6x149mm
-
Weight (KG):
-
19
Quick Details
-
Output Power:
-
3KW, 2KW, 4KW, 3.5KW, 5.5KW
-
Output Type:
-
Single
-
Type:
-
DC/DC Converters, DC/AC Inverters, AC to AC
-
Inverter Efficiency:
-
>95%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
UPower-Hi Series
-
Input Voltage:
-
24/48V
-
Output Voltage:
-
110-240V
-
Output Current:
-
10-50A
-
Output Frequency:
-
50/60Hz
-
Size:
-
642.5x381.6x149mm
-
Certificate:
-
CE/IEC/FCC, CE/IEC/FCC
-
Warranty:
-
3 YEAR
-
Weight:
-
19KG
-
Product name:
-
Epever UPower Hi Off Grid Inverter
-
PV Input Power:
-
2500-4000W
-
MPPT Voltage Range:
-
80-400V
-
Battery type:
-
Sealed/FLood/GEL/LFP/Ternary
-
Battery Voltage:
-
24V/48V DC
-
Output Voltage Waveform:
-
Pure Sine Wave
-
Working Temperature Range:
-
-15°C ~ 55°C
-
No-load Loss:
-
<25W
-
Dimensions:
-
642.5x381.6x149mm
-
Weight (KG):
-
19
Product Description
Specification
|
Item
|
UP2000-HM6022
|
UP3000-HM10022
|
UP3000-HM5042
|
UP5000-HM8042
|
||||
|
Rated battery voltage
|
24VDC
|
|
48VDC
|
|
||||
|
Battery input voltage
|
21.6~32VDC
|
|
43.2~64VDC
|
|
||||
|
Max. battery charging current
|
60A
|
100A
|
50A
|
80A
|
||||
|
Inverter output
|
|
|
|
|
||||
|
Continuous output power
|
2000W
|
3000W
|
3000W
|
5000W
|
||||
|
Max. surge power(3S)
|
4000W
|
6000W
|
6000W
|
8000W
|
||||
|
Output voltage range
|
220VAC(-6%~+3%), 230VAC(-10%~+3%)
|
|
|
|
||||
|
Output frequency
|
50/60±0.2%
|
|
|
|
||||
|
Output wave
|
Pure Sine Wave
|
|
|
|
||||
|
Load power factor
|
0.2-1(Load power ≤ Continuous output power)
|
|
|
|
||||
|
Distortion THD
|
THD≤3%(Resistive load)
|
|
|
|
||||
|
80% rated output efficiency
|
92%
|
92%
|
92%
|
92%
|
||||
|
Max. Rated output efficiency
|
91%
|
91%
|
90%
|
91%
|
||||
|
Max. output efficiency
|
93%
|
93%
|
93%
|
93%
|
||||
|
Switch time
|
10ms(Switch from the utility output to the inverter output), 15ms(Switch from the inverter output to the utility output)
|
|
|
|
||||
|
Utility charging
|
|
|
|
|
||||
|
Utility input voltage
|
176VAC~264VAC (Default), 90VAC~280VAC(Programmable)
|
|
|
|
||||
|
Utility input frequency
|
40~65Hz
|
|
|
|
||||
|
Max. utility charge current
|
60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A）
|
80A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 40A）
|
40A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 20A）
|
60A(When the Utility input voltage is 90VAC~180VAC, the Max. utility charge current is 30A）
|
||||
|
Solar charging
|
|
|
|
|
||||
|
Max. PV open circuit voltage
|
450V(At minimum operating environment temperature)
395V(At 25℃ environment temperature)
|
|
|
500V(At minimum operating environment temperature)
440V(At 25℃ environment temperature)
|
||||
|
MPPT voltage range
|
80~350V
|
|
|
120~400V
|
||||
|
Max. PV input power
|
2500W
|
4000W
|
4000W
|
4000W
|
||||
|
|
(Note: For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)
|
|
|
|
||||
|
Max. PV charging power
|
1725W
|
2875W
|
2875W
|
4000W
|
||||
|
Max. PV charging current
|
60A
|
100A
|
50A
|
80A
|
||||
|
Equalize charging voltage
|
29.2V(AGM default)
|
|
58.4V(AGM default)
|
|
||||
|
Boost charging voltage
|
28.8V(AGM default)
|
|
57.6V(AGM default)
|
|
||||
|
Float charging voltage
|
27.6V(AGM default)
|
|
55.2V(AGM default)
|
|
||||
|
Low voltage disconnect voltage
|
21.6V(AGM default)
|
|
43.2V(AGM default)
|
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
||||
|
Temp. compensate coefficient
|
-3mV/℃/2V(Default)
|
|
|
|
||||
|
General
|
|
|
|
|
||||
|
Surge current
|
50A
|
60A
|
56A
|
95A
|
||||
|
Zero load consumption
|
<1.8A
|
|
<1.2A
|
|
||||
|
|
(without PV and utility connection, turn on the load output)
|
|
|
|
||||
|
Standby current
|
<1.2A
|
|
<0.7A
|
|
||||
|
|
(without PV and utility connection, turn off the load output)
|
|
|
|
||||
|
Mechanical Parameters
|
|
|
|
|
||||
|
Dimension(H x W x D)
|
607.5x381.6x127mm
|
642.5x381.6x149
mm |
607.5x381.6x149mm
|
642.5x381.6x149mm
|
||||
|
Mounting size
|
585*300mm
|
620*300mm
|
585*300mm
|
620*300mm
|
||||
|
Mounting hole size
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
||||
|
Net Weight
|
15kg
|
19kg
|
18kg
|
19kg
|
||||
|
Enclosure
|
IP30
|
|
|
|
||||
|
Relative humidity
|
< 95% (N.C.)
|
|
|
|
||||
|
Environment temperature
|
-20℃~50℃
|
|
|
|
||||
|
Item
|
UP2000-HM6021
|
UP3000-HM10021
|
UP3000-HM5041
|
UP3000-HM8041
|
||||
|
Rated battery voltage
|
24VDC
|
|
48VDC
|
|
||||
|
Battery input voltage
|
21.6~32VDC
|
|
43.2~64VDC
|
|
||||
|
Max. battery charging current
|
60A
|
100A
|
50A
|
80A
|
||||
|
Inverter output
|
|
|
|
|
||||
|
Continuous output power
|
2000W
|
3000W
|
3000W
|
3000W
|
||||
|
Max. surge power(3S)
|
4000W
|
6000W
|
6000W
|
6000W
|
||||
|
Output voltage range
|
110VAC(-3%~+3%), 120VAC(-10%~+3%)
|
|
|
|
||||
|
Output frequency
|
50/60±0.2%
|
|
|
|
||||
|
Output wave
|
Pure Sine Wave
|
|
|
|
||||
|
Load power factor
|
0.2-1(Load power ≤ Continuous output power)
|
|
|
|
||||
|
Distortion THD
|
THD≤5%(Resistive load)
|
|
|
|
||||
|
80% rated output efficiency
|
89%
|
90%
|
91%
|
91%
|
||||
|
Max. Rated output efficiency
|
88%
|
88%
|
90%
|
90%
|
||||
|
Max. output efficiency
|
90%
|
92%
|
92%
|
92%
|
||||
|
Switch time
|
10ms(Switch from the utility output to the inverter output), 15ms(Switch from the inverter output to the utility output)
|
|
|
|
||||
|
Utility charging
|
|
|
|
|
||||
|
Utility input voltage
|
88VAC~132VAC (Default), 80VAC~140VAC(Programmable)
|
|
|
|
||||
|
Utility input frequency
|
40~65Hz
|
|
|
|
||||
|
Max. utility charge current
|
60A
|
80A
|
40A
|
40A
|
||||
|
Solar charging
|
|
|
|
|
||||
|
Max. PV open circuit voltage
|
250V(At minimum operating environment temperature),
220V(At 25℃ environment temperature) |
|
|
|
||||
|
MPPT voltage range
|
60~200V
|
|
|
|
||||
|
Max. PV input power
|
2000W
|
3000W
|
3000W
|
4000W
|
||||
|
|
(Note: For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)
|
|
|
|
||||
|
Max. PV charging power
|
1725W
|
2875W
|
2875W
|
4000W
|
||||
|
Max. PV charging current
|
60A
|
100A
|
50A
|
80A
|
||||
|
Equalize charging voltage
|
29.2V(AGM default)
|
|
58.4V(AGM default)
|
|
||||
|
Boost charging voltage
|
28.8V(AGM default)
|
|
57.6V(AGM default)
|
|
||||
|
Float charging voltage
|
27.6V(AGM default)
|
|
55.2V(AGM default)
|
|
||||
|
Low voltage disconnect voltage
|
21.6V(AGM default)
|
|
43.2V(AGM default)
|
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
||||
|
Temp. compensate coefficient
|
-3mV/℃/2V(Default)
|
|
|
|
||||
|
General
|
|
|
|
|
||||
|
Surge current
|
50A
|
60A
|
56A
|
95A
|
||||
|
Zero load consumption
|
<1.6A
|
<1.6A
|
<1.2A
|
<0.8A
|
||||
|
|
(without PV and utility connection, turn on the load output)
|
|
|
|
||||
|
Standby current
|
<1.2A
|
<1.0A
|
<0.7A
|
<0.6A
|
||||
|
|
(without PV and utility connection, turn off the load output)
|
|
|
|
||||
|
Mechanical Parameters
|
|
|
|
|
||||
|
Dimension(H x W x D)
|
607.5x381.6x127mm
|
642.5x381.6x149
mm
|
642.5x381.6x149
mm
|
642.5x381.6x149mm
|
||||
|
Mounting size
|
585*300mm
|
620*300mm
|
620*300mm
|
620*300mm
|
||||
|
Mounting hole size
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
||||
|
Net Weight
|
15kg
|
19kg
|
19kg
|
19kg
|
||||
|
Enclosure
|
IP30
|
|
|
|
||||
|
Relative humidity
|
< 95% (N.C.)
|
|
|
|
||||
|
Environment temperature
|
-20℃~50℃
|
|
|
|
||||
