Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
zh626
-
Warranty:
-
5 Years
-
Name:
-
Truck Tyre Changer Equipment
-
Certification:
-
CE Certificate
-
Power supply:
-
220V/380V/110V
-
Usage:
-
Changing Truck Tires
-
NOISE LEVEL:
-
UNDER 70DB
-
PACKAGE:
-
Wooden Box
-
Function:
-
Changing Tire Tools
-
Using range:
-
4S Station/garage Store/according
-
Service:
-
24 hours online
-
Application:
-
Automotive Tire Repair
Quick Details
-
Motor Power:
-
0.75kw/1.1kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220V/400V/110V
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
zh626
-
Warranty:
-
5 Years
-
Name:
-
Truck Tyre Changer Equipment
-
Certification:
-
CE Certificate
-
Power supply:
-
220V/380V/110V
-
Usage:
-
Changing Truck Tires
-
NOISE LEVEL:
-
UNDER 70DB
-
PACKAGE:
-
Wooden Box
-
Function:
-
Changing Tire Tools
-
Using range:
-
4S Station/garage Store/according
-
Service:
-
24 hours online
-
Application:
-
Automotive Tire Repair

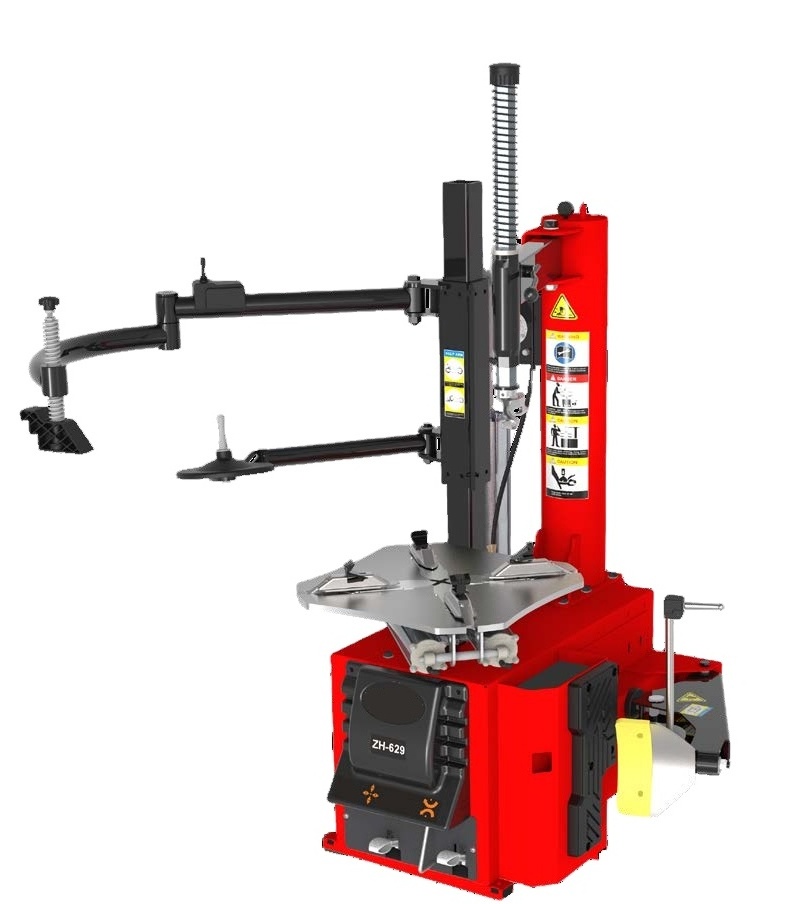

Products Description
Features
1. With tilt back and mounting head auto lifting. With pneumatic locking and lifting function.
2. Right helping arm system enlarge the working area. Pneumatic control arm can be adjusted freely.
Bead breaker is pneumatic controlled. Replace the traditional pedal system. More simple and convenient. Bead
3. breaker can be adjusted for further and close according to the gear. It successfully mounts and dismounts the smaller and bigger tire at the same equipment.
4. With wheel rolling plate, easier for rolling on the tire to save the labour and more safer to protect the rim.
5. With wheel lifting, reducing the work intensity. Less labour and time.
6. With precise processed and manufactured gear box, unique alloy manufactured mounting head and clamp makes the machine durable in use.
7. Φ75 small cylinder, hard anodized. Superior aluminium piston and sealing parts makes less resistance. Stronger clamping force and leakproofness.
8. Aluminium big cylinder. Forever no corrosion. Prolong the life for the big cylinder.
2. Right helping arm system enlarge the working area. Pneumatic control arm can be adjusted freely.
Bead breaker is pneumatic controlled. Replace the traditional pedal system. More simple and convenient. Bead
3. breaker can be adjusted for further and close according to the gear. It successfully mounts and dismounts the smaller and bigger tire at the same equipment.
4. With wheel rolling plate, easier for rolling on the tire to save the labour and more safer to protect the rim.
5. With wheel lifting, reducing the work intensity. Less labour and time.
6. With precise processed and manufactured gear box, unique alloy manufactured mounting head and clamp makes the machine durable in use.
7. Φ75 small cylinder, hard anodized. Superior aluminium piston and sealing parts makes less resistance. Stronger clamping force and leakproofness.
8. Aluminium big cylinder. Forever no corrosion. Prolong the life for the big cylinder.
|
Power supply
|
220V/400V/110V
|
|
Motor Power
|
1.1KW
|
|
Outside Clamping
|
10"~20"
|
|
Inside Clamping
|
12"~24"
|
|
Max. wheel diamete
|
41"(1040mm)
|
|
Max. wheel width
|
14"(355mm)
|
|
Operating Pressure
|
8-10bar
|
|
Bead-breaker force
|
2500kg
|
|
Packaging size
|
960*760*930mm
|
|
Weight
|
187/211kg
|
