Quick Details
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
1520*175*85mm
-
Weight (KG):
-
13100 kg
-
Product Name:
-

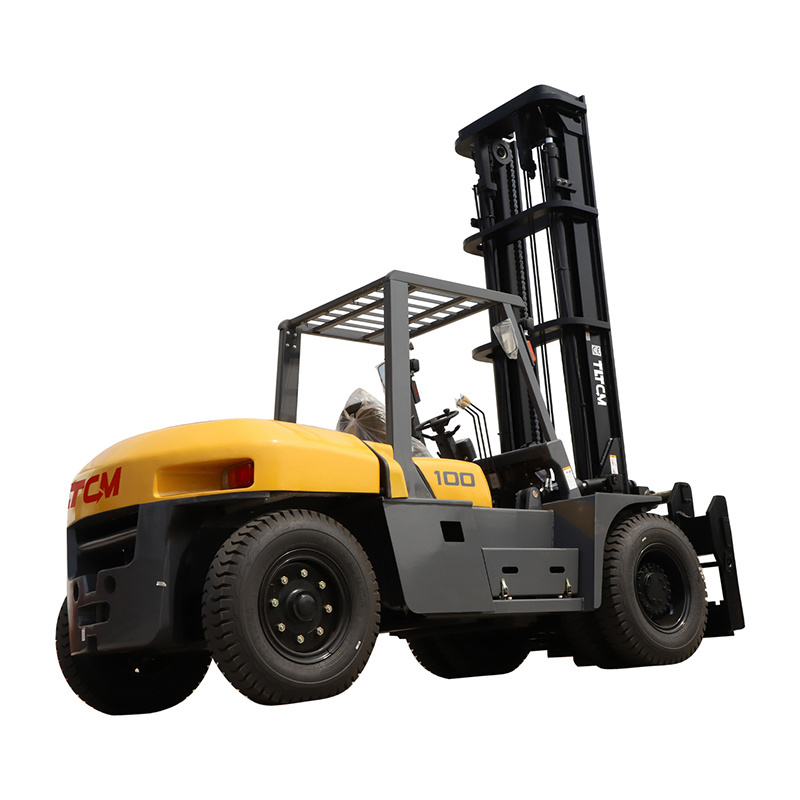

Diesel Forklift Truck
-
Type:
-
Diesel Foklift
-
Power type:
-
Fuel
-
Model:
-
FD100
-
Key words:
-
Folk Lift
-
Loading Capacity:
-
10ton
-
Mast:
-
2 Stage/3 Stage
-
Keywords:
-
Forlift
-
Color:
-
Costomized
-
Feature:
-
High Efficiency
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TLTCM
-
Fork Length:
-
1520mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
1520*175*85mm
-
Weight (KG):
-
13100 kg
-
Product Name:
-
Diesel Forklift Truck
-
Type:
-
Diesel Foklift
-
Power type:
-
Fuel
-
Model:
-
FD100
-
Key words:
-
Folk Lift
-
Loading Capacity:
-
10ton
-
Mast:
-
2 Stage/3 Stage
-
Keywords:
-
Forlift
-
Color:
-
Costomized
-
Feature:
-
High Efficiency
2023 china brand good quality forklift crane heavy forklifts 30 ton big diesel forklift with price list
High quality
1.Reasonable layout of hose and hard pipe, reduce oil pressure loss;
2.The mature and reliable engine provides plenty of power;
3.The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle;
4.The enhanced transmission system has stronger shock resistance and bump resistance.
High security
1.Wide vision mast provides a good front view, accurate disassembly of goods. The grille roof guard provides good upper visual field for drivers;
2.Standardized LED lamp, high brightness, long life, energy saving and environmental protection.
High comfort
1.Standard small diameter steering wheel, light control, reduce driver fatigue;
2The combined color instrument has strong human- -machine interaction and timely and accurately feedback the running state of vehicles;
3.Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
|
|||||||||||||||
| General | 1 | Model | FD100 | FD120 | |||||||||||
| 2 | Power Type | Diesel | Diesel | ||||||||||||
| 3 | Rated Capacity | kg | 10000 | 12000 | |||||||||||
| 4 | Load Centre | mm | 600 | 600 | |||||||||||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | 3000 | ||||||||||
| 6 | Fork Size | L×W×T | mm | 1520×175×85 | 1520×180×100 | ||||||||||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | ||||||||||
| 8 | Fork Overhang (Wheel center to fork face) | mm | 739 | 754 | |||||||||||
| 9 | Ground Clearance(Bottom of mast) | mm | 230 | 230 | |||||||||||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 4280 | 4685 | ||||||||||
| 11 | Overall Width | mm | 2170 | 2200 | |||||||||||
| 12 | Mast Lowered Height | mm | 2830 | 3080 | |||||||||||
| 13 | Mast Extended Height(With backrest) | mm | 4335 | 4500 | |||||||||||
| 14 | Overhead Guard Height | mm | 2510 | 2540 | |||||||||||
| 15 | Turning Radius (outside) | mm | 3970 | 4700 | |||||||||||
| Performance | 16 | Speed | Travel (Full load) | km/h | 30 | 30 | |||||||||
| 17 | Lifting (Full load) | mm/s | 270 | 270 | |||||||||||
| 18 | Max.Gradeability | % | 20 | 20 | |||||||||||
| Chassis | 19 | Tyre | Front | mm | 9.00-20-14PR | 11.00-20-16PR | |||||||||
| 20 | Rear | mm | 9.00-20-14PR | 9.00-20-14 | |||||||||||
| 21 | Wheelbase | mm | 2800 | 3200 | |||||||||||
| 22 | Self weight | kg | 13100 | 14500 | |||||||||||
| Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | (12/80) x 2 | |||||||||
| 24 | Engine | Model | 6BG1-QC02 | QSB4.5-C130 | |||||||||||
| 25 | Manufacture | ISUZU | CUMMINS | ||||||||||||
| 26 | Rated output/r.p.m. | kw | 82.4/2000 | 97/2200 | |||||||||||
| 27 | Rated torque/r.p.m. | N·m | 416/1600 | 622/1500 | |||||||||||
| 28 | No.of Cylinder | 6 | 6 | ||||||||||||
| 29 | Bore×Stroke | mm | 105×125 | 107×124 | |||||||||||
| 30 | Displacement | cc | 6494 | 4500 | |||||||||||
| 31 | Fuel Tank Capacity | L | 135 | 150 | |||||||||||
| 32 | Transmission | Type | Hydraulic | Hydraulic | |||||||||||
| 33 | Stage | FWD/RVS | 2/2 | 2/2 | |||||||||||
1.What is your advantage?
We are the largest professional construction machinery company here.
We have sufficient source of goods and guaranteed quality.Base on this, we are able to provide our clients with good condition machines at special price.
2. Quality Assurance
We provide all equipment main parts with six months assurance, such as the engine, transmission, and hydraulic pump.
If there is any problem happen in these parts, please inform us we will supply the related parts by air or sending our technical person to inspect and do the repair.
3.Can you satisfy my special requirement?
Definitely! We are direct manufacture and we can discuss the particable plan and procuce it as your request
4. How to guarantee customers get the goods smoothly after they pay ?
We had joined the trade assurance. you can place the order by trade assurance, and the deposit will given to Alibaba. if we don’t delivery products on time, the deposit will return to you.
5. How can customers make visit and checking in China ?
We arrange everything ready for your journey in China, welcome your happy visit!
